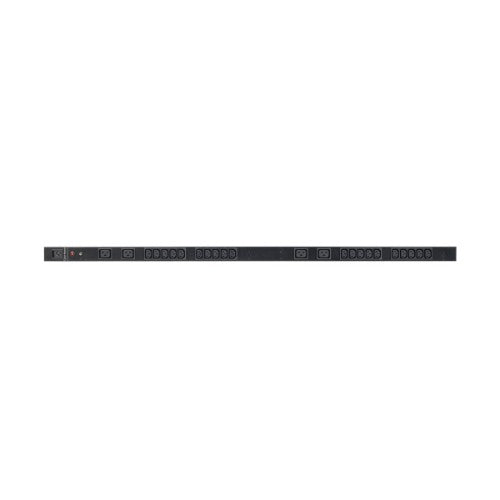

The CyberPower 24-outlet (24 Front) 0U vertical rack mount basic power distribution unit (PDU20BVHVIEC24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 24 IEC-320 (4-C19 and 20-C13) output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 200/230V AC - 50/60Hz
- 48" 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord

Design
PDU types	Basic
Mounting	Vertical
Type	Single-phase
Product colour	Black
Certification	UL60950
Rack capacity	0U
Housing material	Steel
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
Cable length	120.1" (3.05 m)
Certification	UL60950
Surge protection	Yes
Ergonomics
Cable length	120.1" (3.05 m)
Power
Nominal input voltage	200 - 240 V
Maximum current	16 A
Nominal output voltage	200 - 240 V
Power protection features	Overload
Surge protection	Yes
AC input frequency	50 / 60 Hz
Circuit breaker	Yes
Certificates
Certification	UL60950
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 45 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Weight & dimensions
Weight	5.95 lbs (2.7 kg)
Weight (imperial)	6 lbs
Dimensions (W x D x H) (imperial)	1.75 x 1.5 x 48"
Width	1.75" (44.5 mm)
Depth	1.5" (38.1 mm)
Height	48" (1219.2 mm)
Package width	2.76" (70.1 mm)
Package depth	6.02" (152.9 mm)
Package height	52.2" (1325.9 mm)
Package weight	13.2 lbs (6 kg)
Packaging data
Package width	2.76" (70.1 mm)
Package depth	6.02" (152.9 mm)
Package height	52.2" (1325.9 mm)
Package weight	13.2 lbs (6 kg)
Technical details
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	RoHS
Logistics data
Warranty period	2 year(s)
