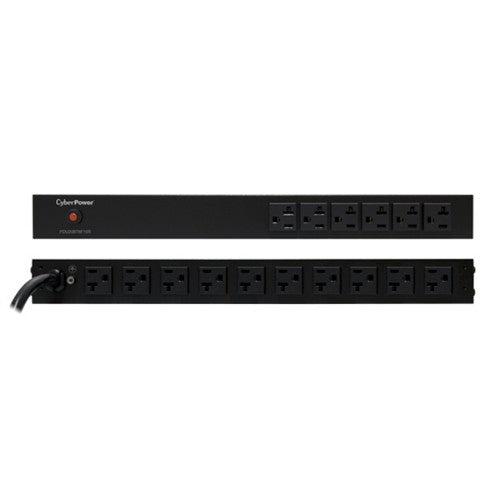

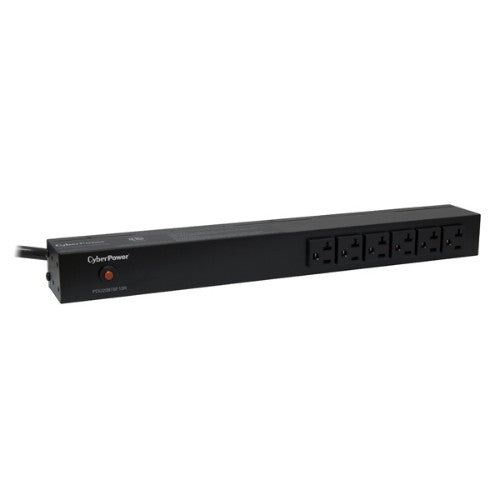

The CyberPower 16-outlet (6 Front and 10 Rear) rack mount basic power distribution unit (PDU20BT6F10R) provides 120V 20A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 16 NEMA 5-20R output receptacles (6 Front/10 Rear)
- Single NEMA L5-20P twist lock plug
- 20-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- 1U rack mount
- 15-ft. power cord
- 16 NEMA 5-20R output receptacles (6 Front/10 Rear)
- Single NEMA L5-20P twist lock plug
- 20-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- 1U rack mount
- 15-ft. power cord
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | UL1363 ETL, CSA C22.2 |
| Rack capacity | 1U |
| Ports & interfaces | |
| Power plug | NEMA L5-20P |
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Features | |
| Cable length | 179.9" (4.57 m) |
| Certification | UL1363 ETL, CSA C22.2 |
| Ergonomics | |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 120 V |
| Maximum current | 20 A |
| Nominal output voltage | 120 V |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Weight (imperial) | 5 lbs |
| Dimensions (W x D x H) (imperial) | 17.5 x 2.25 x 1.75" |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Compliance certificates | RoHS |
