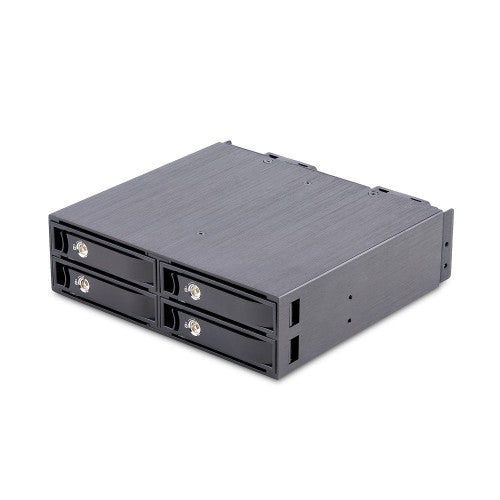

StarTech.com 4U2525-SAS-BACKPLANE drive bay panel 5.25" Storage drive tray Black
538.24 CAD
Skip to product information
Out of stock
StarTech.com 4U2525-SAS-BACKPLANE drive bay panel 5.25" Storage drive tray Black
Part number
4U2525-SAS-BACKPLANE
Sale price
538.24 CAD
Regular price
538.41 CAD
Taxes and shipping calculated at checkout.
Save
0.17 CAD
Off
0%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.057 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 4-BAY BACKPLANE: Add four U.2 (SFF-8639) NVMe drive bays to computer; Supports 7mm to 15mm 2.5" NVMe SSDs; Up to 32Gbps per drive with individual Mini-SAS SFF-8643 ports; Fits into a 5.25" bay; Hot swapping requires PCIe hot swap support from the host

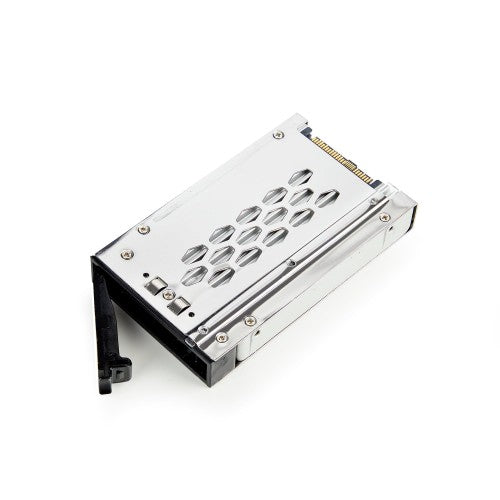

- SECURE DESIGN: Lockable drive trays/caddies (2x keys incl.) keep the drives safe while adding an extra layer of security, helping to prevent accidental hot-swaps; Aluminum body aids heat dissipation; Extra drive trays sold separately (SATSASTRX25)
- WELL VENTILATED: Quad U.2 mobile rack with four perforated drive trays/caddies, two rear blower fans and front air vents keep drives cool for optimal performance; Rear fan switch enables the adjustment of drive cooling fans between high and low settings
- WIDE COMPATIBILITY: Compatible with storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), and mdraid/mdadm (Linux); Requires no drivers or software and works with any operating system; Supports U.2 NVMe Drives only
- HASSLE-FREE SETUP: Includes 4x 2ft (61cm) Mini-SAS HD cables and uses a single SATA Power connector from the desktop/server power supply for a rapid installation; Drive and backplane mounting screws included; LEDs for individual drive status and activity
Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive trays
This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design
Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.
*Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented
The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup
This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
The StarTech.com Advantage
This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design
Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.
*Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented
The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup
This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
The StarTech.com Advantage
| Features | |
|---|---|
| Type | Storage drive tray |
| Size (imperial) | 5.25" |
| LED indicators | Yes |
| Number of cycles | 500 |
| Hot-swap | Yes |
| Noise level | 21.3 dB |
| Key lock | Yes |
| Supported storage drive heights | 7,9.5,12.5,15 mm |
| Airflow (imperial) | 2.47 cfm |
| Bearing type | Sleeve bearing |
| Number of fans | 2 fan(s) |
| Fan diameter | 1.38" (3.5 cm) |
| Data transfer rate | 32 Gbit/s |
| Product colour | Black |
| Material | Aluminum |
| Mean time between failures (MTBF) | 30000 h |
| Quantity per pack | 1 pc(s) |
| Number of SSDs supported | 4 |
| SSD form factor | U.2 |
| Technical details | |
| Type | Storage drive tray |
| Size (imperial) | 5.25" |
| LED indicators | Yes |
| Number of cycles | 500 |
| Hot-swap | Yes |
| Noise level | 21.3 dB |
| Operating relative humidity (H-H) | 5 - 65% |
| Key lock | Yes |
| Supported storage drive heights | 7,9.5,12.5,15 mm |
| Airflow (imperial) | 2.47 cfm |
| Bearing type | Sleeve bearing |
| Operating temperature (T-T) | -20 - 55 °C |
| Number of fans | 2 fan(s) |
| Fan diameter | 1.38" (3.5 cm) |
| Data transfer rate | 32 Gbit/s |
| Product colour | Black |
| Material | Aluminum |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 17.5" (445 mm) |
| Master (outer) case length | 16.5" (420 mm) |
| Master (outer) case height | 7.87" (200 mm) |
| Package width | 8.35" (212 mm) |
| Package height | 5.24" (133 mm) |
| Package depth | 7.09" (180 mm) |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Port multiplier | No |
| Packaging data | |
| Package weight | 2.43 lbs (1.1 kg) |
| Package width | 8.35" (212 mm) |
| Package height | 5.24" (133 mm) |
| Package depth | 7.09" (180 mm) |
| Packaging content | |
| Screws included | Yes |
| Number of lock keys included | 2 pc(s) |
| Number of screws | 24 |
| Cables included | MiniSAS |
| Quick start guide | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 65% |
| Storage temperature (T-T) | 0 - 55 °C |
| Operating temperature (T-T) | -20 - 55 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 17.5" (445 mm) |
| Master (outer) case length | 16.5" (420 mm) |
| Master (outer) case height | 7.87" (200 mm) |
