The USB-C 7-in-1 Dual Display MST Docking Station connects to USB-C enabled laptops and is the perfect dock for a dual display solution, when traveling for business or when working from home – making it ideal for inside and outside reps that need the essential connectivity while in the office, at home, or on the go.

This USB-C Dual Display MST docking station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 100W of power delivery to charge and power a laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.

The MST feature allows for two different display configurations on dual monitors connected to a single source with a USB-C output. MST is great for multiple display desk setup — improving multitasking and productivity. The MST dual display feature supports resolutions up to 1920 x 1080 at 60Hz. The docking station will support 4K (3840 x 2160) at 60Hz resolution when using the DisplayPort or HDMI port independently. The USB-A ports support SuperSpeed USB 5Gbps data transfers allowing a full HD movie to be downloaded in under a minute. The USB-C port supports SuperSpeed USB 10Gbps allowing for twice the amount of data in the same amount of time as the USB-A ports. Optimize performance by connecting displays designed for 1080p or 4K signals and USB-C devices designed for 10Gbps transfer speeds. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1G.

This docking station has been tested with Windows and Mac operating systems. It is compatible with both operating systems – please note that the MST feature is not supported by MacOS and will only duplicate dual screens.

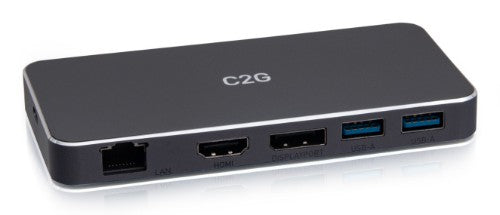

Ports & interfaces
Connectivity technology	Wired
USB 2.0 ports quantity	0

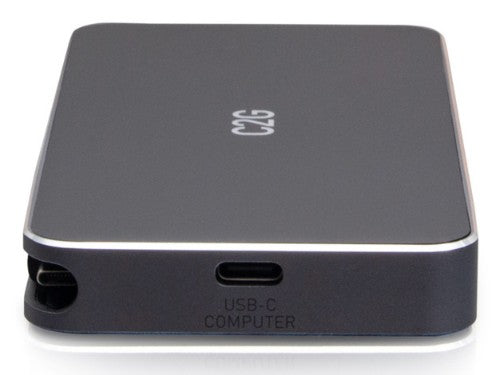

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

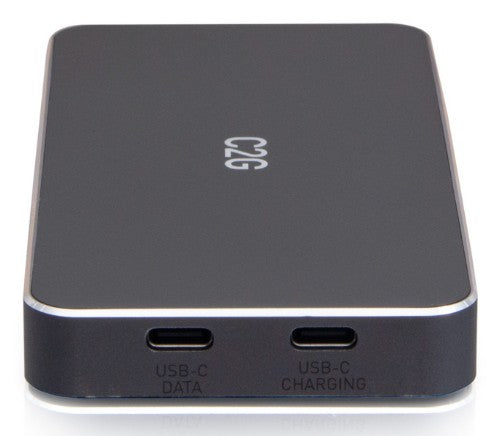

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	No
Number of displays supported	2
Maximum digital resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminum
Maximum refresh rate	60 Hz
Storage
Card reader integrated	No
Power
Power source type	USB
Output voltage	20 V
Output current	5 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	5" (127 mm)
Depth	2.49" (63.2 mm)
Height	0.539" (13.7 mm)
Package weight	17.3 oz (490 g)
Design
Product colour	Black
Packaging data
Package weight	17.3 oz (490 g)
Packaging content

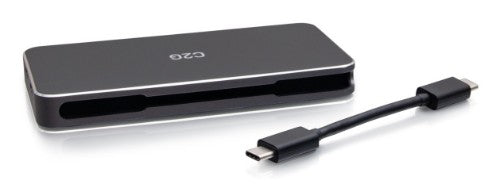

Cables included	USB Type-C to USB Type-C
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
