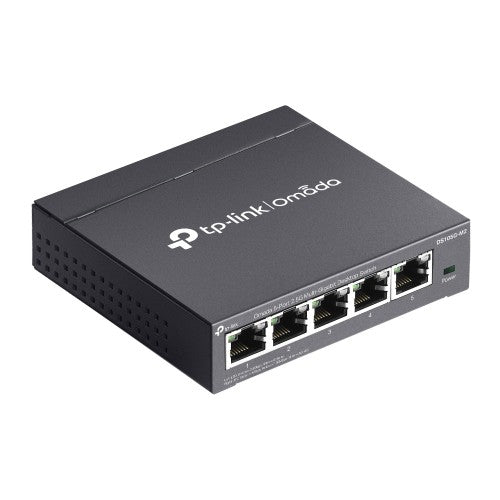

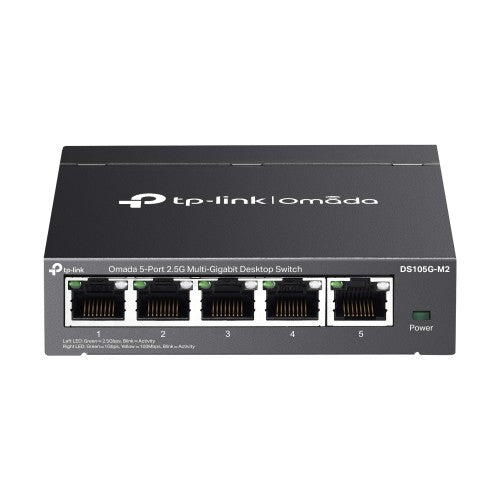

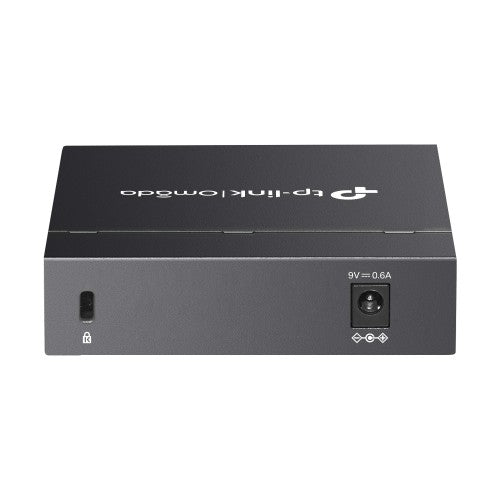

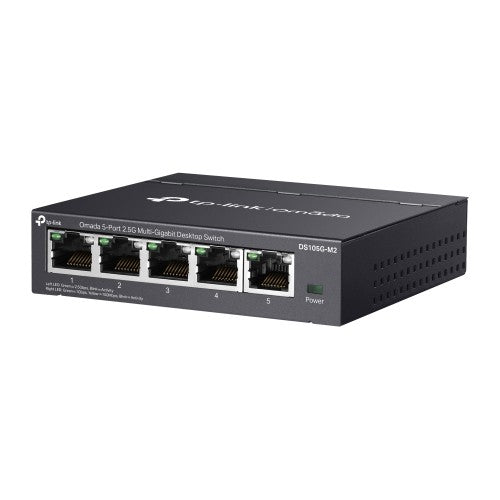

TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
Part number
DS105G-M2
Regular price
$77.10 CAD
Sale price
$54.81 CAD
Omada 5-Port 2.5G Multi-Gigabit Unmanaged Desktop Switch, Fanless, 5.81 W (220 V/ 50 Hz), 19.754 BTU/h
Key Features
- Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business
- Plug and Play. No configuration or central management required

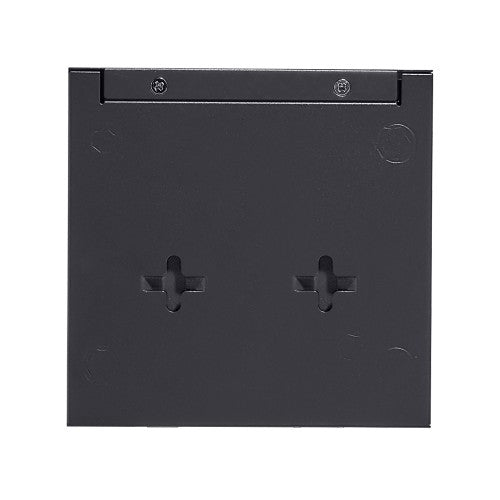

- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments
Description
Omada 5Port 2.5G MultiGigabit Desktop SwitchPORT: 5 2.5G RJ45 PortsSPEC: Desktop Steel CaseFEATURE: Plug and PlaySpecifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 25 Gbit/s |
| Jumbo frames | 12 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 8 MB |
| Forwarding rate | 18.6 Mpps |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 8 MB |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (max) | 5.81 W |
| Input current | 0.6 A |
| DC input voltage | 9 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 19.759 BTU/h |
| Weight & dimensions | |
| Width | 3.93" (99.8 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.984" (25 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | Power |
| Rubber feet | Yes |
| Packaging data | |
| Rubber feet | Yes |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Other features | |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
