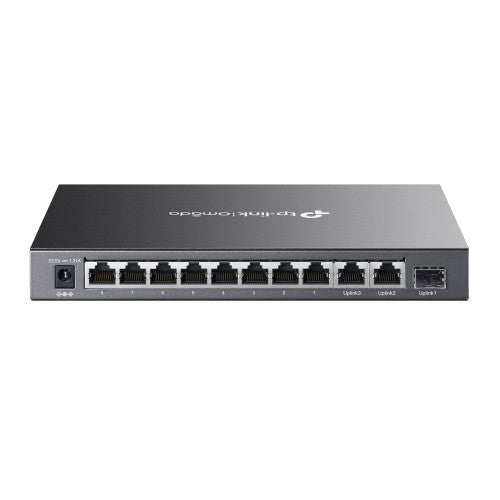

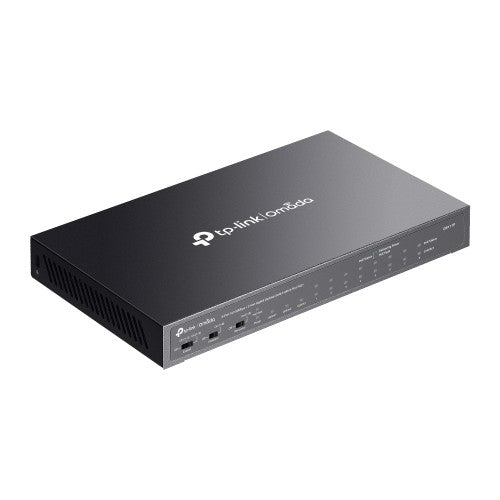

TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
81.68 CAD
Skip to product information
Out of stock
TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
TP-Link Omada DS111P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Part number
DS111P
81.68 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.275 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports
- Up to 250 m (802 ft) data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and Play. No configuration or central management required
Omada 8Port 10/100Mbps + 3Port Gigabit Desktop Switch with 8Port PoE+ PORT: 8 10/100 Mbps PoE+ Ports, 2 Gigabit NonPoE Ports, 1 Gigabit SFP Slots SPEC: 802.3at / af, 65 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Isolation Mode, PoE Auto Recovery, Plug and Play
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 1 |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Switching capacity | 7.6 Gbit/s |
| Jumbo frames | 16 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 5.6544 Mpps |
| Design | |
| Product colour | Black |

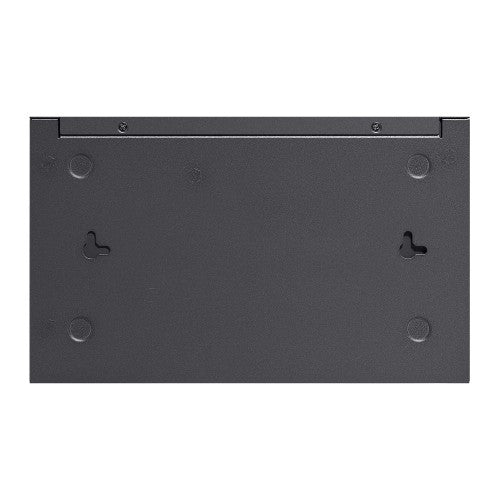

| Wall mountable | Yes |

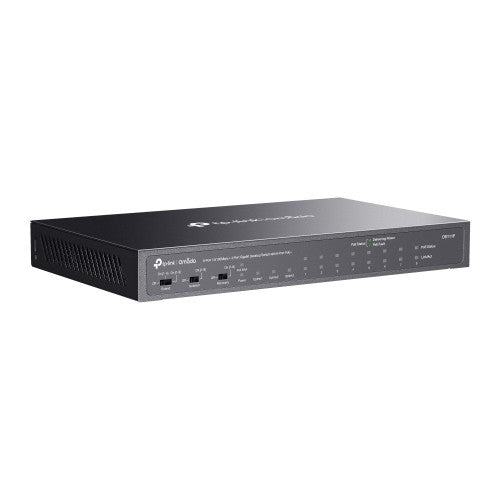

| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (max) | 77.32 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 263.7 BTU/h |
| Weight & dimensions | |
| Width | 8.23" (209 mm) |
| Depth | 4.96" (126 mm) |
| Height | 1.02" (26 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | Power |
| Rubber feet | Yes |
| Packaging data | |
| Rubber feet | Yes |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Certificates | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Other features | |
| Ethernet LAN data rates | 10,100 Mbit/s |
