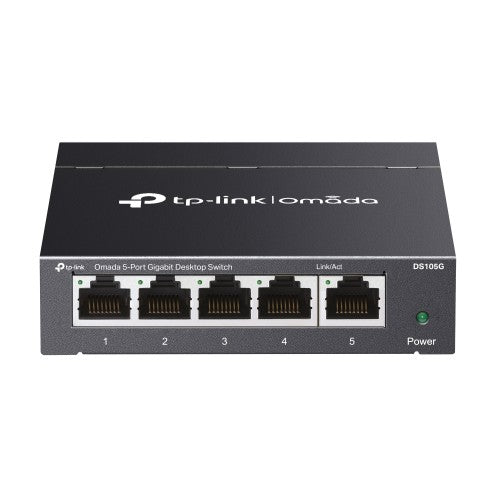

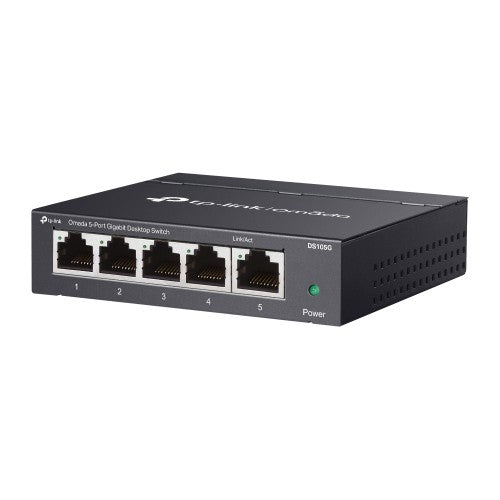

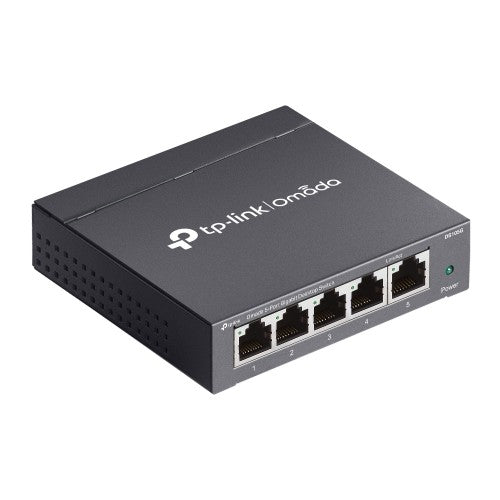

TP-Link Omada DS105G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Part number
DS105G
$16.41 CAD
5-Port Gigabit Desktop Switch, Fanless, 3.1 W (220 V/ 50 Hz), 10.57 BTU/h
Key Features
- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Plug and play, no configuration needed, and no management required
- Supports 802.1p/DSCP QoS and IGMP Snooping functions

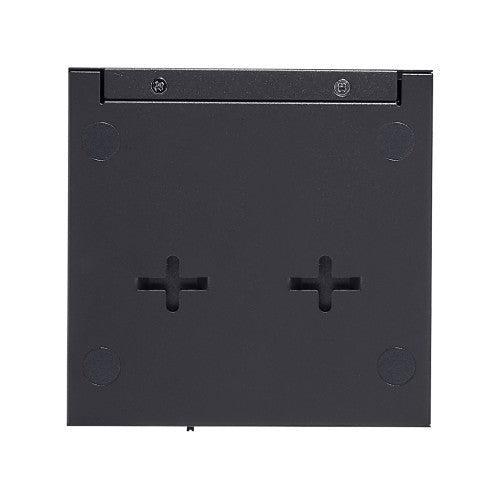

- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption

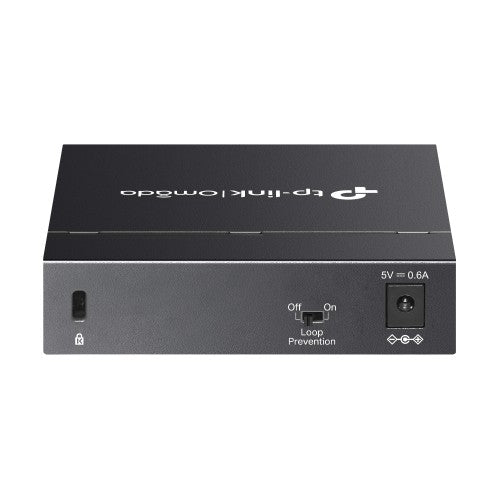

- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
Description
Omada 5-Port Gigabit Desktop Switch PORT: 5 Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and PlaySpecifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames | 16 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 1 MB |
| Forwarding rate | 7.4 Mpps |
| Security | |
| Loop protection | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
| Housing material | Steel |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 1 MB |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 3.1 W |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 10.54 BTU/h |
| Weight & dimensions | |
| Width | 3.93" (99.8 mm) |
| Depth | 3.85" (97.8 mm) |
| Height | 0.984" (25 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Packaging data | |
| User guide | Yes |
| Cables included | Power |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
