ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB
1,307.58 CAD
Skip to product information
Out of stock
ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB
Part number
PRO WS TRX50-SAGE WIFI
1,307.58 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
4.85 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors
- CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
- Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad
- Ultrafast connectivity: three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C® and SlimSAS NVMe support
- Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
A WORKSTATION WONDERLAND
The Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper™ PRO 7000 WX-series and AMD Ryzen Threadripper™ 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling and heat pipes on the VRM heatsinks, WiFi 7, USB 20Gbps port, SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.
CPU AND MEMORY OVERCLOCKING READY
For AMD TR5 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.
ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
Onboard PCIe Power Connectors
An 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.
ECC R-DIMM Memory Support
The Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.
ULTRAFAST CONNECTIVITY
Multi-GPU Support
The Pro WS TRX50-SAGE WIFI motherboard features several PCIe® 5.0/4.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
WiFi 7
Next-gen WiFi 71 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Marvell® AQtion 10 Gbp Ethernet
With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups and transferring large files is now faster than ever before.

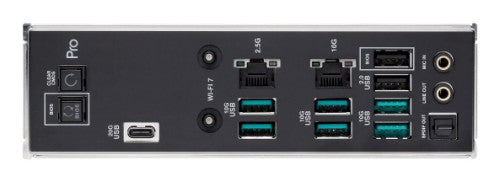

Using a golden light, mark the location of the 2.5 Gbps Ethernet port on the back I/O.
Intel® 2.5 Gb Ethernet
Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.
Embrace Next-Generation USB4®
Faster than ever and future-proof; once connected to this motherboard’s onboard USB4 header, the USB4 expansion card will enable bi-directional speeds of up to 40 Gbps and provide ample power to fast-charge devices.
M.2 PCIe 5.0/4.0 slots
The Pro WS TRX50-SAGE WIFI motherboard also offers three M.2 slots—two PCIe 5.0 and one PCIe 4.0—to enhance storage flexibility and performance. This configuration is ideal for creators who work with massive video files, as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.
SlimSAS slot
The Pro WS TRX50-SAGE WIFI motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.
Server-grade Remote Management
ASUS IPMI Expansion Card
The Pro WS TRX50-SAGE WIFI is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as firmware update or power cycling a system.
ASUS Control Center Express
The Pro WS TRX50-SAGE WIFI comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.
M.2 Cooling
All three M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.
EZ DIY Design
SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.
Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
24/7 Reliability
Built for around-the-clock operation
Optimized for 24/7 operation, the Pro WS TRX50-SAGE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.
The Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper™ PRO 7000 WX-series and AMD Ryzen Threadripper™ 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling and heat pipes on the VRM heatsinks, WiFi 7, USB 20Gbps port, SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.
CPU AND MEMORY OVERCLOCKING READY
For AMD TR5 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.
ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
Onboard PCIe Power Connectors
An 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.
ECC R-DIMM Memory Support
The Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.
ULTRAFAST CONNECTIVITY
Multi-GPU Support
The Pro WS TRX50-SAGE WIFI motherboard features several PCIe® 5.0/4.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
WiFi 7
Next-gen WiFi 71 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Marvell® AQtion 10 Gbp Ethernet
With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups and transferring large files is now faster than ever before.
Using a golden light, mark the location of the 2.5 Gbps Ethernet port on the back I/O.
Intel® 2.5 Gb Ethernet
Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.
Embrace Next-Generation USB4®
Faster than ever and future-proof; once connected to this motherboard’s onboard USB4 header, the USB4 expansion card will enable bi-directional speeds of up to 40 Gbps and provide ample power to fast-charge devices.
M.2 PCIe 5.0/4.0 slots
The Pro WS TRX50-SAGE WIFI motherboard also offers three M.2 slots—two PCIe 5.0 and one PCIe 4.0—to enhance storage flexibility and performance. This configuration is ideal for creators who work with massive video files, as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.
SlimSAS slot
The Pro WS TRX50-SAGE WIFI motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.
Server-grade Remote Management
ASUS IPMI Expansion Card
The Pro WS TRX50-SAGE WIFI is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as firmware update or power cycling a system.
ASUS Control Center Express
The Pro WS TRX50-SAGE WIFI comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.
M.2 Cooling
All three M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.
EZ DIY Design
SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.
Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
24/7 Reliability
Built for around-the-clock operation
Optimized for 24/7 operation, the Pro WS TRX50-SAGE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Integrated SAS ports | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Performance | |
| Component for | Workstation |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD TRX50 |
| Motherboard form factor | SSI CEB |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Processor socket | Socket sTR5 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Memory channels | Quad-channel |
| Maximum internal memory | 1 TB |
| ECC сompatibility | ECC |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB connector type | USB Type-A, USB Type-C |
| WiFi-AP antenna jack | 1 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| LAN controller | Intel I226-LM |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Component for | Workstation |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD TRX50 |
| Motherboard form factor | SSI CEB |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
| Package width | 12.6" (320 mm) |
| Package depth | 15" (380 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 10.7 lbs (4.85 kg) |
| Weight & dimensions | |
| Width | 12" (305 mm) |
| Depth | 11" (280 mm) |
| Weight | 5.58 lbs (2.53 kg) |
| Package width | 12.6" (320 mm) |
| Package depth | 15" (380 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 10.7 lbs (4.85 kg) |
| Packaging content | |
| Cables included | PCIe, SATA |
| Other features | |
| Weight | 5.58 lbs (2.53 kg) |
| Package width | 12.6" (320 mm) |
| Package depth | 15" (380 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 10.7 lbs (4.85 kg) |
