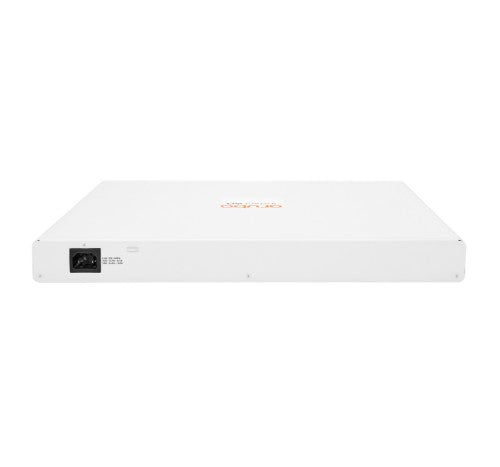

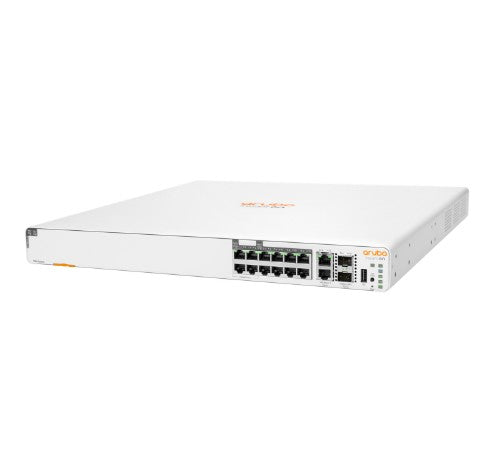

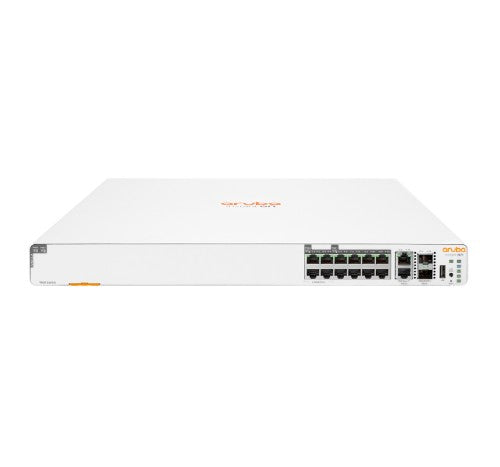

HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
1,386.56 CAD
Skip to product information
1 left
HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Part number
S0F35A#ABA
1,386.56 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
6.6 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 116 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U
| Network | |
|---|---|
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Half duplex | Yes |
| Auto-negotiation | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Stackable | Yes |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Physical stacking (units) | 4 |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 4 |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 116 Gbit/s |
| Throughput | 172 Mpps |
| Latency (10-100 Mbps) | 4.1 µs |
| Latency (1 Gbps) | 1.8 µs |
| Latency (10 Gbps) | 2.8 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Security | |
| Authentication | Port-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP relay, DHCP snooping |
| Protocols | |
| Management protocols | SNMPv1, SNMPv2c, SNMPv3 |
| Supported network protocols | HTTPS |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Wall mountable | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 790 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 480 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Width | 17.4" (443 mm) |
| Depth | 13.8" (350 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 11.6 lbs (5.24 kg) |
