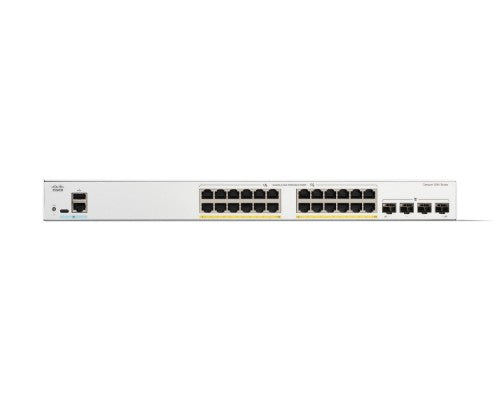

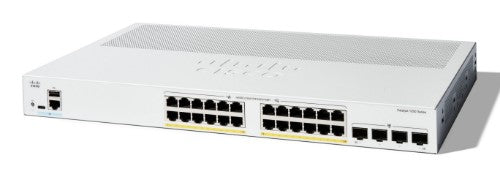

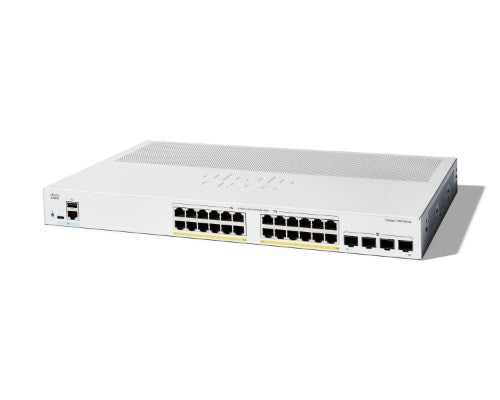

Cisco Catalyst 1200 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Part number
C1200-24P-4G
$485.75 CAD
Catalyst 1200-24P-4G Smart Switch, 24 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1200-24P-4G)
Key Features
- SWITCH PORTS: 24 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 195W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description
The Cisco Catalyst 1200-24P-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az |
| Number of VLANs | 255 |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | |
| Number of VLANs | 255 |
| VLAN support | Yes |
| Data transmission | |
| Number of VLANs | 255 |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames | 9000 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Forwarding rate | 41.66 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Processor frequency | 1.4 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 698220 h |
| Built-in processor | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Security | |
| Loop protection | Yes |
| Access Control List (ACL) rules | 512 |
| Security algorithms | 802.1x RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DoS attack prevention | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | White |
| Reset button | Yes |
| Country of origin | China |
| Form factor | 1U |
| LED indicators | Yes |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 10.65 W |
| Power plug type | Type C |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 195 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 11.8" (298.7 mm) |
| Depth | 17.5" (444.5 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 7.78 lbs (3.53 kg) |
| Packaging data | |
| Package width | 16.9" (430 mm) |
| Package depth | 22.6" (575.1 mm) |
| Package height | 4.17" (105.9 mm) |
| Package weight | 12.8 lbs (5.82 kg) |
| Other features | |
| Country of origin | China |
