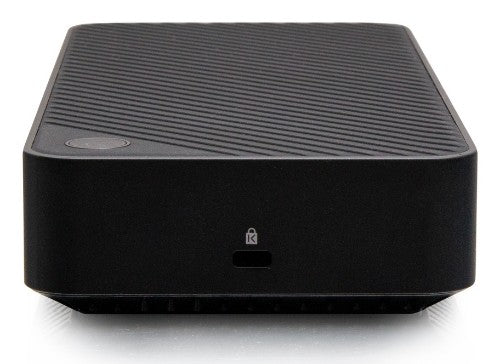

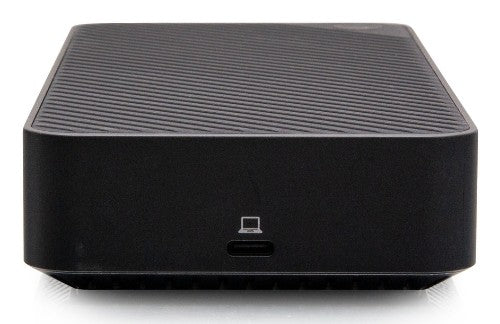

The USB-C® Hybrid Triple 4K Display Docking Station with DisplayLink and DP Alt Mode transforms USB-C enabled laptops into total desktop solutions through a single USB-C connection – allowing them to have more video outputs, more connected peripherals, and quick data transfers, all while keeping the laptop charged and ready to go.

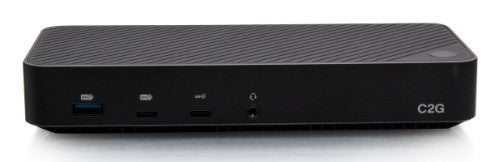

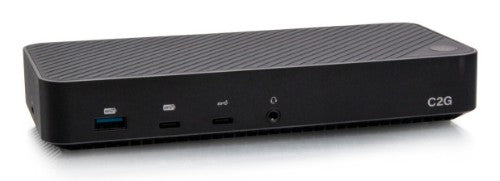

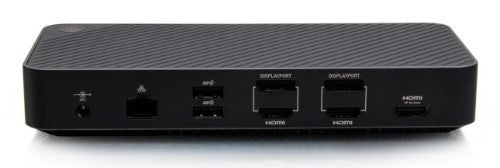

This docking station supports crisp, high definition images and video when connecting one, two, or three 4K displays. When connecting to the HDMI port labeled “DP Alt Mode”, be sure that the connected laptop supports DP alt mode. The front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 for quick mobile device charging and data transferring up to 10Gbps, while the two USB-A Gen 1 ports on the rear support 5Gbps data transfers. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.

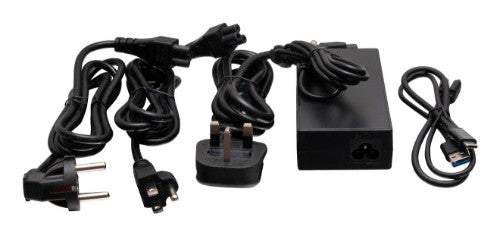

The included 130W power supply keeps the connected laptop charged and ready to go with 100W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 100W may charge at lower speeds.

The USB-C Hybrid Triple 4K Display Docking Station maximizes desktop space while providing a single cable solution for Windows, Mac OS devices (including M1 and M1X), and Chrome OS.

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	3
DisplayPorts quantity	2
Microphone in	No
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
USB Power Delivery	Yes
USB Power Delivery up to	100 W
HDCP	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	No
Number of displays supported	3
Country of origin	China
Maximum digital resolution	3840 x 2160 pixels
Data transfer rate	10 Gbit/s
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Maximum refresh rate	60 Hz
Storage
Card reader integrated	No
Power
Power source type	DC
AC input voltage	100 - 240 V
Output voltage	24 V
Output current	4 A
Compatible power plug types	EU, UK, US
Power supply	130 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	7.52" (191 mm)
Depth	3.35" (85 mm)
Height	1.25" (31.8 mm)
Design
Product colour	Black
Country of origin	China
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Cables included	USB Type-A to USB Type-C, USB Type-C to USB Type-C
AC adapter included	Yes
Quantity per pack	1 pc(s)
Technical details
Warranty period	5 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
