Trendnet TI-PG102 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
575.49 CAD
Skip to product information
Out of stock
Trendnet TI-PG102 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
TI-PG102
575.49 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.445 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 8 x Gigabit PoE+ ports
- 2 x 1000Base TX/SX RJ-45/SFP shared ports
- 240 W PoE power budget
- 20 Gbps switching capacity
- Hardened IP30 rated metal switch

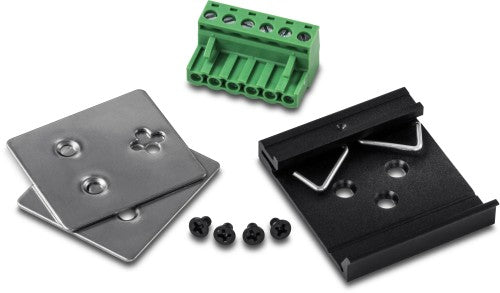

- Includes DIN-rail and wall mounts
- Operating temperature range of -40° – 75°C (-40° – 167°F)
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- NDAA / TAA compliant

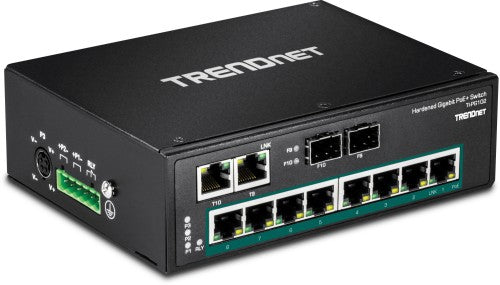

TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.
PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance

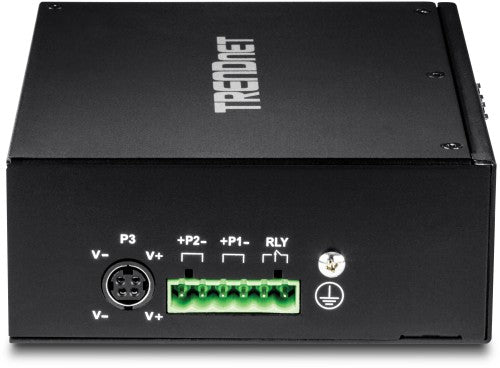

Features dual redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).
PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features dual redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 14.8 Mpps |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Certification | CE FCC |
| Performance | |
| Buffer size | 2048 KB |
| Mean time between failures (MTBF) | 510400 h |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 5.67 W |
| Redundant power supply (RPS) support | Yes |
| Input voltage | 48/56 V |
| DC input voltage | 48 - 56 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 6.1" (155 mm) |
| Depth | 4.72" (120 mm) |
| Height | 1.89" (48 mm) |
| Weight | 15.7 oz (445 g) |
| Packaging data | |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Certificates | |
| Certification | CE FCC |
| Other features | |
| Input voltage | 48/56 V |
| Packaging content | |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
