Overview

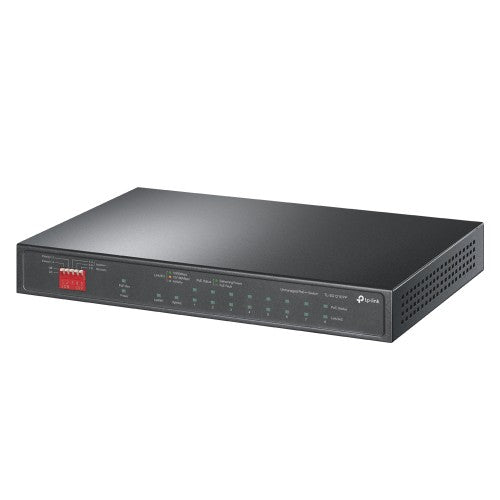

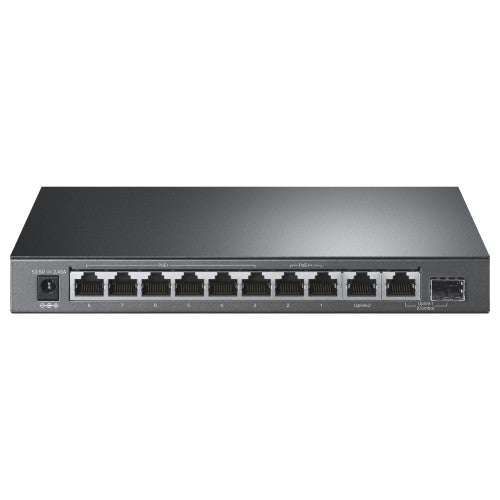

TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power Over Ethernet
8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.

Overload Arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Intelligent Power Management
Priority (port 1 > port 2 ……> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.

Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.

TL-SG1210PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ and 2-Port PoE++ TL-SG1210PP is a great selection for expanding your network.

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	1
Gigabit Ethernet (copper) ports quantity	10
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported	Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Forwarding rate	14.88 Mpps
Security
IGMP snooping	Yes
Design
Rack mounting	No
Product colour	Black
LED indicators	Yes
Housing material	Steel
Certification	FCC, CE, RoHS
Performance
Fanless	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	90 - 220 V
AC input frequency	50 Hz
Power consumption (max)	144.1 W
Number of power supply units	1
Input voltage	53.5 V
Input current	2.43 A
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	2
Total Power over Ethernet (PoE) budget	123 W
Power over Ethernet 4PPoE (PoE++) ports quantity	6
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	482.17 BTU/h
Weight & dimensions
Width	8.23" (209 mm)
Depth	4.96" (126 mm)
Height	1.02" (26 mm)
Packaging content
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
User guide	Yes
Cables included	AC
Certificates
Certification	FCC, CE, RoHS
Other features
Input voltage	53.5 V
Logistics data
Harmonized System (HS) code	85176990
