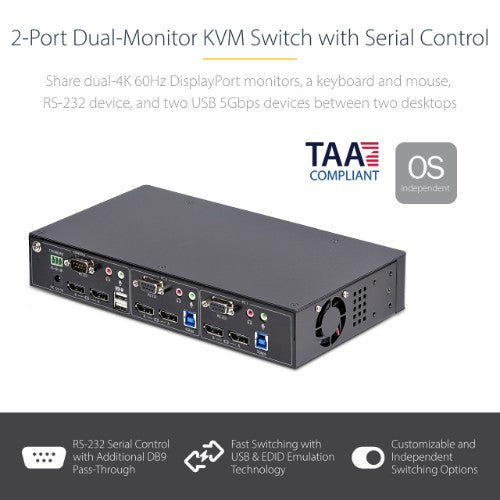

Share a mouse, keyboard, RS-232 device, and dual-4K 60Hz DisplayPort monitors between two DisplayPort-enabled desktops

This Dual-Monitor KVM Switch enables users to switch between two desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, two USB 5Gbps devices, and two USB 2.0 HID devices.

RS232 Serial Control

This 2-Port KVM Switch provides control using serial commands, enabling users to switch between host ports, modify hotkeys, and perform various other functions. The RS232 host ports offer additional flexibility by allowing the switching of an RS232 device between two desktop computers.

Near Instantaneous Switching

DisplayPort EDID and USB Emulation technology enable near-instant switching of a keyboard, video, and mouse. DisplayPort EDID emulation remembers application window placement, while USB Emulation ensures compatibility with combination keyboards/mice, as well as keyboards featuring additional function keys.

Dual-4K 60Hz DisplayPort Monitors

This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it an ideal choice for working with high-resolution graphics or video. It also features MST pass-through, enabling the connection of additional monitors through daisy chaining - when using an MST Hub or the Video Output Ports located on the monitor.

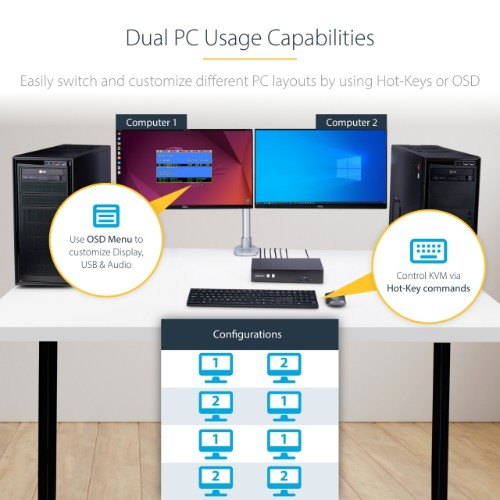

Customizable Switching

This Universal KVM Switch offers multiple switching options, including hotkey, on-screen display, or push-button switching. Hotkeys provide independent switching of USB/Video, Audio, and RS232, allowing for audio playback from one computer while controlling the other or switching without interrupting serial communication. An audible buzzer confirms hotkey input, and LEDs provide a visual indication of the selected host.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Number of microphone inputs	3
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
DisplayPorts quantity	4
DisplayPort version	1.2
Serial ports quantity	3
Serial port type	DE-9 (DB-9)
Headphone outputs	3
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
Console DisplayPorts ports quantity	2
Performance
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Plug and Play	Yes
Maximum resolution	3840 x 2160 pixels
Scan interval	10,20,30,40,50,60 s
Daisy chain	No
Design
Product colour	Black
Rack mounting	No
Push button	Yes
Mean time between failures (MTBF)	80907 h
LED indicators	Yes
Hot keys	Yes
Housing material	Steel, Zinc
Display
Built-in display	No
On Screen Display (OSD)	Yes
Power
Output voltage	12 V
Input current	1 A
Power source	DC
Output current	3 A
External power adapter	Yes
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	5.12" (130 mm)
Depth	10" (255 mm)
Height	1.57" (40 mm)
Weight	2.43 lbs (1.1 kg)
Package width	9.69" (246 mm)
Package depth	13" (331 mm)
Package height	6.89" (175 mm)
Package weight	4.63 lbs (2.1 kg)
Packaging data
Package width	9.69" (246 mm)
Package depth	13" (331 mm)
Package height	6.89" (175 mm)
Package weight	4.63 lbs (2.1 kg)
Packaging content
Cables included	DisplayPort, USB Type-A to USB Type-B
Quick installation guide	Yes
AC adapter included	Yes
Other features
IP control	No
Push button	Yes
Hot keys	Yes
Logistics data
Master (outer) case width	14.6" (370 mm)
Master (outer) case length	15.2" (385 mm)
Master (outer) case height	10.8" (274 mm)
Products per master (outer) case	2 pc(s)
