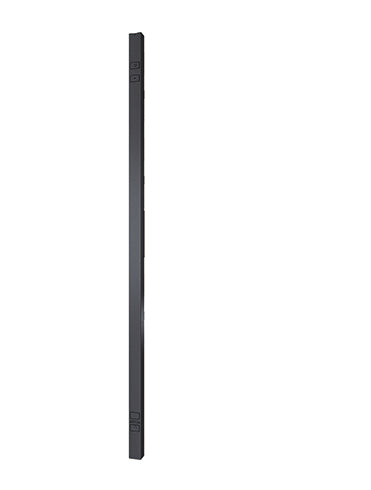

APC AP8832 power distribution unit (PDU) 24 AC outlet(s) Black
Part number
AP8832
$1,040.51 CAD
Rack 2G, Metered, NEMA 5-20R x 20, NEMA L5-30P, 2880 VA
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed |
| Ports & interfaces | |
| Power plug | NEMA L5-30P |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Features | |
| LED indicators | Yes |
| Cable length | 118.1" (3 m) |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 118.1" (3 m) |
| Power | |
| Nominal input voltage | 100 - 120 V |
| Nominal output voltage | 100-120 V |
| Load capacity | 2880 VA |
| Maximum input current per phase | 30 A |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.17 x 1.73 x 70.5" (55 x 44 x 1791 mm) |
| Weight | 14.7 lbs (6.67 kg) |
| Width | 2.17" (55 mm) |
| Depth | 1.73" (44 mm) |
| Height | 70.5" (1791 mm) |
| Package width | 6.3" (160 mm) |
| Package depth | 4.25" (108 mm) |
| Package height | 79" (2006 mm) |
| Package weight | 18.9 lbs (8.58 kg) |
| Package dimensions (WxDxH) | 6.3 x 4.25 x 79" (160 x 108 x 2006 mm) |
| Packaging data | |
| Package width | 6.3" (160 mm) |
| Package depth | 4.25" (108 mm) |
| Package height | 79" (2006 mm) |
| Package weight | 18.9 lbs (8.58 kg) |
| Package dimensions (WxDxH) | 6.3 x 4.25 x 79" (160 x 108 x 2006 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 25316.87 |
| Compliance certificates | RoHS |
