Slim design. Stunning performance.
Introducing QHC, the slimmest display in the Samsung UHD Signage lineup. It brings elegance to businesses while maximizing space. Its enhanced internal solutions and intuitive home screen UX makes it easy to use. Businesses in various verticals can achieve growth with QHC’s efficiency and design innovation.

Maximum impact in minimum space
Ultra Slim Depth
The QHC's ultra-slim 28.5 mm depth makes it the thinnest option in Samsung’s UHD series lineup. It is compatible with a Slim Fit Wall Mount, which allows you to install it neatly and easily in any location. QHC optimizes space with its sleek design that blends seamlessly into your business environment.

Clean visuals in landscape or portrait mode
Even Bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting

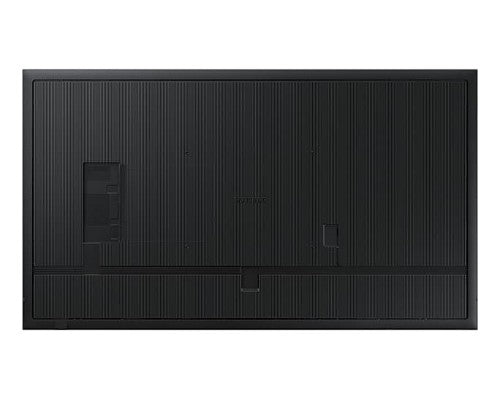

Centered VESA Holes
The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.

Lifelike colour.
Dynamic Crystal Color
Experience immersive pictures with one billion shades of colour. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.

View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Samsung’s proprietary video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to near-UHD, providing a professional picture quality.

Ensure critical information is always visible
Non-glare
QHC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in critical locations, like airports and train stations.

Connect with convenience
Home UI
QHC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections, allowing easy collaboration. Users can now enable the screen sharing function at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.

Simplified calibration between screens with mobile app
Smart Calibration
Experience complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration allows for every display to be calibrated correctly, showcasing brand logos and other collateral in the exact colours required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards.

Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

Building towards a sustainable future, today.
Energy Star / EPEAT
Samsung is making diverse efforts to reduce our environmental impact in smart signage. As a result, QHC series has earned a series of certifications for environmentally preferable products from highly recognized institutes.

Display
Display diagonal	75"
Display resolution	3840 x 2160 pixels
Display brightness	700 cd/m²
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0169 x 0.0169" (0.429 x 0.429 mm)
Dynamic contrast ratio marketing name	Mega Contrast
Vertical scan range	48 - 75 Hz
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LCD
Colour gamut	72%
Haze rate	25%

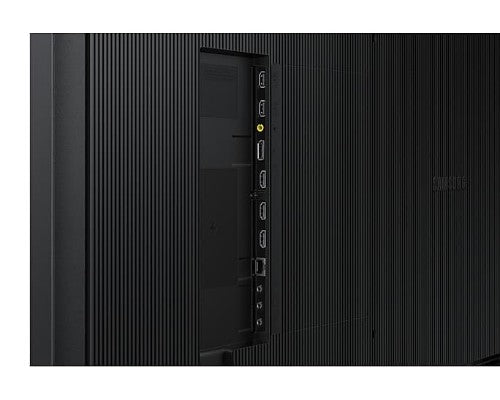

Ports & interfaces
HDMI ports quantity	3
HDMI version	2.0
Remote (IR) input	1
USB port	Yes
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
PC Audio out	Yes
DisplayPorts quantity	1
HDMI input ports quantity	3
Design
Product design	Digital signage flat panel
Product colour	Black
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Placement supported	Indoor
Bezel width (top)	0.528" (1.34 cm)
Bezel width (side)	0.528" (1.34 cm)
Bezel width (bottom)	0.528" (1.34 cm)
Screen shape	Flat
Performance
Purpose	Commercial
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	275 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Internal memory	16 GB
Weight & dimensions
Display width	66.2" (1682.3 mm)
Display depth	1.12" (28.5 mm)
Display height	37.8" (960.4 mm)
Display weight	76.3 lbs (34.6 kg)
Packaging data
Package width	72.4" (1839 mm)
Package depth	7.09" (180 mm)
Package height	43.8" (1113 mm)
Package weight	99.9 lbs (45.3 kg)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Thin Client
Internal memory	16 GB
Brand-specific features
Samsung technologies (AV/TV)	Smart TV powered by Tizen
Technical details
RS-232 output ports	1
RS-232 input ports	1
Panel type	VA
DisplayPort version	1.2
Other features
Wi-Fi	Yes
RS-232 output ports	1
RS-232 input ports	1
PC Audio out	Yes
Panel type	VA
DisplayPort version	1.2
Display technology	LCD
Bluetooth	Yes
Bezel width (top)	0.528" (1.34 cm)
Bezel width (side)	0.528" (1.34 cm)
Bezel width (bottom)	0.528" (1.34 cm)
