Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection

This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.

100W Power Delivery Pass-through

Dual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.

Universal Compatibility

The 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.

Ready for Quick Deployment

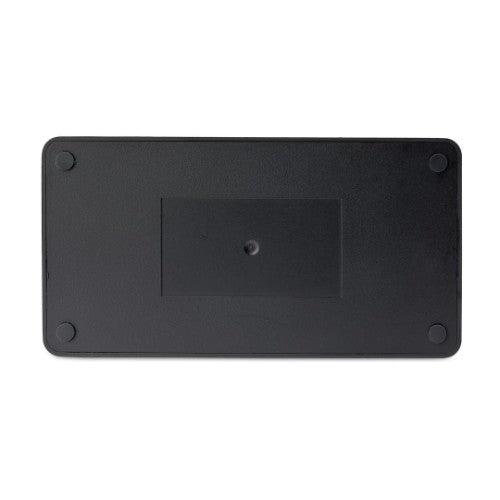

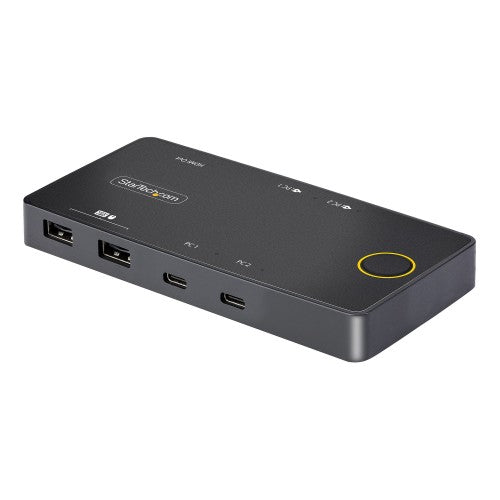

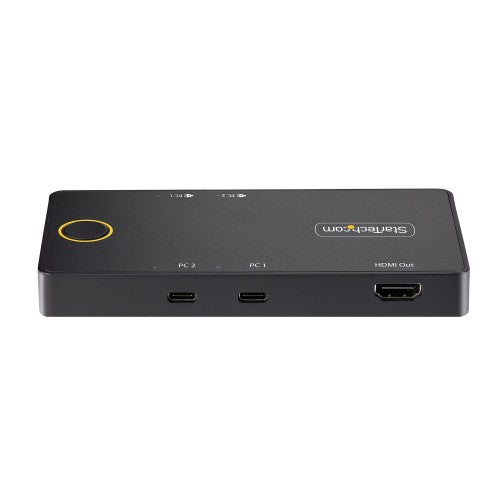

The KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.

The StarTech.com Advantage

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console USB ports quantity	4
Console ports	HDMI, USB A, USB C
Console HDMI ports quantity	1
Cable length	39.4" (1 m)
Performance
Data transfer rate (max)	0.48 Gbit/s
HD type	4K Ultra HD
Video bandwidth	75 Hz
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
Chipset	VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817
Audio channels	7.1
Design
Product colour	Black
Cable length	39.4" (1 m)
Rack mounting	No
Push button	Yes
Mean time between failures (MTBF)	50000 h
LED indicators	Power
Hot keys	No
Housing material	Acrylonitrile butadiene styrene (ABS)
Display
Built-in display	No
Power
Power consumption (typical)	10 W
USB Power Delivery up to	100 W
USB Power Delivery	Yes
Video
HD type	4K Ultra HD
Video bandwidth	75 Hz
Maximum resolution	4096 x 2160 pixels
Sustainability
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	2.76" (70 mm)
Depth	5.51" (140 mm)
Height	0.591" (15 mm)
Weight	7.05 oz (200 g)
Package width	4.72" (120 mm)
Package depth	6.77" (172 mm)
Package height	3.35" (85 mm)
Package weight	15.5 oz (440 g)
Packaging data
Package width	4.72" (120 mm)
Package depth	6.77" (172 mm)
Package height	3.35" (85 mm)
Package weight	15.5 oz (440 g)
Packaging content
Cables included	USB Type-C
Quick installation guide	Yes
Other features
IP control	No
Push button	Yes
Hot keys	No
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	16.1" (410 mm)
Master (outer) case length	18.5" (470 mm)
Master (outer) case height	12.2" (310 mm)
Products per master (outer) case	20 pc(s)
