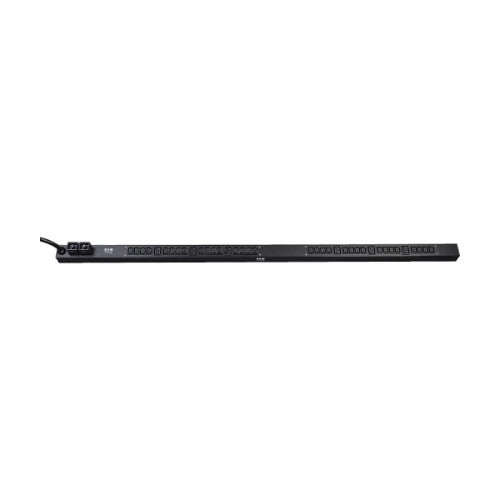

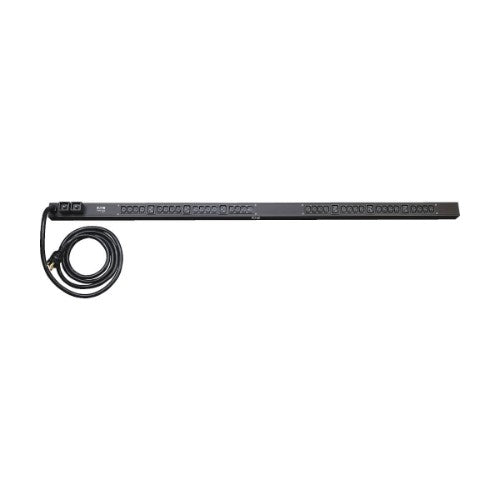

The PDUV30HV 5/5.8kW Single-Phase 208/240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUV30HV features 38 total outlets—32 C13 and 6 C19. The NEMA L6-30P input plug with 10-foot (3 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The 63.75-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware or toolless 0U mounting using the included buttons. You can also mount the PDUV30HV under a counter with the included brackets and user-supplied hardware. Included C20 and C14 plug-lock inserts attach to the components’ plugs to keep them connected and continuously powered.
- NEMA L6-30P input with 10 ft. (3 m) power cord
- 38 total outlets—32 C13 and 6 C19
- Switchless design prevents accidental shutdown
- 1.61 m (63.75) in. all-metal housing
- Supports toolless 0U vertical mounting
- PDUV30HV 5/5.8kW Single-Phase 208/240V Basic PDU
- (38) Plug-lock inserts
- Spare installation buttons, 2.9 mm
- Spare installation buttons, 4.6 mm
- Mounting hardware
- Owner’s manual
Reliable Single-Phase 30A 208/240V Power Distribution
- Versatile no-frills PDU for data centers, server rooms and network wiring closets
- 38 total outlets—32 C13 and 6 C19
- NEMA L6-30P input plug with 10 ft. (3.05 m) power cord
- Included C20 and C14 plug-lock inserts keep connected plugs secure and continuously powered
- Dual 15A circuit breakers protect outlets against overloads
- Switchless design prevents accidental shutdowns and costly downtime
Versatile Installation Options
- 1.61 m (63.75 in.) all-metal housing
- Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
- Also supports 0U mounting using included hardware
- Also mounts under a counter or workbench using included brackets and user-supplied hardware
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The 63.75-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware or toolless 0U mounting using the included buttons. You can also mount the PDUV30HV under a counter with the included brackets and user-supplied hardware. Included C20 and C14 plug-lock inserts attach to the components’ plugs to keep them connected and continuously powered.
- NEMA L6-30P input with 10 ft. (3 m) power cord
- 38 total outlets—32 C13 and 6 C19
- Switchless design prevents accidental shutdown
- 1.61 m (63.75) in. all-metal housing
- Supports toolless 0U vertical mounting
- PDUV30HV 5/5.8kW Single-Phase 208/240V Basic PDU
- (38) Plug-lock inserts
- Spare installation buttons, 2.9 mm
- Spare installation buttons, 4.6 mm
- Mounting hardware
- Owner’s manual
Reliable Single-Phase 30A 208/240V Power Distribution
- Versatile no-frills PDU for data centers, server rooms and network wiring closets
- 38 total outlets—32 C13 and 6 C19
- NEMA L6-30P input plug with 10 ft. (3.05 m) power cord
- Included C20 and C14 plug-lock inserts keep connected plugs secure and continuously powered
- Dual 15A circuit breakers protect outlets against overloads
- Switchless design prevents accidental shutdowns and costly downtime
Versatile Installation Options
- 1.61 m (63.75 in.) all-metal housing
- Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
- Also supports 0U mounting using included hardware
- Also mounts under a counter or workbench using included brackets and user-supplied hardware
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico) |
| Rack capacity | 0U |
| Ports & interfaces | |
| Power plug | NEMA L6-30P |
| AC outlets quantity | 38 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 120.1" (3.05 m) |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico) |
| Ergonomics | |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum current | 30 A |
| Nominal output voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico) |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 8 lbs (3.63 kg) |
| Width | 2.24" (57 mm) |
| Depth | 3.74" (95 mm) |
| Height | 63.8" (1620 mm) |
| Package width | 3" (76.2 mm) |
| Package depth | 65.5" (1663.7 mm) |
| Package height | 5" (127 mm) |
| Package weight | 10.8 lbs (4.9 kg) |
| Packaging data | |
| Package width | 3" (76.2 mm) |
| Package depth | 65.5" (1663.7 mm) |
| Package height | 5" (127 mm) |
| Package weight | 10.8 lbs (4.9 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332138917 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 16" (406.4 mm) |
| Master (outer) case length | 66" (1676.4 mm) |
| Master (outer) case height | 7" (177.8 mm) |
| Master (outer) case gross weight | 65.9 lbs (29.9 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332138917 |
