Tripp Lite PDUMV20 power distribution unit (PDU) 28 AC outlet(s) 0U Black
318.25 CAD
Skip to product information
4 left
Tripp Lite PDUMV20 power distribution unit (PDU) 28 AC outlet(s) 0U Black
Part number
PDUMV20
318.25 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.18 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

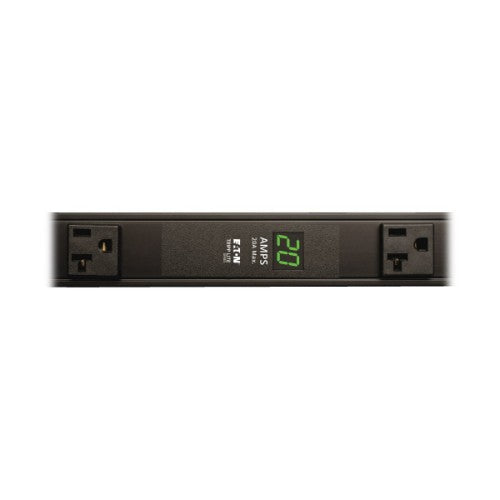

- Two-digit lighted meter reports combined total output current in amps

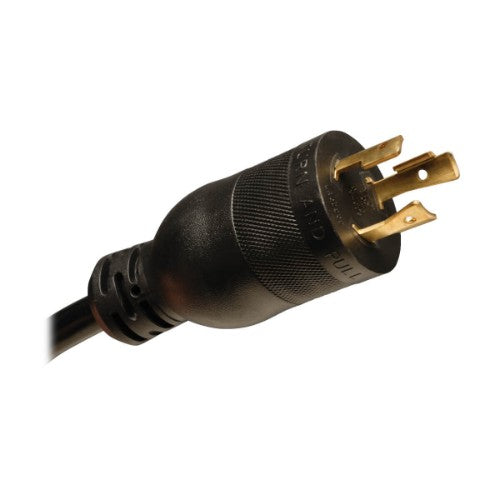

- Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter

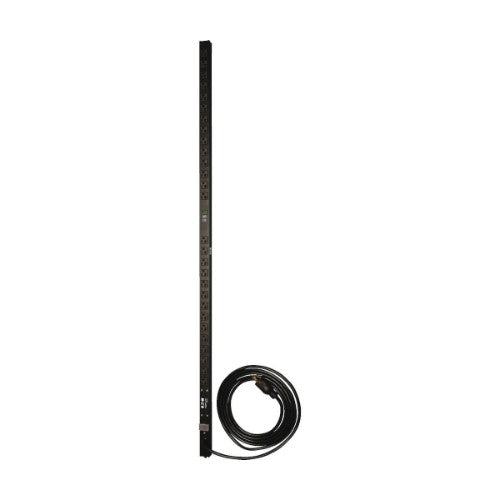

- 0U 60in / 152cm vertical rackmount format installs using no rack spaces
- 28 NEMA 5-15/20R outlets

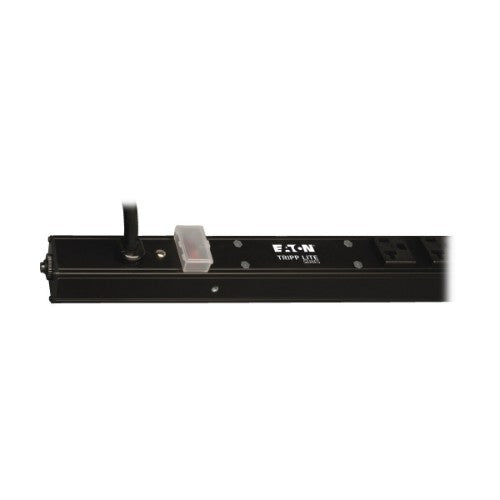

- Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks

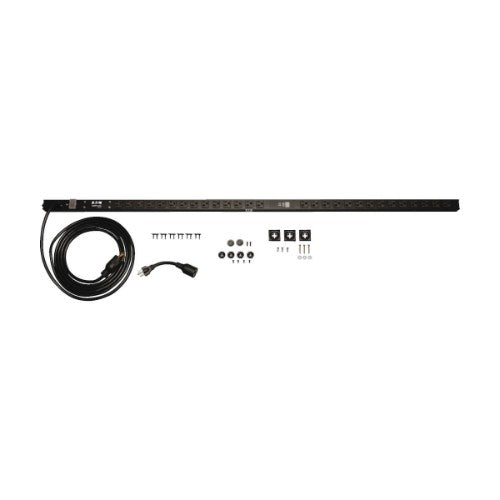

- Bolt-down installation brackets support installation in other racks and additional surfaces
- 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
- Two-digit lighted meter reports combined total output current in amps
- Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter
- 0U 60in / 152cm vertical rackmount format installs using no rack spaces
- 28 NEMA 5-15/20R outlets
- Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Rack capacity | 0U |
| Housing material | Aluminum |
| Ports & interfaces | |
| AC outlets quantity | 28 AC outlet(s) |
| AC outlet types | NEMA 5–15, NEMA 5–20R |
| Input connection type | NEMA 5-20P, NEMA L5-20P |
| Features | |
| LED indicators | Yes |
| Cable length | 181.1" (4.6 m) |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 181.1" (4.6 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 20 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 1.75 x 1.25 x 60" (44.5 x 31.8 x 1524 mm) |
| Weight | 5.38 lbs (2.44 kg) |
| Width | 1.75" (44.5 mm) |
| Depth | 1.25" (31.8 mm) |
| Height | 60" (1524 mm) |
| Package width | 3.5" (88.9 mm) |
| Package depth | 63.2" (1605.3 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 7.01 lbs (3.18 kg) |
| Packaging data | |
| Package width | 3.5" (88.9 mm) |
| Package depth | 63.2" (1605.3 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 7.01 lbs (3.18 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332132540 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 8.3" (210.8 mm) |
| Master (outer) case length | 64" (1625.6 mm) |
| Master (outer) case height | 7.9" (200.7 mm) |
| Master (outer) case gross weight | 44.1 lbs (20 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
