Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU700XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting.

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

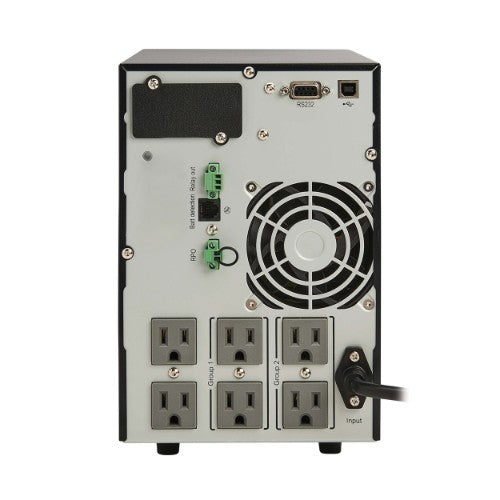

NEMA 5-15R Outlets Protect Your Connected Components
Six NEMA 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.

Supports Tower Installation on a Flat Surface
Place the SU700XLCD on a table, shelf, pedestal or floor in your data center, computer room, network closet, workbench, dispatch console, security workstation or other professional work surface. The eight-foot input cord with NEMA 5-15P plug connects to a compatible AC outlet.

Power
Output power capacity	0.7 kVA
Output power	630 W
Input operation voltage (min)	100 V
Input operation voltage (max)	127 V
Output operation voltage (min)	100 V
Output operation voltage (max)	120 V
Efficiency	89.84%
Power factor	0.9
Output voltage regulation	+-2%
Crest factor	3:1
Input frequency	50/60 Hz
Ports & interfaces
Cable length	94.5" (2.4 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
USB port	Yes
RS-232 ports	1
Performance
UPS topology	Double-conversion (Online)
Number of input phases	1
Audible alarm modes	Fault, Low battery alarm, Overload alarm
EMI/RFI noise filtering	Yes
EMI/RFI noise filtering	190 dB
Waveform	Pure sine
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	0.7 kVA
Number of input phases	1
Audible alarm modes	Fault, Low battery alarm, Overload alarm
Output power	630 W
Input operation voltage (min)	100 V
Input operation voltage (max)	127 V
Output operation voltage (min)	100 V
Output operation voltage (max)	120 V
Efficiency	89.84%
EMI/RFI noise filtering	Yes
EMI/RFI noise filtering	190 dB
Waveform	Pure sine
Power factor	0.9
Output voltage regulation	+-2%
Crest factor	3:1
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	16.9 min
Typical backup time at full load	5.9 min
Cold start	Yes
Battery voltage	24 V
Design
Form factor	Tower
Product colour	Black
Cable length	94.5" (2.4 m)
Cooling type	Active
LED indicators	Yes
Built-in fan	Yes
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 96%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Weight	25.4 lbs (11.5 kg)
Package weight	26.9 lbs (12.2 kg)
Packaging data
Quick installation guide	Yes
Cables included	Serial, USB cable
Package weight	26.9 lbs (12.2 kg)
Packaging content
Quick installation guide	Yes
Cables included	Serial, USB cable
