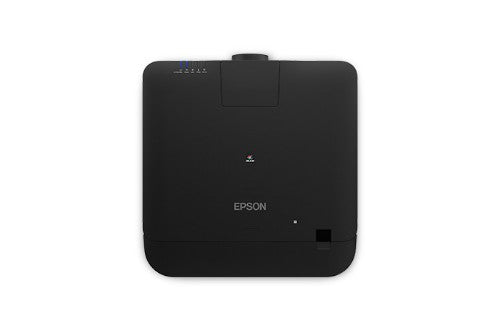

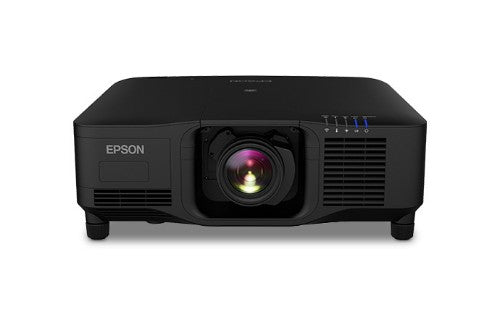

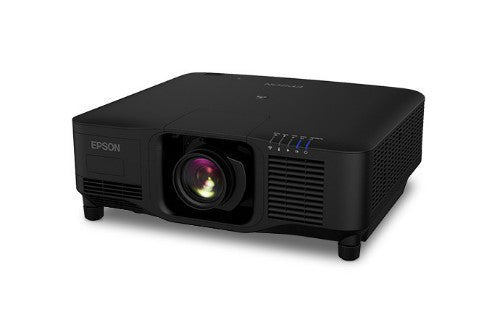

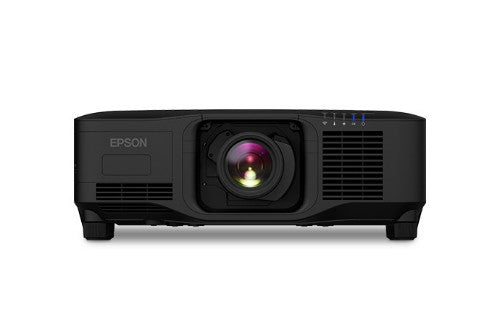

The world’s smallest and lightest 20,000-lumen projector.
Experience the power and flexibility of the EB-PU2220B 20,000-lumen large venue laser projector, the world’s smallest and lightest 20,000-lumen projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2220B produces ultra bright, 20,000-lumen images and uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable PixAlignTM camera to streamline multi-projector setups.

The world's smallest and lightest 20,000-lumen projector
produces incredibly bright images from a light and compact body

Long-lasting laser light source
20,000-hour virtually maintenance-free laser light source


Incredible Color
Epson 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness

Simplified installation
9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation

WUXGA with 4K Enhancement
accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image


Engineered for reliability
hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation

Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic, moving images; HDR support and scene adaptive gamma correction for true-to-life images
Fast installation — built-in NFC functionality and easy-to-use Android™ and iOS® mobile app, Epson Projector Configuration Tool (EPCT), to streamline multi-projector installations
Optional attachable PixAlignTM camera — provides access to powerful features, including projector stacking assist function, tiling assist for edge blends, color calibration and screen matching
Simple Stacking function — quickly stack two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable camera
Efficient setup — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT); easily manage your installed inventory using Epson Projector Management

Eco Features
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay® Transport Partner

Better Products for a Better Future™

Projector
Projector brightness	20000 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Supported aspect ratios	4:3, 16:10, 16:9
Contrast ratio (typical)	2500000:1
Number of colours	1.07 billion colors
White light output	20000 ANSI lumens
Uniformity	85%
Matrix type	3-panel (p-Si TFT active)
Keystone correction, vertical	±45°
Keystone correction, horizontal	±30°
Colour light output	20000 ANSI lumens
Light source
Light source type	Laser
Service life of light source	20000 h
Lens system
Focus	Auto
Number of optional lenses supported	9
Focal length range	14.8 – 17.7
Aperture range (F-F)	2 - 2.1
Horizontal lens shift range	-18 - 18%
Vertical lens shift range	-60 - 60%
Throw ratio	1.57 – 2.56
Optical zoom	1.6x
Interchangeable lens	Yes
Video
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160i, 2160p
Supported graphics resolutions	640 x 480 (VGA), 720 x 576, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Ports & interfaces
HDBaseT port	Yes
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI connector type	Full-size
Serial interface type	RS-232C
DVI port	Yes
AC (power) in	Yes
Service port type	USB Type-B
USB 2.0 Type-A ports quantity	2
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Features
HDCP	Yes
Password protection	Yes
Noise level	45 dB
Noise level (economic mode)	37 dB
High Dynamic Range (HDR) supported	Yes
Projection modes	Ceiling, Front, Rear
HDCP version	2.3
Test patterns	Yes
Multimedia
Timeshift	Yes
Design
Market positioning	Presentation
Product colour	Black
Product type	Large venue projector
Cable lock slot type	Kensington
Cable lock slot	Yes
Power
Power source	AC
Power consumption (typical)	1301 W
Power consumption (standby)	2 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (economy mode)	899 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Weight & dimensions
Width	23.1" (587 mm)
Depth	19.4" (493 mm)
Height	8.58" (218 mm)
Weight	53.8 lbs (24.4 kg)
Packaging content
Remote control included	Yes
Packaging content	EB-PU2220B projector, power cable, remote control with two batteries, cable cover, user guide and warranty sheet
Warranty card	Yes
Manual	Yes
Cables included	AC
Batteries included	Yes
Technical details
Packaging content	EB-PU2220B projector, power cable, remote control with two batteries, cable cover, user guide and warranty sheet
Compliance certificates	RoHS
