StarTech.com SAT32M225 interface cards/adapter Internal M.2
26.92 CAD
Skip to product information
5 left
StarTech.com SAT32M225 interface cards/adapter Internal M.2
Part number
SAT32M225
26.92 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.113 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Open-frame steel mounting bracket
- Supports 7mm or larger 2.5" SATA bays
- Supports B key M.2 SATA SSDs
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- 2.5in SATA form factor housing

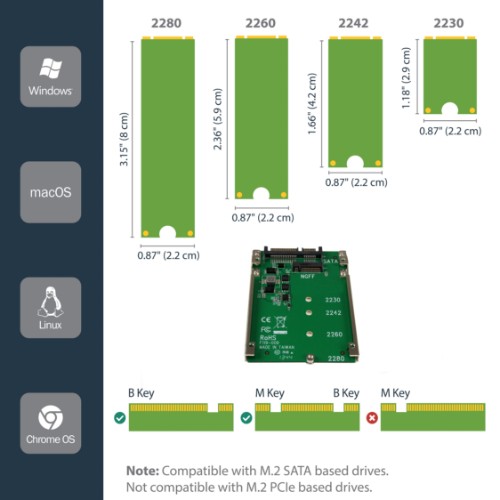

- Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
- Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
M.2 SATA NGFF to 2.5 in. SATA | 7mm High | SATA 6Gbps | Open Frame
Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.
Boost System Performance
Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.
Hassle-Free Setup

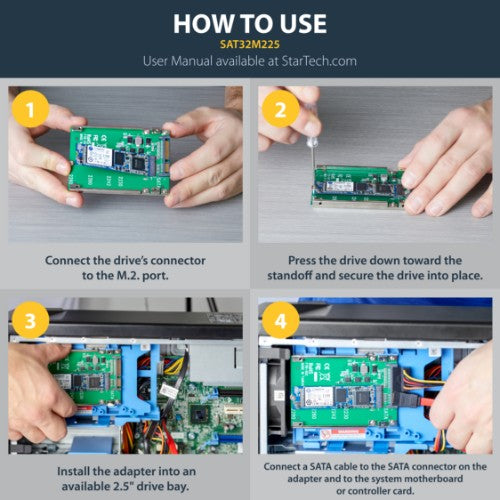

This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.
Open-Frame Design
The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.
SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.
Boost System Performance
Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.
Hassle-Free Setup
This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.
Open-Frame Design
The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.
SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | SATA |
| Output interface | M.2 |
| SATA revision | 3.0 |
| Performance | |
| Hot-swap | No |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Green |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Internal | Yes |
| Hot-swap | No |
| Product colour | Green |
| Certification | CE, FCC |
| Features | |
| Data transfer rate (max) | 6 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Technical details | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |

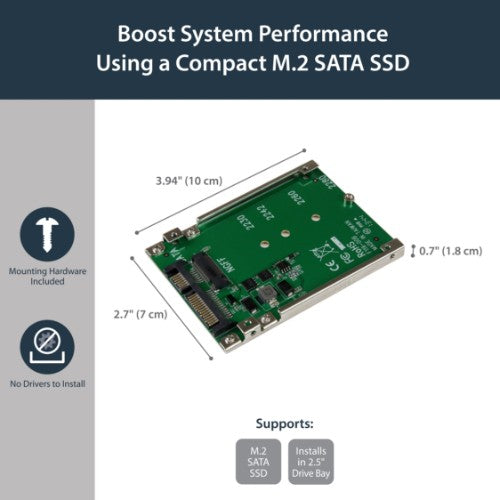

| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Height | 0.276" (7 mm) |
| Weight | 1.27 oz (36 g) |
| Package width | 6.89" (175 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 3.6 oz (102 g) |
| Packaging data | |
| Manual | Yes |
| Package width | 6.89" (175 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 3.6 oz (102 g) |

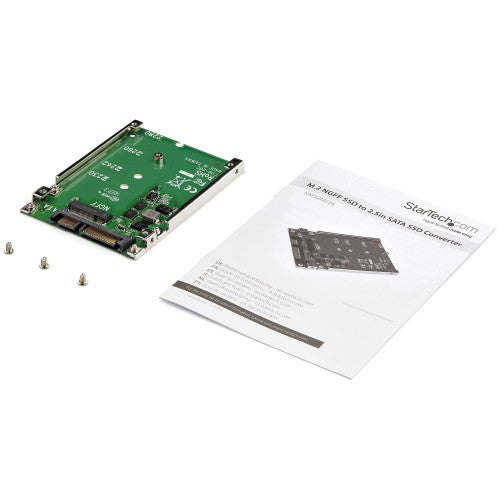

| Screws included | Yes |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 15.1" (383 mm) |
| Master (outer) case length | 19.6" (499 mm) |
| Master (outer) case height | 12.4" (315 mm) |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Manual | Yes |
| Screws included | Yes |
