Decouples virtual overlay network layer from the physical NIC performance.
Auto negotiates to 10GbE for immediate future proofing.
RDMA over Converged Ethernet (RoCE) for greater server efficiency and lower latency.
Contains VMA, an included firmware with many benefits such as lower latency, higher throughput, improved CPU utilization and minimal buffer copies between user data and hardware.

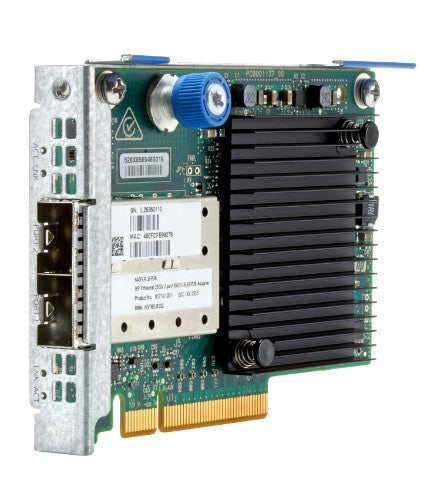

HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter
Part number
817749-B21
$1,185.33 CAD
HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter, Internal, Wired, PCI Express, Ethernet / Fiber, 25 Mbit/s
Reasons To Buy
Address the Increasing Demand for an Overlay Network
The HPE Ethernet 10/25Gb 2-port FLR-SFP28 CX4 Adapter reduces the impact of overlay networking on host performance with tunnel offload support for VXLAN and NVGRE, increasing VM migration flexibility and network scale with minimal impact to performance.Decouples virtual overlay network layer from the physical NIC performance.
Auto negotiates to 10GbE for immediate future proofing.
More Efficient and Faster Way to Send Data with RDMA Over Converged Ethernet (RoCE)
The HPE Ethernet 10/25Gb 2-port FLR-SFP28 CX4 Adapter bypasses the TCP/IP stack and removes of a data copy step reducing overall latency to deliver accelerated performance for applications such as Microsoft Hyper-V Live Migration, Microsoft SQL and Microsoft SharePoint with SMB Direct.RDMA over Converged Ethernet (RoCE) for greater server efficiency and lower latency.
Lower Latency and Higher Throughput with Messaging Accelerator (VMA)
The HPE Ethernet 10/25Gb 2-port FLR-SFP28 CX4 Adapter reduces system latency for improved performance specifically for high-frequency trading operations while maintaining high message rates and hundreds of simultaneous connections.Contains VMA, an included firmware with many benefits such as lower latency, higher throughput, improved CPU utilization and minimal buffer copies between user data and hardware.
Description
HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet / Fiber. Maximum data transfer rate: 25 Mbit/sSpecifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet / Fiber |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| Bandwidth | |
| Maximum data transfer rate | 25 Mbit/s |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Network | |
| Maximum data transfer rate | 25 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000,25000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x |
| Quality of Service (QoS) support | Yes |
| Jumbo frames support | Yes |
| Design | |
| Internal | Yes |
| Compatible products | HPE ProLiant DL160 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant DL560 Gen10 Server HPE ProLiant DL580 Gen10 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4200 Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6000 – XL230a Gen9 Server HPE Apollo 6000 – XL250a Gen9 Server HPE Apollo 6500 – XL270d Gen10 Server |
| Component for | Server |
| Power | |
| Power consumption (typical) | 10.5 W |
| System requirements | |
| Compatible operating systems | None |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 4.77" (121.1 mm) |
| Depth | 0.539" (13.7 mm) |
| Height | 3.02" (76.7 mm) |
| Weight | 3.17 oz (90 g) |
| Performance | |
| Compatible products | HPE ProLiant DL160 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant DL560 Gen10 Server HPE ProLiant DL580 Gen10 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4200 Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6000 – XL230a Gen9 Server HPE Apollo 6000 – XL250a Gen9 Server HPE Apollo 6500 – XL270d Gen10 Server |
| Processor model | Yes |
| Built-in processor | Yes |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Other features | |
| Compatible operating systems | None |
| Processor model | Yes |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
