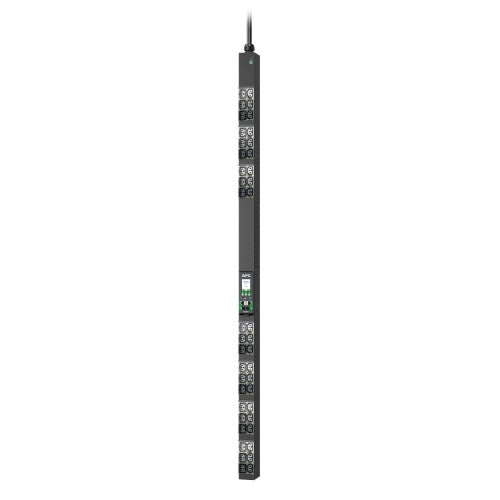

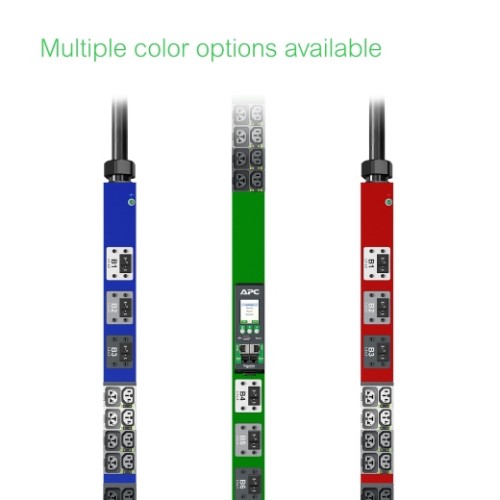

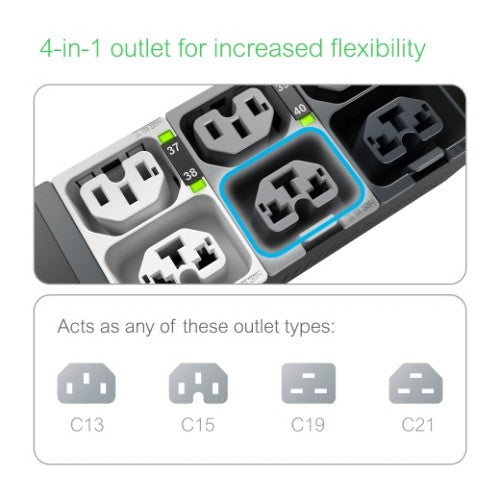

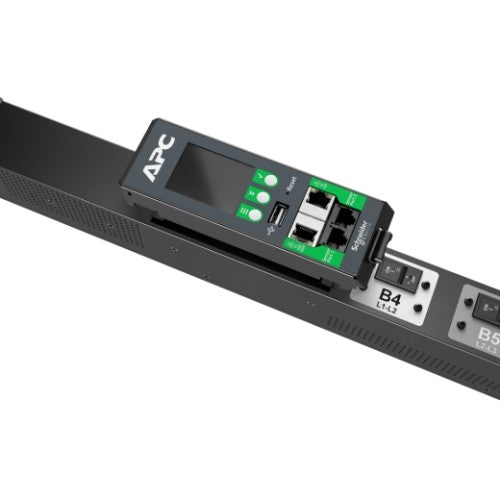

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.

Design
PDU types	Switched
Mounting	Vertical
On/off switch	Yes
Type	Three-phase

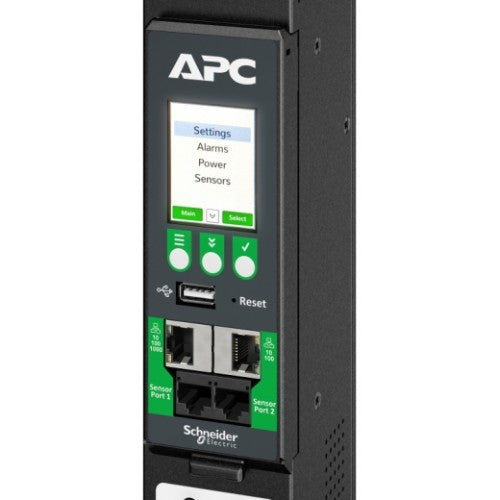

Display	LCD
Product colour	Black
Form factor	Rackmount
Regulatory Approvals	CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
Rack capacity	0U
Ports & interfaces

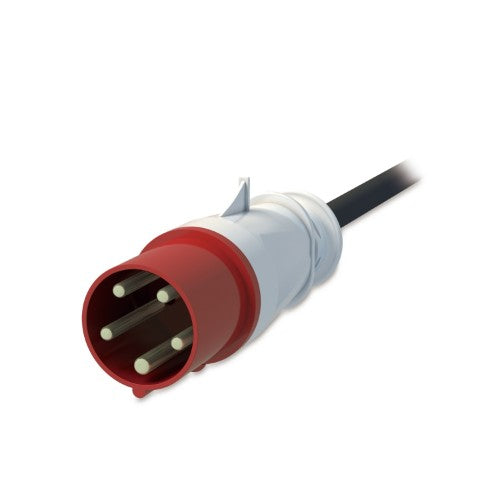

Power plug	IEC 60309
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler
USB ports quantity	1
Ethernet LAN (RJ-45) ports	2
Features
LED indicators	Activity, Network, Power
Cable length	70.9" (1.8 m)
Daisy chain	Yes
Surge protection	Yes
Colour-coded outlets	Yes
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection	Yes
Compatible products	Compatible with most NetShelter SX enclosures and third-party racks
Reset button	Yes
Management features
Firmware upgradeable via	Network, USB
Firmware upgradeable	Yes
Monitoring	Current, Humidity, Power, Temperature, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Display	LCD
LED indicators	Activity, Network, Power
Cable length	70.9" (1.8 m)
Compatible products	Compatible with most NetShelter SX enclosures and third-party racks
Power
Nominal input voltage	400 V
Maximum power	11500 W
Maximum current	16 A
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	11500 VA
Maximum total current draw per phase	16 A
Power protection features	Overload
Surge protection	Yes
AC input frequency	50 - 60 Hz
Number of phases	3
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 600000" (0 - 15240 m)
Operating temperature (T-T)	23 - 140 °F
Weight & dimensions
Weight	15.9 lbs (7.2 kg)
Width	2.2" (56 mm)
Depth	2.95" (75 mm)
Height	58.7" (1490 mm)
Package width	8.19" (208 mm)
Package depth	4.57" (116 mm)
Package height	67.7" (1720 mm)
Package weight	20.3 lbs (9.2 kg)
Packaging data
Package width	8.19" (208 mm)
Package depth	4.57" (116 mm)
Package height	67.7" (1720 mm)
Package weight	20.3 lbs (9.2 kg)
Technical details
Total carbon footprint (kg of CO2e)	2894.37
Compliance certificates	RoHS
Security
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection	Yes
Logistics data
Total carbon footprint (kg of CO2e)	2894.37
