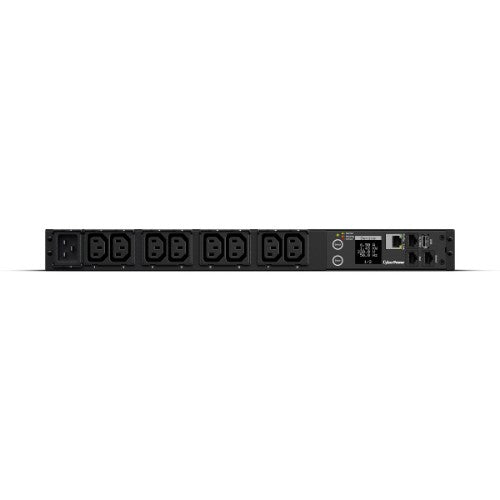

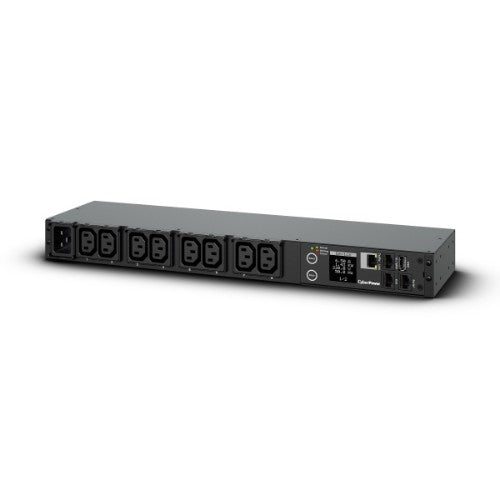

CyberPower PDU31005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments.

The digital LCD display is hot-swappable, color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the data center scenario.

Design
PDU types	Monitored
Mounting	Horizontal/Vertical
Type	Single-phase
Display	LCD
Product colour	Black
Certification	CE, FCC A, UL60950, EN 55032 A
Rack capacity	1U
Housing material	Steel
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
USB ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	Link, Status
Cable length	120.1" (3.05 m)
Certification	CE, FCC A, UL60950, EN 55032 A
Daisy chain	Yes
Management features
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Firmware upgradeable via	USB
Firmware upgradeable	Yes
Monitoring	Current, Power, Voltage
Ergonomics
Display	LCD
LED indicators	Link, Status
Cable length	120.1" (3.05 m)
Power
Nominal input voltage	100 - 240 V
Maximum current	16 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	17 x 4.41 x 1.73" (433 x 112 x 44 mm)
Weight	4.19 lbs (1.9 kg)
Width	17" (433 mm)
Depth	4.41" (112 mm)
Height	1.73" (44 mm)
Package width	19.7" (500 mm)
Package depth	9.84" (250 mm)
Package height	2.56" (65 mm)
Package weight	8.16 lbs (3.7 kg)
Packaging data
Package width	19.7" (500 mm)
Package depth	9.84" (250 mm)
Package height	2.56" (65 mm)
Package weight	8.16 lbs (3.7 kg)
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 137795.3" (0 - 3500 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Operating temperature (T-T)	32 - 131 °F
Technical details
Compliance certificates	RoHS
