Deliver bright and brilliant messages, built for the outdoors
Samsung’s OH46B features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH46B is packed with robust hardware, helping to ensure longevity and flexibility.

Clear and vivid images
The OH46B is UL-verified for outdoor visibility with brightness levels over 3,500nits. Its 24/7 performance and polarisation technology eliminate display blindness from polarised lenses and delivers continuously crisp content with a built-in auto brightness sensor that adapts to external lighting.

Bright and vivid colours to support accurate communication and delivery
The OH46B delivers colour accuracy and brightness, creating vivid content through incredible colour reproduction of all red, green and blue shades. With customers expecting crisp content being, the OH46B’s uncompromised picture quality is designed to capture customer attention.

Brilliant visibility with anti-reflection technology
Magic Glass blocks solar radiation which increased the life of the display in direct sun conditions and improves visibility by reducing external reflection. It also includes an anti-graffiti coating preventing graffiti paint from bonding to the screen surface.

Optimised protection in a variety of outdoor conditions
With certified IP56-rated protection, OH46B delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimised operation in a variety of outdoor conditions for consistent performance.

Limit humidity for optimal performance with newly added fans

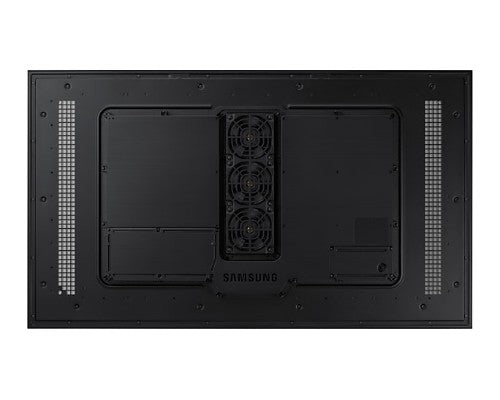

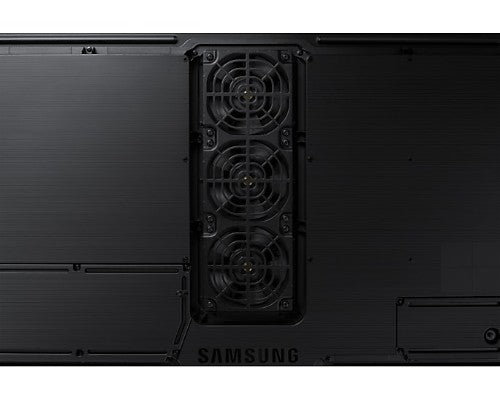

With four newly added, hidden fans in the downside of the display, the OH46B reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans helps operation.

Robust durability for screen safety
Fitted with tempered Magic Protection Glass, the Samsung OH46B provides durability that is IK10-rated, helping to provide safety and protection against external impact. This ensures the product is safe against unexpected damage, for better peace of mind.

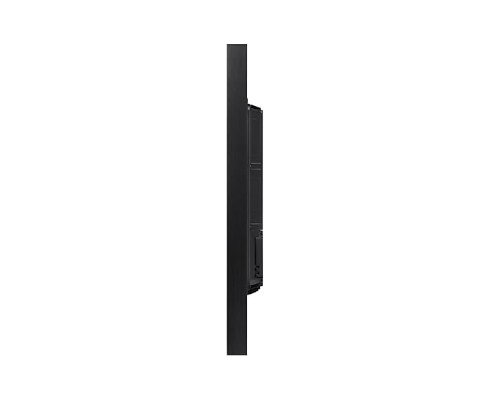

Powerful performance with slim design
A slim, all-in-one composition enables easy installation, and helps to support long-term performance through IP56 protection, anti-reflection technology, damage defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.

Smooth content playback
The embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures smooth transitions and playback to deliver a better experience for both customers and store managers.

Powerful, protective security
The OH46B uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and helps minimise successful security attacks.

Display
Display diagonal	46"
Display resolution	1920 x 1080 pixels
Display brightness	3500 cd/m²
HD type	Full HD
Response time	6 ms
Contrast ratio (typical)	6000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0209 x 0.0209" (0.53 x 0.53 mm)
Dynamic contrast ratio marketing name	Mega Contrast
Vertical scan range	24 - 75 Hz
Panel type	VA
Horizontal scan range	30 - 136 kHz
Display technology	LCD
RGB colour space	NTSC

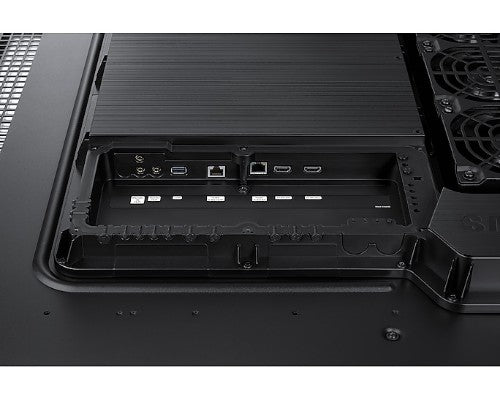

Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	2
HDMI version	2.1
DVI port	No
USB port	Yes
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes
USB ports quantity	1
HDMI input ports quantity	2
Design
Product design	Digital signage flat panel
Product colour	Black
VESA mounting	Yes
Panel mounting interface	995 x 500 mm
Placement supported	Outdoor
Orientation	Horizontal/Vertical
Bezel width (top)	0.98" (2.49 cm)
Bezel width (side)	0.98" (2.49 cm)
Bezel width (bottom)	0.98" (2.49 cm)
Performance
Purpose	Commercial
International Protection (IP) code	IP56
HDCP	Yes
Power
Power consumption (typical)	430 W
AC input voltage	100 - 240 V
Power consumption (sleep)	0.5 W
Computer system
Operating system installed	Tizen 5.0
Internal storage capacity	8 GB
Weight & dimensions
Display width	42.1" (1069 mm)
Display depth	3.35" (85 mm)
Display height	24.6" (623.6 mm)
Display weight	79.4 lbs (36 kg)
Packaging data
Package width	45.5" (1156 mm)
Package depth	7.87" (200 mm)
Package height	28.1" (713 mm)
Package weight	89.3 lbs (40.5 kg)
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 80%
Thin Client
Operating system installed	Tizen 5.0
Internal storage capacity	8 GB
Technical details
Panel type	VA
Other features
Panel type	VA
Display technology	LCD
Bezel width (top)	0.98" (2.49 cm)
Bezel width (side)	0.98" (2.49 cm)
Bezel width (bottom)	0.98" (2.49 cm)
