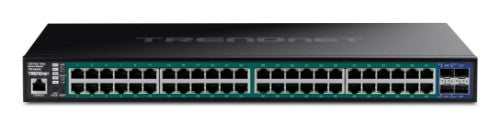

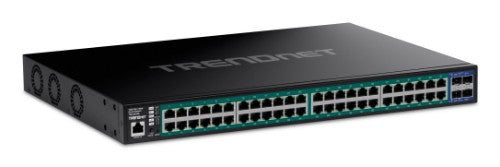

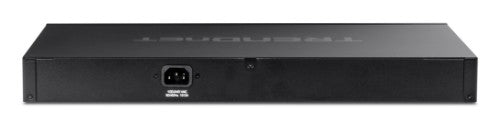

TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524S, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Management features
Switch type	Managed
Reset button	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Number of VLANs	4094
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
10G support	Yes
Half duplex	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	176 Gbit/s
Jumbo frames	9000
Jumbo frames support	Yes
Packet buffer memory	2 MB
Forwarding rate	130.95 Mpps
Number of VLANs	4094
Security
IGMP snooping	Yes
DHCP features	DHCP snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v1, v2c, v3
Design
Rack mounting	Yes
Product colour	Black
Reset button	Yes
LED indicators	Yes
Number of fans	3 fan(s)
Certification	CE FCC UL
Performance
Noise level	42.7 dB
Mean time between failures (MTBF)	74330 h
Packet buffer memory	2 MB
Power
Power supply included	Yes
Power protection features	Over current, Short circuit
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	57.4 W
Power source	AC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	410 W
Power over Ethernet (PoE) type supported	PoE+
Power protection features	Over current, Short circuit
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	17.3" (440 mm)
Depth	12.2" (310 mm)
Height	1.73" (44 mm)
Weight	10.5 lbs (4.75 kg)
Certificates
Certification	CE FCC UL
Other features
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
