Skip to product information
In stock
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

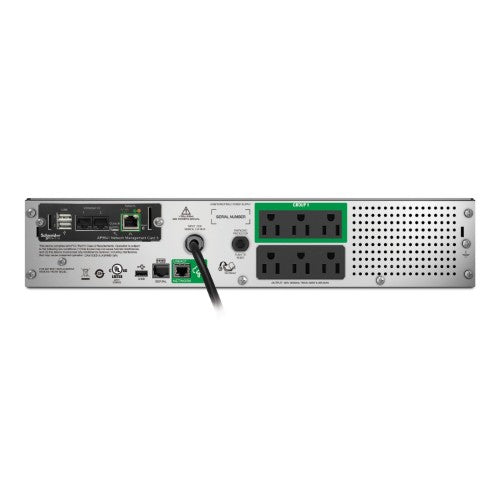

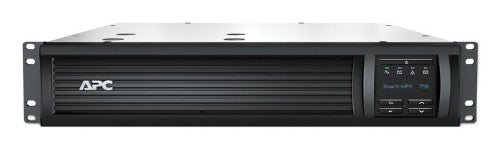

APC SMT750RM2UCNC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 0.4 W 6 AC outlet(s)
Part number
SMT750RM2UCNC
$1,364.33 CAD
0.75 kVA, 0.4 kW, 110-125V, 50/60Hz, 680J, 70 BTU/h, 41 dB, LCD
Description
DescriptionThis APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
| Power | |
|---|---|
| Output power capacity | 0.75 kVA |
| Output power | 0.4 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 125 V |
| Surge energy rating | 680 J |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Output frequency | 50/60 Hz |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 94.5" (2.4 m) |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| USB port | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| USB 2.0 ports quantity | 3 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port type | USB Type-A |
| Performance | |
| UPS topology | Line-Interactive |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Response time | 10 ms |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Noise level | 41 dB |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.75 kVA |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Response time | 10 ms |
| Output power | 0.4 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 125 V |
| Surge energy rating | 680 J |
| Waveform | Sine |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Noise level | 41 dB |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |
| Heat dissipation | 70 BTU/h |
| Battery | |
| Battery life (max) | 6 year(s) |
| Battery technology | Lead-Acid |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black |
| Cable length | 94.5" (2.4 m) |
| LED indicators | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 600000" (0 - 15240 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | cULus |
| Weight & dimensions | |
| Width | 17" (432 mm) |
| Depth | 16.1" (409 mm) |
| Height | 3.39" (86 mm) |
| Weight | 39 lbs (17.7 kg) |
| Package width | 22.4" (570 mm) |
| Package depth | 21.1" (535 mm) |
| Package height | 9.25" (235 mm) |
| Package weight | 50.3 lbs (22.8 kg) |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Rack mount kit | Yes |
| Package width | 22.4" (570 mm) |
| Package depth | 21.1" (535 mm) |
| Package height | 9.25" (235 mm) |
| Package weight | 50.3 lbs (22.8 kg) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Rack mount kit | Yes |
