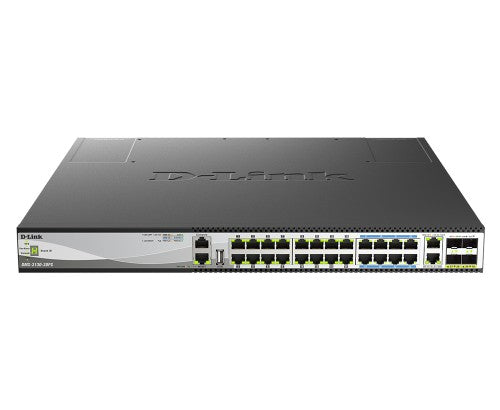

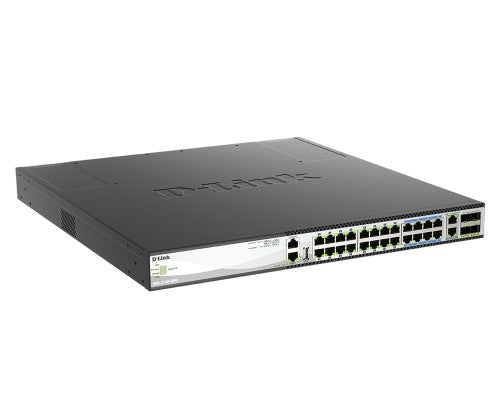

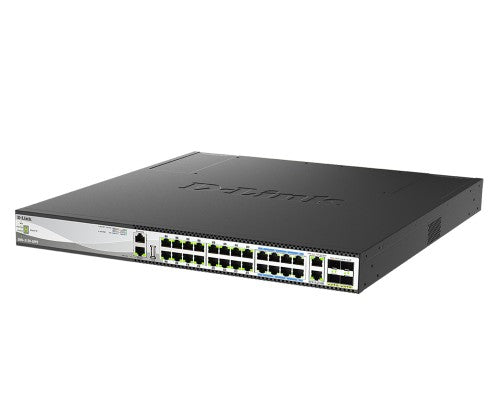

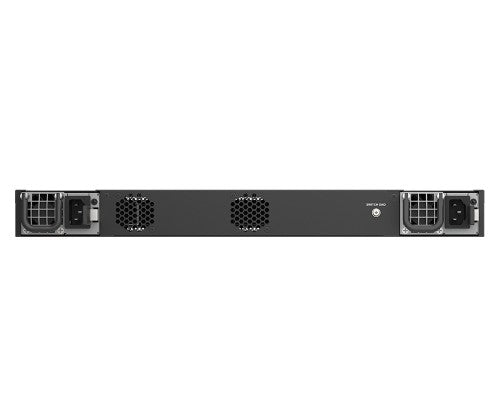

D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
4,132.18 CAD
Skip to product information
Out of stock
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Part number
DMS-3130-30PS
4,132.18 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
6.54 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
The DMS-3130 Series is a range of Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. The DMS-3130 Series has PoE and non-PoE models equipped with multi-Gigabit Ethernet and SFP network connection options. The DMS-3130 Series includes models equipped with multiGigabit Ethernet and SFP28 network connection options. The DMS-3130-30PS provides 16 PoE ports using 802.3af and 802.3at, and 8 ports using 802.3bt 60W PoE standards with default power budgets of 740 watts and the potential to be expanded to 960 watts with dual power supplies. Each model boasts 2 10GBASE-T ports and 4 10/25G SFP28 ports to provide versatility and speed. This series is also equipped with a USB 2.0 port, allowing users to boot images and upload configuration files directly from, as well as conveniently save syslog files to a USB 2.0 storage device.
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| SFP28 ports quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Number of VLANs | 4000 |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| MAC address table | 32768 entries |
| Switching capacity | 400 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
| Forwarding rate | 298 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Access Control List (ACL) ingress | 3072 |
| Access Control List (ACL) egress | 1024 |
| DHCP features | DHCP guarding, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Form factor | 1U |
| Number of fans | 2 fan(s) |
| Certification | FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Performance | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Mean time between failures (MTBF) | 277222.63 h |
| Stackable | Yes |
| Packet buffer memory | 4 MB |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 1211.5 W |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 4137.73 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 18.5" (470 mm) |
| Height | 1.73" (44 mm) |
| Weight | 14.4 lbs (6.54 kg) |
| Certificates | |
| Certification | FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
