Tripp Lite SRW10US rack cabinet 10U Wall mounted rack Black
650.76 CAD
Skip to product information
In stock
Tripp Lite SRW10US rack cabinet 10U Wall mounted rack Black
Part number
SRW10US
650.76 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
26.76 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 200 lbs (90.7 kgs)
- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 10U of 19 in. rack equipment up to 20.5 in. deep

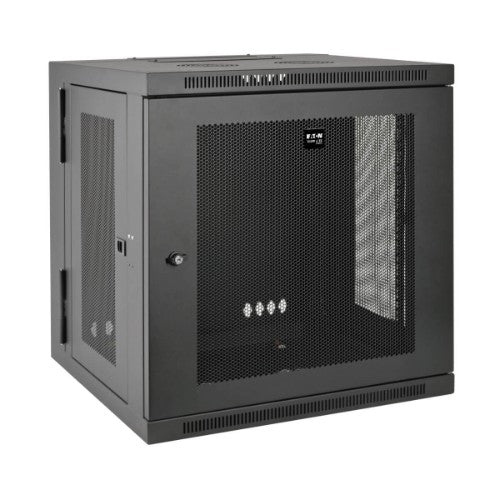

The SRW10US SmartRack® 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

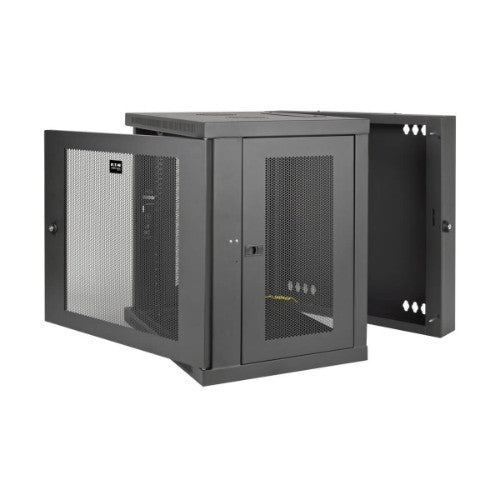

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

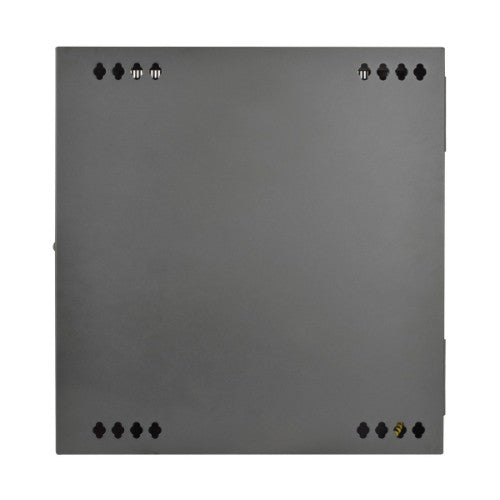

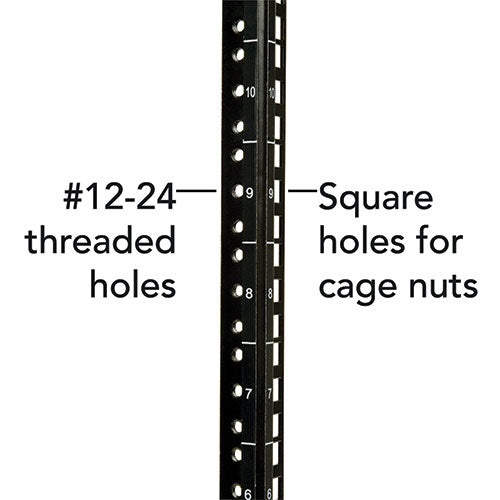

The SRW10US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW10US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
| Weight & dimensions | |
|---|---|
| Package width | 26.4" (670.1 mm) |
| Package depth | 24.1" (612.9 mm) |
| Package height | 24.3" (616 mm) |
| Package weight | 59.1 lbs (26.8 kg) |
| Width | 23.6" (600.2 mm) |
| Depth | 21.6" (549.4 mm) |
| Height | 21.6" (547.6 mm) |
| Weight | 53.4 lbs (24.2 kg) |
| Features | |
| Type | Wall mounted rack |
| Rack capacity | 10U |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Product colour | Black |
| Certification | EIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20, UL 60950 |
| Packaging data | |
| Package width | 26.4" (670.1 mm) |
| Package depth | 24.1" (612.9 mm) |
| Package height | 24.3" (616 mm) |
| Package weight | 59.1 lbs (26.8 kg) |
| Technical details | |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 10U |
| Logistics data | |
| Master (outer) case width | 26.4" (670.1 mm) |
| Master (outer) case length | 24.1" (612.9 mm) |
| Master (outer) case height | 24.3" (616 mm) |
| Master (outer) case gross weight | 59.1 lbs (26.8 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
