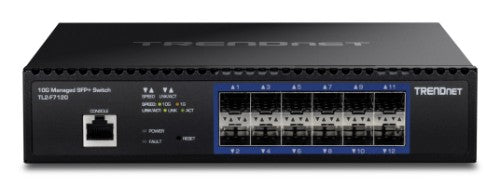

Trendnet TL2-F7120 network switch Managed 1U Black
477.56 CAD
Skip to product information
In stock
Trendnet TL2-F7120 network switch Managed 1U Black
Part number
TL2-F7120
477.56 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.6 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 12 x 10G SFP+ slots
- Support 1Gbps / 10Gbps link speeds
- Web-based management
- CLI management
- Supports IPv6, LACP, VLAN, and IGMP Snooping
- 802.1Q tagged-based VLAN, GVRP, and Voice VLAN support
- QoS with queue scheduling support
- Supports inter-VLAN routing and IPv4/IPv6 static routing
- 240Gbps switching capacity
- Supports 10GBASE-X / 1000BASE-FX SFP fiber modules
- Smart fan

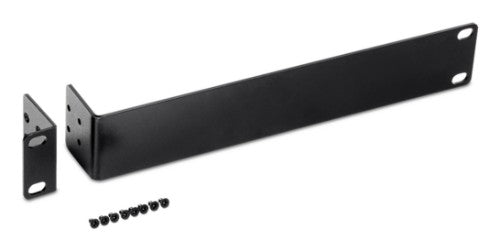

- Save rack space by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 12-Port 10G Layer 2 Managed SFP+ Switch, model TL2-F7120, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches TL2-F7120 by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and
prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
| Management features | |
|---|---|
| Switch type | Managed |
| Multicast support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 12 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3au, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Jumbo frames | 10000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Forwarding rate | 178.6 Mpps |
| Number of VLANs | 4094 |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| Number of fans | 1 fan(s) |
| Certification | CE FCC UL |
| Performance | |
| Noise level | 38.6 dB |
| Packet buffer memory | 2 MB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 20 W |
| Input current | 1.5 A |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Virtual LAN features | |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 8.27" (210 mm) |
| Depth | 9.06" (230 mm) |
| Height | 1.73" (44 mm) |
| Weight | 3.53 lbs (1.6 kg) |
| Certificates | |
| Certification | CE FCC UL |
