APC AP4431A power distribution unit (PDU) 1 AC outlet(s) 2U Black
2,049.97 CAD
Skip to product information
Out of stock
APC AP4431A power distribution unit (PDU) 1 AC outlet(s) 2U Black
Part number
AP4431A
2,049.97 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
9.355 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

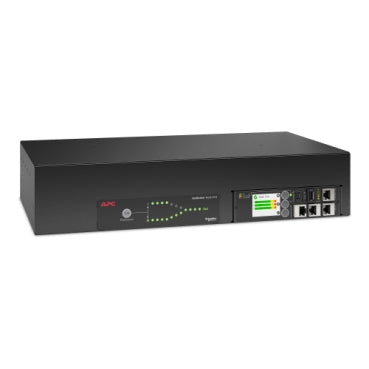

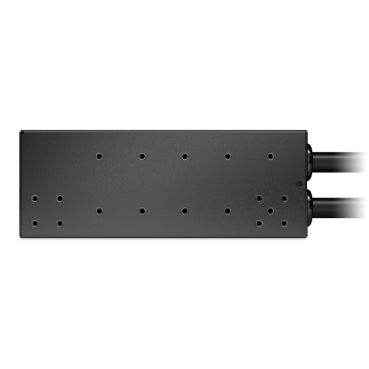

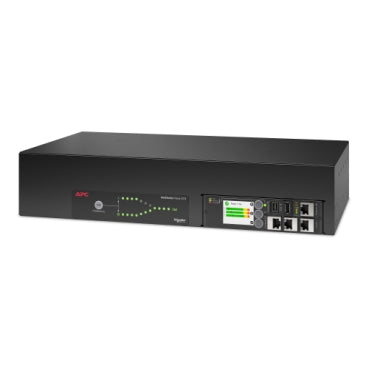

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4431A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4431A is single phase 2U Rack ATS with 30A rated current, 208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L6-30P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| Design | |
|---|---|
| PDU types | Switched |
| Mounting | Horizontal |
| Product colour | Black |
| Rack capacity | 2U |
| Ports & interfaces | |
| AC outlets quantity | 1 AC outlet(s) |
| AC outlet types | NEMA L6-30R |
| Features | |
| Cable length | 96.1" (2.44 m) |
| Ergonomics | |
| Cable length | 96.1" (2.44 m) |
| Power | |
| Nominal input voltage | 228 V |
| Maximum current | 30 A |
| Nominal output voltage | 228 V |
| Load capacity | 4992 VA |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Weight | 14.3 lbs (6.5 kg) |
| Width | 17" (432 mm) |
| Depth | 9.29" (236 mm) |
| Height | 3.46" (88 mm) |
| Package width | 23" (584 mm) |
| Package depth | 14" (356 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 19.8 lbs (9 kg) |
| Packaging data | |
| Package width | 23" (584 mm) |
| Package depth | 14" (356 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 19.8 lbs (9 kg) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 745.85 |
