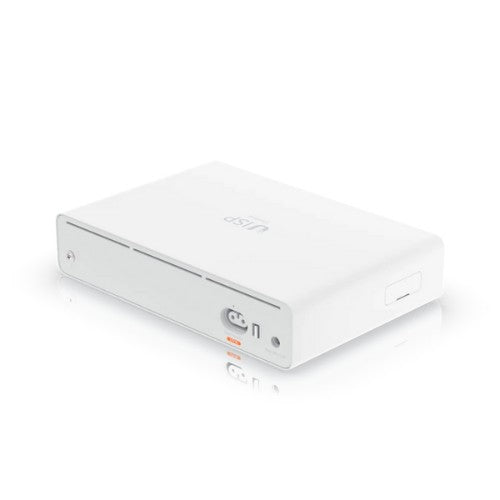

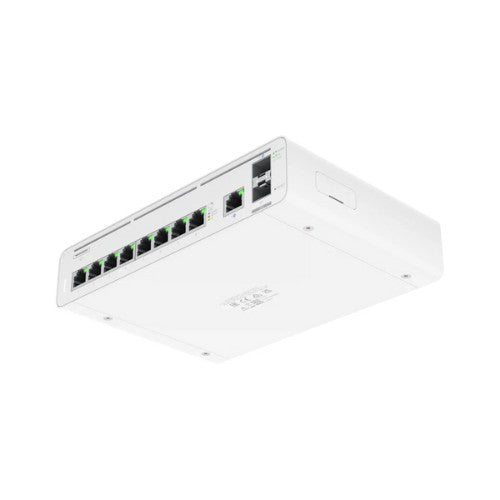

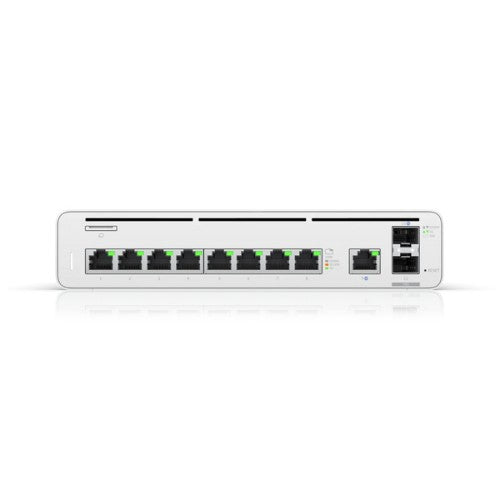

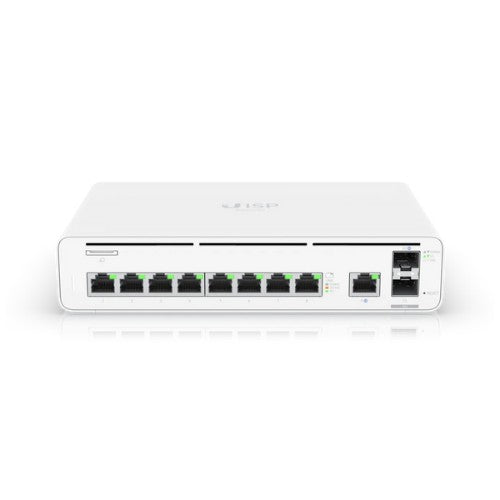

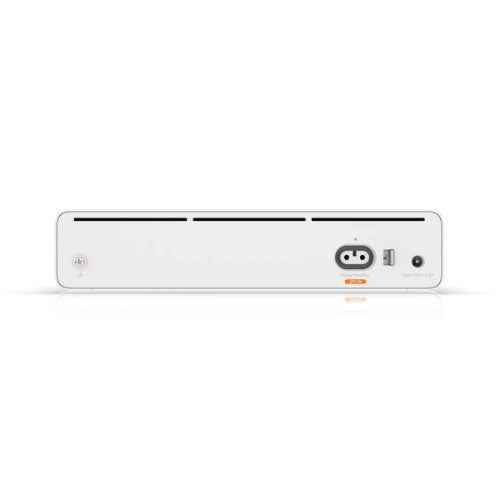

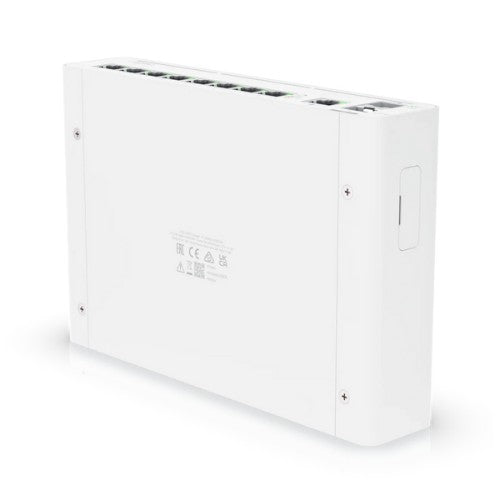

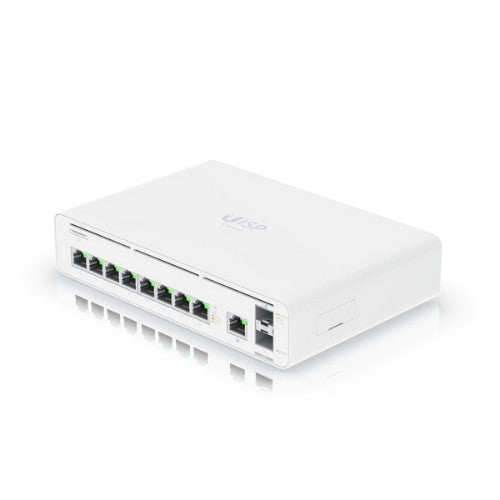

Ubiquiti UISP Console gateway/controller 10, 100, 1000 Mbit/s
151.33 CAD
Skip to product information
In stock
Ubiquiti UISP Console gateway/controller 10, 100, 1000 Mbit/s
Part number
UISP-CONSOLE
151.33 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.45 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- (2) 10G SFP+ ports
- (9) GbE RJ45 ports
- Powered by an external AC/DC adapter (included)
- Compact, durable metal casing
- 1U rack or wall-mountable (kits included)
- Easy, Bluetooth-powered setup via the UISP Mobile app
- Pre-installed UISP application
The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.
| Design | |
|---|---|
| LED indicators | Yes |
| Certification | CE, FCC, IC |
| Rack capacity | 1U |
| Product colour | White |
| Enclosure material | Metal |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Number of processors installed | 1 |
| Internal memory type | DDR4 |
| Internal memory | 4 MB |
| Flash memory | 16000 MB |
| Control display unit | No |
| Processor model | Cortex-A57 |
| Processor family | ARM Cortex |
| SSD capacity | 128 GB |
| Certification | CE, FCC, IC |
| Rack capacity | 1U |
| Product colour | White |
| Enclosure material | Metal |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 8 |
| Power | |
| Input voltage | 24 - 28 V |
| Power consumption (max) | 30 W |
| Weight & dimensions | |
| Weight | 3.2 lbs (1.45 kg) |
| Width | 8.28" (210.4 mm) |
| Height | 1.72" (43.7 mm) |
| Depth | 5.52" (140.2 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Number of processors installed | 1 |
| Indication | |
| LED indicators | Yes |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 MB |
| Flash memory | 16000 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Certification | CE, FCC, IC |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Number of processors installed | 1 |
