Mounts Your TV or Monitor on the Wall for a Perfect Viewing Angle
Recommended for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this low-profile TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most curved- and flat-screen displays from 26 to 70 inches and up to 165 pounds (75 kilograms).

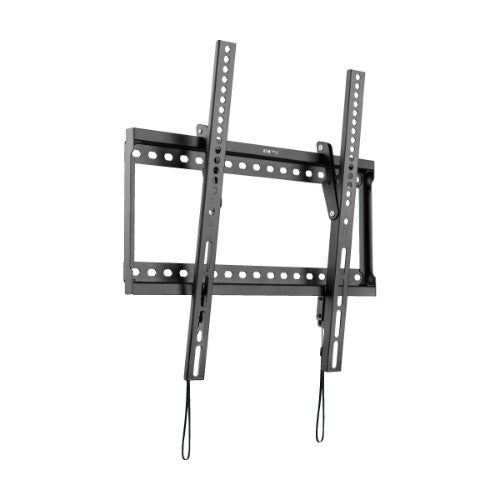

Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications
You can adjust the horizontal angle of your display from -8° to +0°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.

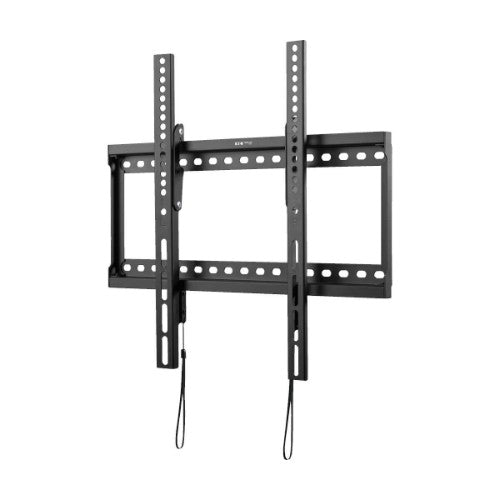

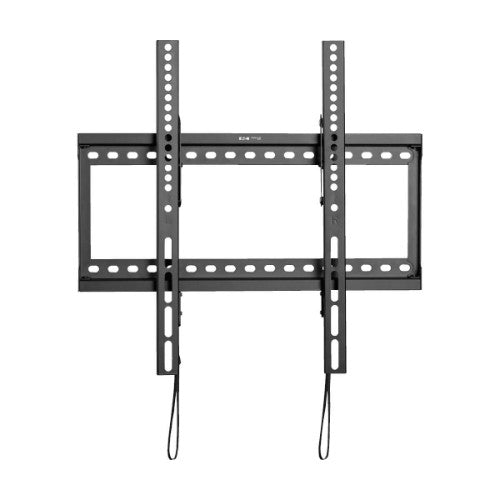

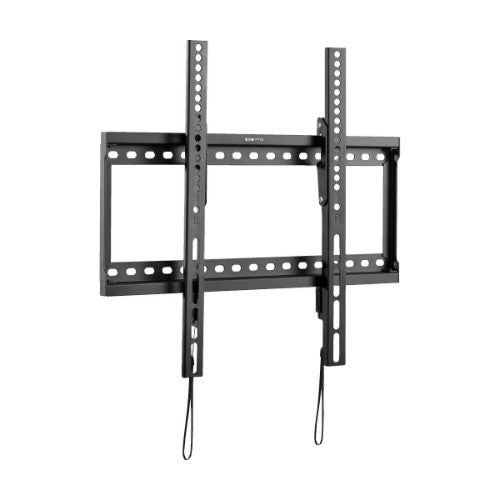

Durable All-Metal Construction Provides Convenient Cable Access
The DWT2670XE is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Its open frame design with smooth edges enables easy access to cabling. Horizontal mounting rails adjust to compensate for off-center wall studs. Removing and replacing the display is fast and simple using the automatic spring locks with quick-release cords.

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 50 x 50, 75 x 75, 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 400, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300 and 400 x 400. Mounting hardware is included.

Mounting
Maximum weight capacity	165.3 lbs (75 kg)
Minimum screen size	26"
Maximum screen size	70"
Panel mounting interface	50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	1.97 x 1.97" (50 x 50 mm)
Maximum VESA mount	15.7 x 15.7" (400 x 400 mm)
Ergonomics
Tilt angle range	-8 - 0°
Distance to the wall (max)	1.46" (3.7 cm)
Suitable for curved screen	Yes
Tilt adjustment	Yes
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Wall
Country of origin	China
Quantity per pack	1 pc(s)
Sustainability compliance	Yes
Compliance certificates	REACH, RoHS
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	17.2" (437.9 mm)
Depth	1.5" (38.1 mm)
Height	16.5" (420.1 mm)
Weight	2.65 lbs (1.2 kg)
Packaging data
Package width	4.65" (118.1 mm)
Package depth	1.57" (39.9 mm)
Package height	17.5" (444.5 mm)
Package weight	3.09 lbs (1.4 kg)
Mounting kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	10.3" (261.6 mm)
Master (outer) case length	5.71" (145 mm)
Master (outer) case height	18.1" (459.7 mm)
Master (outer) case gross weight	41.4 lbs (18.8 kg)
Products per master (outer) case	6 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332275773
Harmonized System (HS) code	8302.50.0000
Other features
Mounting type	Wall
Country of origin	China
