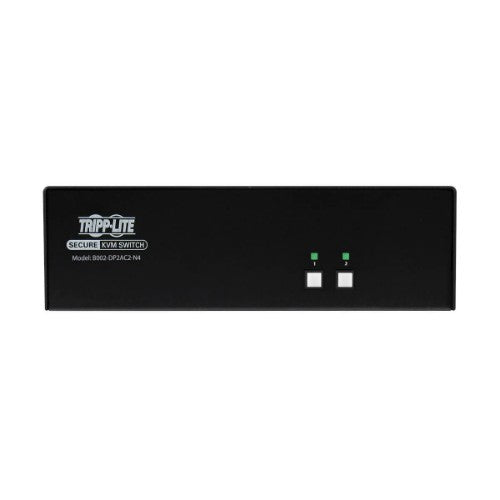

2-Port DisplayPort KVM Switch Is Ideal for Applications That Demand Secure Networks
This two-port KVM switch is recommended for any government, military, finance, education or healthcare environment where tight security of sensitive data is of utmost importance in a world of constantly changing cyberthreats. Each KVM port is an electronically isolated channel, making it impossible for data to be transferred between connected computers through the KVM, even when the computers are of different security levels. The dual-monitor switch supports crystal-clear Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz.

NIAP PP4.0 Certified to Meet Today’s Top Information Assurance Standards
This KVM switch is certified by NIAP (National Information Assurance Partnership), which is operated by the National Security Agency (NSA), to the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 4.0. Discrete processing paths to each connected system prevent data leakage, transfer and crosstalk between adjacent ports. Peripheral isolation enables data to flow from device to host only.

Top-of-the-Line Security Features Keep Your Data Safe
Special protection prevents re-programming of firmware, so the switch’s KVM logic remains unaltered. The keyboard buffer clears automatically after data transmission, ensuring no information is left stored. Plus, you can only access connected computers via buttons on the switch’s panel. Other port-switching methods, such as on-screen display (OSD) and hotkey commands, have been excluded to further ensure data integrity.

CAC Port Supports Biometric and Other Smart Card Readers
The Common Access Card port supports smart cards, scanners and biometric readers, including fingerprint readers, to bolster security. You may assign and register specific peripherals to the CAC port, providing a secure connection for user authentication.

Anti-Tampering Protection Prevents Physical Breeches
If the housing is opened, internal anti-tamper switches will disable the unit, causing it to become inoperable and the front-panel LEDs to flash repeatedly. Seals on the enclosure will provide visual evidence of tampering.

Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching
Full USB device filtering ensures support for keyboard and mouse only — no flash drives allowed. This KVM switch also supports secure video emulation and EDID learning, which prevents unwanted data from transmitting through the DDC lines. Both keyboard/mouse and video emulation controllers restrict discovery of newly connected peripherals or monitors during switching operations, shielding your computers from potential vulnerabilities.

Accessory P783 Series Cable Kits - P783-006-DPU and P783-010-DPU
P783-006-DPU and P783-010-DPU KVM cable kits (sold separately) help eliminate unnecessary clutter and save you money by combining cables into one convenient kit. These cables comply with HDCP 2.2 and DisplayPort 1.2 standards and support USB 2.0 speeds up to 480 Mbps.

TAA-Compliant for GSA Schedule Purchases
The B002-DP2AC2-N4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

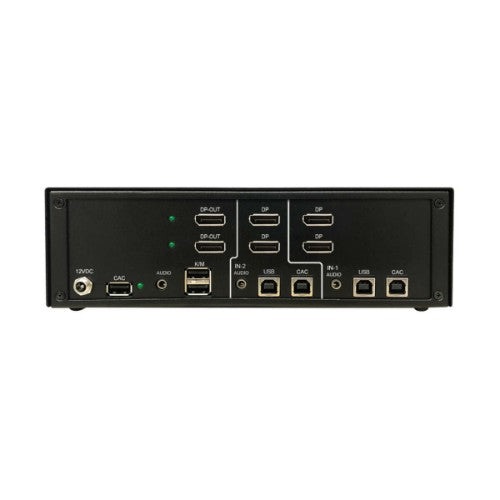

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
USB connector type	USB Type-A, USB Type-B
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
DisplayPorts quantity	6
Headphone outputs	2
DC-in jack	Yes
Console USB ports quantity	3
Console ports	3.5mm headphone, DisplayPort, USB A
USB 2.0 Type-B ports quantity	4
Cable length	59.1" (1.5 m)
HDCP	Yes
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Design
Product colour	Black
Cable length	59.1" (1.5 m)
Rack mounting	No
Push button	Yes
LED indicators	Yes
Certification	CE; UKCA; cUL, NOM (Mexico), NIAP PP4.0; RoHS; CE (Europe); UKCA; FCC (USA)
Housing material	Metal
Country of origin	United States
Display
Built-in display	No
Power
Output voltage	12 V
AC input frequency	50 - 60 Hz
Input current	1.3 A
Power source	DC
Output current	3 A
External power adapter	Yes
Input voltage	100 - 240 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Features
Country of origin	United States
Sustainability
Compliance certificates	RoHS, Federal Communications Commission (FCC), UKCA, CE
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	8.8" (223.5 mm)
Depth	6.69" (169.9 mm)
Height	3.41" (86.6 mm)
Weight	3.86 lbs (1.75 kg)
Package width	11" (279.4 mm)
Package depth	16" (406.4 mm)
Package height	4" (101.6 mm)
Package weight	6 lbs (2.72 kg)
Packaging data
Package type	Box
Package width	11" (279.4 mm)
Package depth	16" (406.4 mm)
Package height	4" (101.6 mm)
Package weight	6 lbs (2.72 kg)

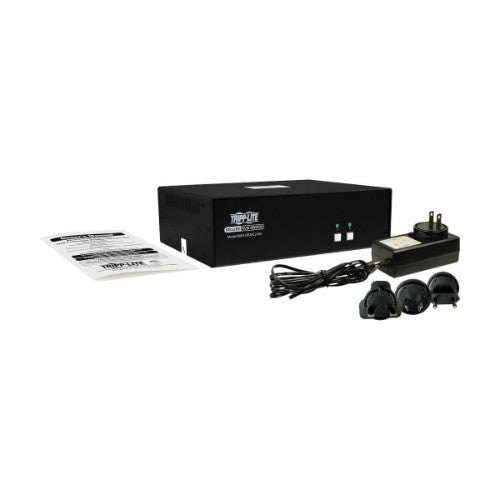

Packaging content
Cables included	DC
Manual	Yes
Package type	Box
Certificates
Certification	CE; UKCA; cUL, NOM (Mexico), NIAP PP4.0; RoHS; CE (Europe); UKCA; FCC (USA)
Technical details
Compliance certificates	RoHS, Federal Communications Commission (FCC), UKCA, CE
Other features
Push button	Yes
Logistics data
Country of origin	United States
Master (outer) case width	19" (482.6 mm)
Master (outer) case length	25" (635 mm)
Master (outer) case height	19" (482.6 mm)
Master (outer) case gross weight	45 lbs (20.4 kg)
Products per master (outer) case	12 pc(s)
Harmonized System (HS) code	8471.80.4000
