Delivers 120V single-phase AC power to multiple loads while also protecting connected equipment from dangerous surges and spikes.

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

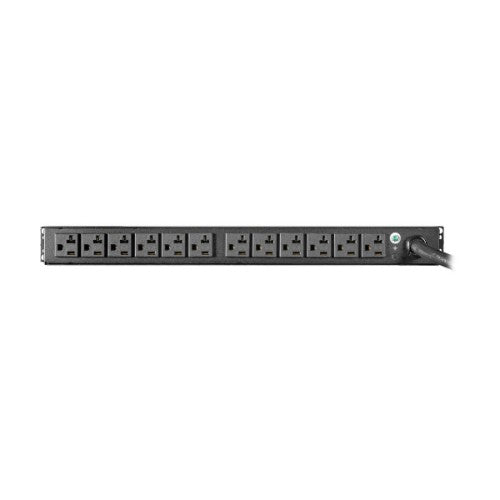

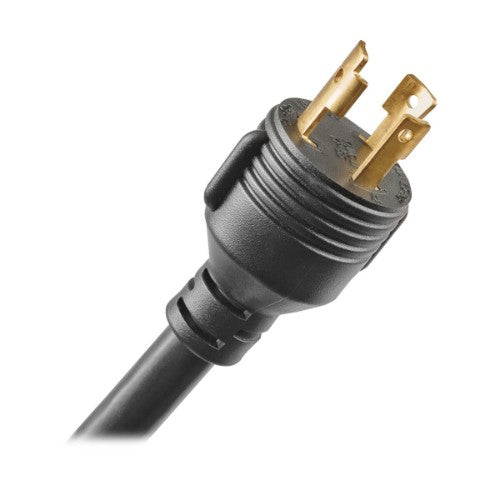

This basic PDU is an ideal no-frills unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUH30-ISO features 12 NEMA 5-15/20R outlets in two separately breakered load banks. A 15-foot (4.6-meter) cord with L5-30P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.

3840 Joules per Load Bank Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUH30-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.

Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Circuit breakers protect connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.

TAA-Compliant for GSA Schedule Purchases
The PDUH30-ISO is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Design
PDU types	Basic
Mounting	Horizontal/Vertical
Type	Single-phase
Product colour	Black
Rack capacity	0U/1U
Housing material	Steel
Ports & interfaces
Power plug	NEMA L5-30P
AC outlets quantity	12 AC outlet(s)
AC outlet types	NEMA 5-20R
Features
LED indicators	Yes
Cable length	179.9" (4.57 m)
EMI/RFI noise filtering	Yes
Ergonomics
LED indicators	Yes
Cable length	179.9" (4.57 m)
Power
Nominal input voltage	120 V
Maximum power	2880 W
Maximum current	24 A
Surge energy rating	3840 J
Nominal output voltage	120 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Weight	8.69 lbs (3.94 kg)
Width	18.9" (479 mm)
Depth	4.83" (122.7 mm)
Height	1.72" (43.7 mm)
Package width	20.3" (515.1 mm)
Package depth	11.2" (285 mm)
Package height	3.07" (78 mm)
Package weight	9.77 lbs (4.43 kg)
Packaging data
Package width	20.3" (515.1 mm)
Package depth	11.2" (285 mm)
Package height	3.07" (78 mm)
Package weight	9.77 lbs (4.43 kg)
Packaging content
Manual	Yes
Rack mount kit	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 393700.8" (0 - 10000 m)
Operating temperature (T-T)	32 - 104 °F
Technical details
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	10037332255775
Compliance certificates	RoHS
Logistics data
Master (outer) case width	21.1" (537 mm)
Master (outer) case length	13.3" (337.1 mm)
Master (outer) case height	12.2" (309.9 mm)
Master (outer) case gross weight	41.4 lbs (18.8 kg)
Products per master (outer) case	4 pc(s)
Country of origin	Taiwan
