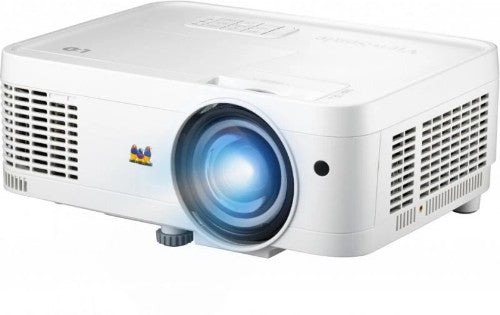

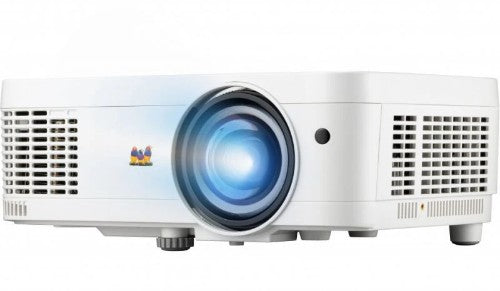

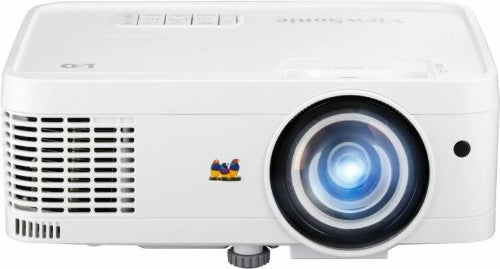

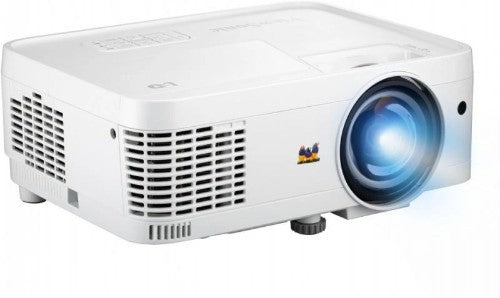

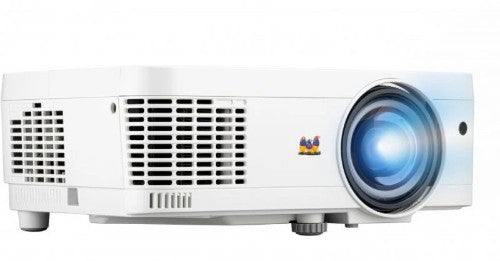

The LS560WH is ViewSonic’s lamp-free high brightness WXGA short throw projector for business and education. Adopting industry-leading 3rd generation LED technology, the LS560WH delivers 3,000 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The 0.49 short throw lens provides a 100” screen from just 1.1m away, delivering exceptional space efficiency and freeing presenters from blinding lights. The projector boasts incredible ease of use with instant power on/off, easy image correction with H/V keystone and 4 corner adjustment, and 360° tilt angle projection for flexible applications. Moreover, its comprehensive LAN control makes multiple device management a breeze and is compatible with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController.

3rd Generation LED Technology for Greater Sustainability
With the 3rd generation LED technology, the LS560WH frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future.

Saving More with the Advanced LED Technology
Adopting ams OSRAM’s Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.

Enhanced Brightness for Business/Education Environments
Thanks to the latest LED technology, the LS560WH achieves a major brightness breakthrough to 3,000 ANSI Lumens. With extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.

Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology, covering wide color gamut, elevating your presentation with a true-to-life color experience.

Big Screen Fits for Small Spaces
The LS560WH's 0.49 short throw projection gives you 100” large screen from only 1.1m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

Effortless Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or floors.

Centralized Control for Management Efficiency
The LS560WH is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic vController, an easy-to-use network management tool.

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.

USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

Non-stop 24/7 Operation
The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.

Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.

Projector
Projector brightness	3000 ANSI lumens
Projection technology	LED
Projector native resolution	WXGA (1200x800)
Screen size compatibility	60 - 300"
Native aspect ratio	3:2
Projection distance	24.8 - 62.2" (0.63 - 1.58 m)
Contrast ratio (typical)	3000000:1
Number of colours	1.07 billion colors
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Keystone correction, vertical	-40 - 40°
Keystone correction, horizontal	-40 - 40°
Smart projector	No
Light source
Light source type	LED
Service life of light source	30000 h
Lens system
Zoom ratio	0.8 - 2.0:1
Zoom capability	Yes
Focus	Manual
Throw ratio	0.49
Offset	110%
Zoom type	Manual
Video
Analog signal format system	Not supported
Full HD	No
3D	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)

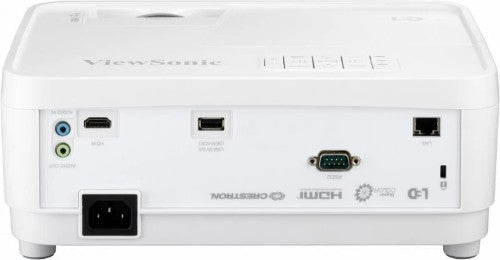

Ports & interfaces
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI connector type	Full-size
USB 2.0 ports quantity	1
Audio (L/R) in	1
Audio (L/R) out	1
Serial interface type	RS-232
HDMI version	1.4
DVI port	No
Service port type	USB Type-A
Network
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Storage
Card reader integrated	No
Features
Interactive	No
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Noise level	34 dB
Noise level (economic mode)	28 dB
Number of OSD languages	24
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	2 W
Design
Product colour	White
Product type	Standard throw projector
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	229 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	11.5" (293 mm)
Depth	8.7" (221 mm)
Height	4.53" (115 mm)
Weight	6.28 lbs (2.85 kg)
Package width	14.4" (365 mm)
Package depth	11.8" (300 mm)
Package height	7.4" (188 mm)
Package weight	8.71 lbs (3.95 kg)
Packaging content
Remote control included	Yes
Cables included	AC
