Out of stock
For use in data centers supporting enterprises that require 24/7 accessibility to cloud services and applications. Designed for read-intensive application workloads where high performance, reliable throughput, data integrity and data loss protection is at the forefront.

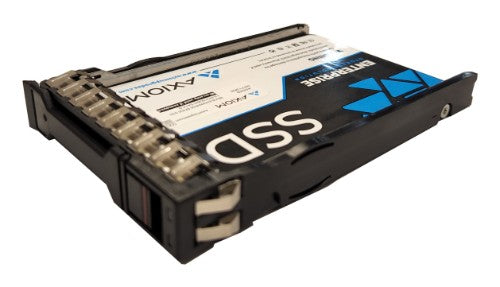

Axiom SSDEV20HV3T8-AX internal solid state drive 3.84 TB 2.5" Serial ATA V-NAND
Part number
SSDEV20HV3T8-AX
$1,450.66 CAD
3.84 TB, V-NAND, SATA, 6 Gbps, 2.5", Hot-Swap
Key Features
- Built with 3-bit MLC V-NAND Flash technology
- Strong IOPS consistency – low I/O latency and high I/O throughput performance
- Enterprise-grade power-loss protection and power failure protection
- Temperature sensor and monitoring
- Low power consumption
- Enhanced end-to-end data protection
- Innovative flash endurance and data integrity protection via 32-cell vertical NAND architecture
Description
Optimized for latency-sensitive applications and mixed-use workloads the EV200 hot-swap solid state drive (SSD) utilizes V-NAND technology to deliver exceptional around the clock performance for growing data center demands. The SATA interface enables storage capacity to expand while utilizing the existing IT infrastructure – achieving the optimum price/performance for converged and virtualized architectures.For use in data centers supporting enterprises that require 24/7 accessibility to cloud services and applications. Designed for read-intensive application workloads where high performance, reliable throughput, data integrity and data loss protection is at the forefront.
Specifications
| Features | |
|---|---|
| Interface | Serial ATA |
| Component for | Printer |
| SSD capacity | 3.84 TB |
| Memory type | V-NAND |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 97000 IOPS |
| Random write (4KB) | 24000 IOPS |
| Security algorithms | 256-bit AES |
| NVMe | No |
| Sequential write speed (AS SSD) | 480 MB/s |
| Sequential read speed (AS SSD) | 520 MB/s |
| Hot-swap | Yes |
| Hardware encryption | Yes |
| End-to-End Data Protection | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 5466 |
| Certification | RoHS |
| SSD form factor | 2.5" |
| Compatible products | HP-Compaq - ProLiant DL360 Gen10 (G10) Plus |
| Power | |
| Power consumption (idle) | 1.3 W |
| Operating voltage | 5 V |
| Performance | |
| Interface | Serial ATA |
| Component for | Printer |
| SSD capacity | 3.84 TB |
| Memory type | V-NAND |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 97000 IOPS |
| Random write (4KB) | 24000 IOPS |
| Security algorithms | 256-bit AES |
| NVMe | No |
| Sequential write speed (AS SSD) | 480 MB/s |
| Sequential read speed (AS SSD) | 520 MB/s |
| Hot-swap | Yes |
| Hardware encryption | Yes |
| End-to-End Data Protection | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 5466 |
| Compatible products | HP-Compaq - ProLiant DL360 Gen10 (G10) Plus |
| Design | |
| Component for | Printer |
| Certification | RoHS |
| SSD form factor | 2.5" |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
| Maximum operating altitude | 120000" (3048 m) |
| Technical details | |
| Interface | Serial ATA |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
| Maximum operating altitude | 120000" (3048 m) |
| SSD form factor | 2.5" |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Other features | |
| Compatible products | HP-Compaq - ProLiant DL360 Gen10 (G10) Plus |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
