Kingston Technology KSM48R40BD4TMM-64HMR memory module 64 GB 1 x 64 GB DDR5 ECC
Part number
KSM48R40BD4TMM-64HMR
485.10 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.023 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free

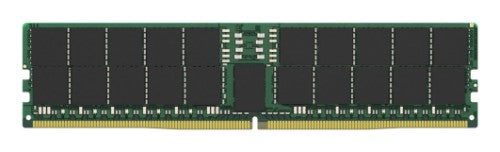

Kingston's KSM48R40BD4TMM-64HMR is a 8G x 80-bit (64GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Memory | |
|---|---|
| Buffered memory type | Registered (buffered) |
| Internal memory | 64 GB |
| Internal memory type | DDR5 |
| Component for | PC/server |
| ECC | Yes |
| Memory layout (modules x size) | 1 x 64 GB |
| Memory form factor | 288-pin DIMM |
| CAS latency | 40 |
| Memory voltage | 1.1 V |
| Lead plating | Gold |
| Module configuration | 8192M x 80 |
| SPD profile | Yes |
| Memory ranking | 2 |
| Features | |
| On-Die ECC | Yes |
| Buffered memory type | Registered (buffered) |
| Internal memory | 64 GB |
| Internal memory type | DDR5 |
| Component for | PC/server |
| ECC | Yes |
| Memory layout (modules x size) | 1 x 64 GB |
| Memory form factor | 288-pin DIMM |
| CAS latency | 40 |
| Memory voltage | 1.1 V |
| Lead plating | Gold |
| Module configuration | 8192M x 80 |
| SPD profile | Yes |
| Memory ranking | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Technical details | |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 5.25" (133.3 mm) |
| Height | 1.23" (31.2 mm) |
