StarTech.com SV231DPDDUA KVM switch Black
512.44 CAD
Skip to product information
3 left
StarTech.com SV231DPDDUA KVM switch Black
Part number
SV231DPDDUA
512.44 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.186 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| USB connector type | USB Type-A |
| Number of microphone inputs | 3 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DisplayPorts quantity | 6 |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Console USB ports quantity | 2 |

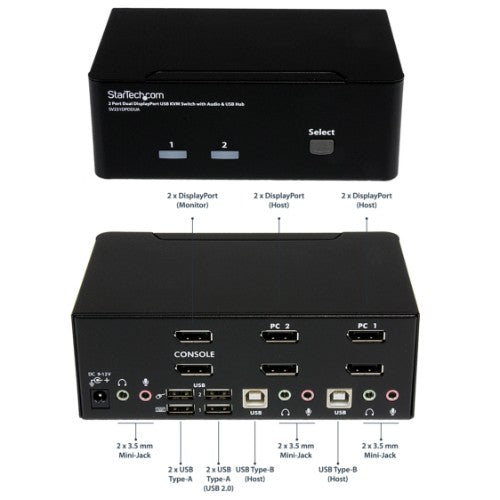

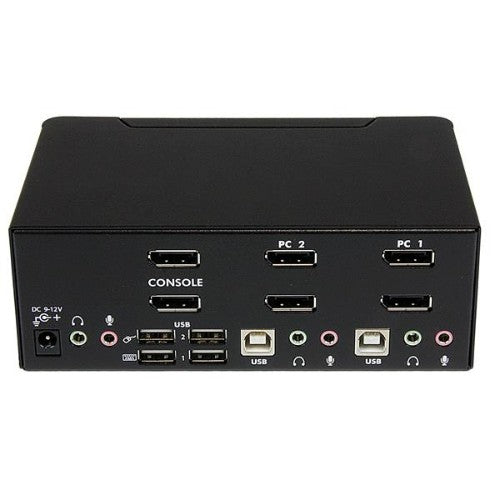

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Hot-Plug support | Yes |
| Maximum resolution | 3840 x 2400 pixels |
| Number of users | 1 user(s) |
| DDC2B support | Yes |
| Daisy chain | No |
| Audio channels | 7.1 |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH, TAA |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Output voltage | 12 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, UK, US |
| Input voltage | 110 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2400 pixels |
| Technical details | |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |

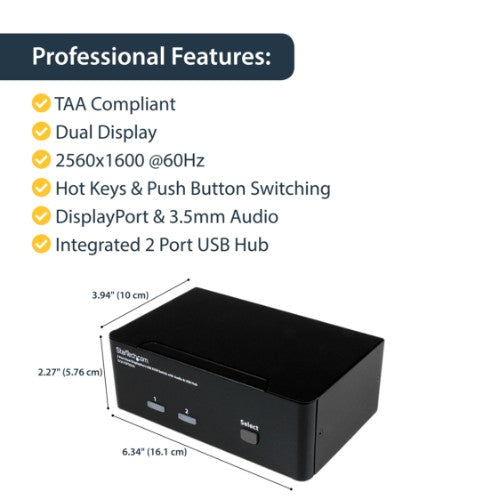

| Weight & dimensions | |
| Width | 6.34" (161 mm) |
| Depth | 3.94" (100 mm) |
| Height | 2.26" (57.5 mm) |
| Weight | 25.9 oz (734 g) |
| Package width | 9.8" (249 mm) |
| Package depth | 7.36" (187 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 2.62 lbs (1.19 kg) |
| Packaging data | |
| Package width | 9.8" (249 mm) |
| Package depth | 7.36" (187 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 2.62 lbs (1.19 kg) |

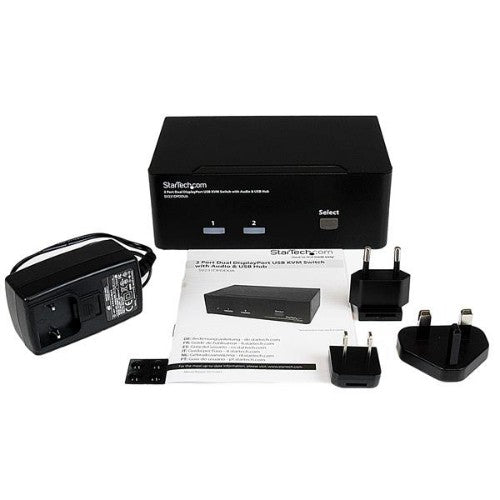

| Packaging content | |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, REACH, TAA |
| Other features | |
| IP control | No |
| Audio support | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
