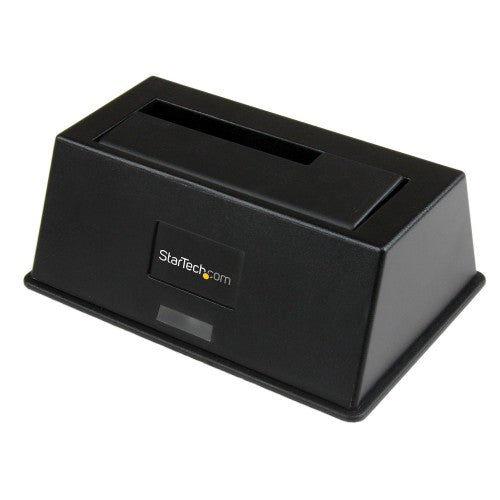

StarTech.com SDOCKU33BV storage drive docking station USB 3.2 Gen 1 (3.1 Gen 1) Type-B
67.07 CAD
Skip to product information
4 left
StarTech.com SDOCKU33BV storage drive docking station USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Part number
SDOCKU33BV
67.07 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.694 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

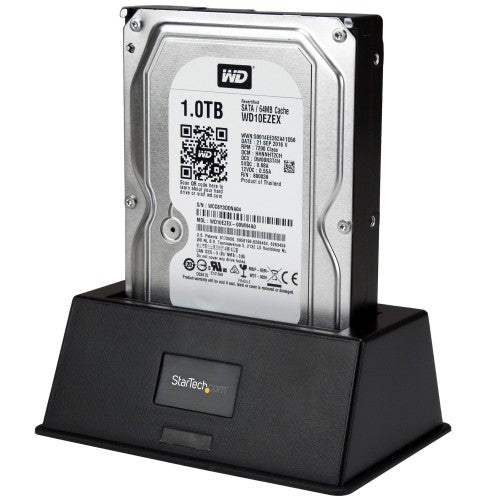

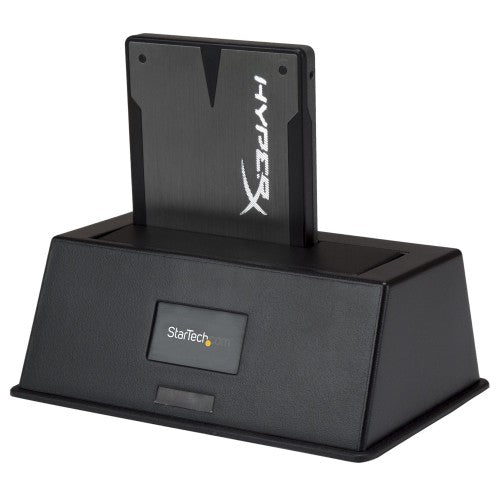

- HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 1 (5 Gbps)
- DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs and SSDs of any capacity; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately
- PERFORMANCE: Toolless top-loading design enables quick hot-swapping of idle drives; Backwards compatible with previous SATA & USB versions; No software / drivers required
- SPECS: Single-Bay Hard Drive Dock; SATA I/II/III; USB 3.2 Gen 1 (5 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay; Power and Activity LED Indicators; Includes 3ft USB 3.2 (5 Gbps) Type-A Cable and Universal Power Adapter
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock
The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.
With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.
With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
| Hard drive | |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Ports & interfaces | |

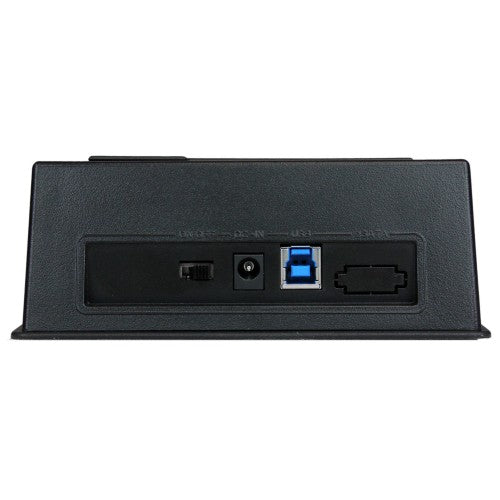

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| DC-in jack | Yes |
| Technical details | |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 6 Gbit/s |
| Plug and Play | Yes |
| UASP support | Yes |
| Package width | 6.34" (161 mm) |
| Package height | 3.7" (94 mm) |
| On/off switch | Yes |
| Chipset | ASMedia - ASM1053 - 6G |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Features | |
| Maximum data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Plug and Play | Yes |
| UASP support | Yes |
| On/off switch | Yes |
| Chipset | ASMedia - ASM1053 - 6G |
| Cooling | |
| Built-in fan | No |
| Power | |
| AC input voltage | 100-240 V |
| Output voltage | 12 V |
| Weight & dimensions | |
| Weight | 11.2 oz (318 g) |
| Packaging data | |
| Package depth | 6.69" (170 mm) |
| Package dimensions (WxDxH) | 3.62 x 6.3 x 6.69" (92 x 160 x 170 mm) |
| Package weight | 24.8 oz (704 g) |
| Package width | 6.34" (161 mm) |
| Package height | 3.7" (94 mm) |

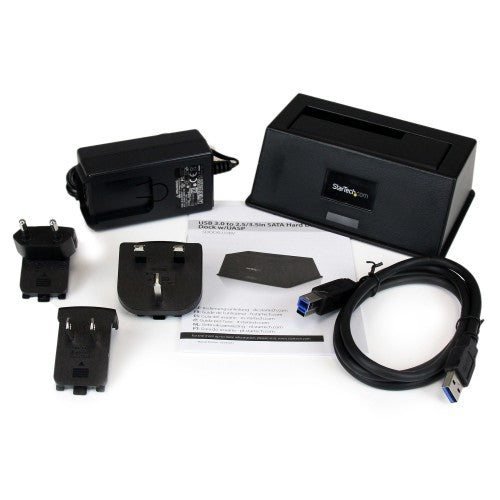

| Packaging content | |
| Included power plug types | EU, NA, UK |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Indication | |
| LED indicators | Activity, Power |
| Ethernet LAN features | |
| LED indicators | Activity, Power |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Chipset | ASMedia - ASM1053 - 6G |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 7.36" (187 mm) |
| Master (outer) case length | 18.7" (476 mm) |
| Master (outer) case height | 15.2" (387 mm) |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 84733080 |
