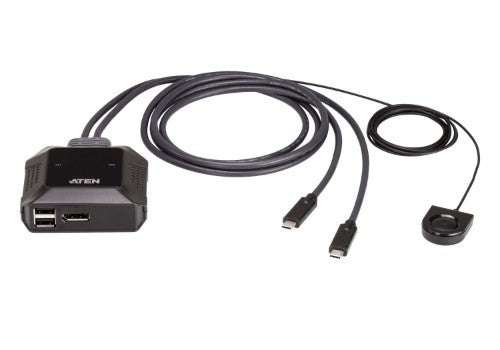

ATEN US3312 2-Port 4K DisplayPort USB-C Cable KVM Switch with Remote Port Selector is developed for easy control and fast switch between two USB-C device sources from a single set of keyboard, mouse, and monitor. With cables coming already mounted on to it, the USB bus-powered US3312 supports two USB and one DisplayPort downstream ports, along with USB peripheral sharing capability. Containing a hook and an external remote port selector, the switch box can be placed anywhere to keep the workstation tidy while allowing users to instantly swap peripherals between the connected PCs and ensuring uninterrupted data transmission from a single user station. It supports resolutions up to True 4K (4096 x 2160 @ 60 Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD quality. The US3312 is a plug-and-play device that not only enhances the efficiency of multi-tasking, but also saves desktop space.

The compact US3312 is ideal for meeting hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline the most complex workflows by simply pushing a button to quickly switch in 3 seconds between your tasks on two USB-C mobile devices, such as a laptop, tablet, MacBook, iPad, and even Mac mini, from a DisplayPort and USB console. The US3312 magically de-clutters your desktop workspace for a neat and space-efficient new look, and brings in vivid 4K viewing quality to enhance your work performance.

Extreme Space Efficient Desktop Setup

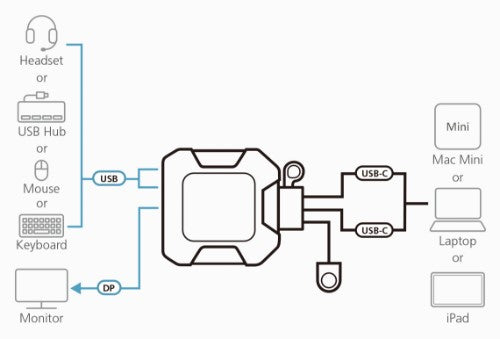

The compact US3312 enables plug-n-play USB-C connection to two mobile devices, such as a laptop, Mac mini, and a tablet without going through a docking station, which is a useful, budget-friendly option to expand your desktop workspace in a neat and tidy way. You can even hook US3312 under a desk for a cable-free and clean desktop.

Exceptional AV Performance in Vivid 4K
The US3312 empowers your desktop operations with visual enhancement thanks to 4K DCI compliance.

Always Correct Resolutions and Display Configurations
ATEN's patented Video DynaSync ™ ensures correct resolutions and display configurations are maintained when switching between ports under all operating systems, while also eliminating boot-up display problems and ensuring smooth desktop operation.

Smooth Cross-Platform Integration with 3-sec. Fast Switching
The US3312 enables the integration of different computer systems (Windows, MacOS, and Linux) that are accessible over just one KVM console. With exclusive ATEN technology, switching between two systems takes just three seconds, making your workflow more efficient than ever before.

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB2.0 peripheral devices for data-intensive desktop work requirements.

Plug in. Power on.
The US3312 supports USB hot-plugging and is bus powered by connected KVM sources via USB ports.

Essential Applications
The US3312 cable KVM Switch is perfectly suited to time-critical and multitasking operations in the following scenarios:
- Content Creation
- WFH
- Office

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
USB connector type	USB Type-C
Mouse port type	USB
Video port type	DisplayPort
DisplayPort version	1.2
Console USB ports quantity	2

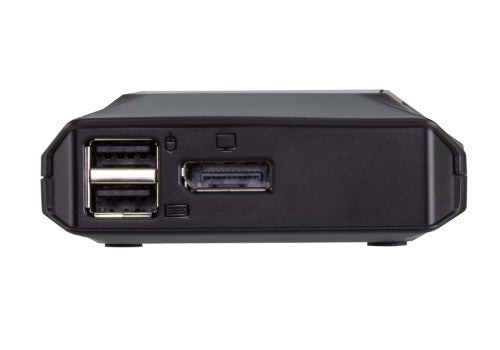

Console ports	DisplayPort, USB A
Console DisplayPorts ports quantity	1
Cable length	47.2" (1.2 m)
Performance
HD type	4K DCI
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Design
Product colour	Black
Cable length	47.2" (1.2 m)
Rack mounting	No
Wired remote switch	Yes
Remote switch cable length	70.9" (1.8 m)
LED indicators	Yes
Housing material	Plastic
Country of origin	China
Display
Built-in display	No
Power
Power source	USB
Power consumption (typical)	0.74 W
Input voltage	5 V
Video
HD type	4K DCI
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Features
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	3.31" (84.2 mm)
Depth	3.28" (83.4 mm)
Height	1.18" (29.9 mm)
Weight	6.7 oz (190 g)
Package weight	9.52 oz (270 g)
Packaging data
Package weight	9.52 oz (270 g)
Logistics data
Country of origin	China
