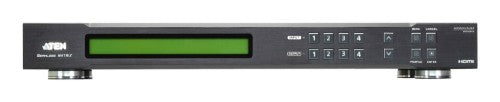

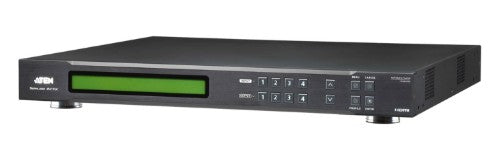

The 4 x 4 HDMI Matrix Switch allows any of the 4 HDMI input signals to be routed to any of the 4 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device, such as through the front panel pushbuttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, the VM5404HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled. Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located.

As the ultimate video wall solution, the FPGA-based VM5404HA features ATEN's exclusive Seamless Switch technology, ensuring uninterrupted video streams, real-time control, and stable signal transmission. The built-in scaler automatically scales any input video feed to match the native resolution of the output display for the best video and picture quality. To prevent screen tearing, the VM5404HA adopts FrameSync technology to synchronize the scaler output frame rates to the input signal frame rates, guaranteeing stunning tear-free video walls.

Speaking of audio functionality, the Matrix Switch features audio de-embedding, enabling digital audio from any HDMI input to be assigned to the stereo output for added flexibility of installation. The VM5404HA is an HDMI video routing solution ideal for scenarios where customizable, real-time AV signal transportation from multiple sources to one or more destinations is required, from control centers, server rooms, to any kind of video wall applications.

Features
Product type	AV matrix switcher
HDCP	Yes
HDCP version	1.3
3D	Yes
Firmware upgradeable	Yes
Extended display identification data (EDID)	Yes
Data transfer rate	6.75 Gbit/s
Maximum pixel clock	225 MHz
Supported resolutions	720 x 480p 60 Hz (4:3) / (16:9) 640 x 480 @ 60/72/75 Hz 1280 x 720p 60 Hz (16:9) 800 x 600 @ 56/60/72/75 Hz 1920 x 1080i 60 Hz (16:9) 1024 x 768 @ 60/70/75 Hz 1920 x 1080p 60 Hz (16:9) 1280 x 800 @ 60 Hz 720 x 576p 50 Hz (4:3) / (16:9) 1280 x 1024 @ 60/75 Hz  1280x720p 50Hz (16:9) 1366 x 768 @ 60 Hz 1920 x 1080i 50 Hz (16:9) 1400 x 1050 @ 60 Hz 1440 x 900 @ 60 Hz 1600 x 1200 @ 60 Hz 1680 x 1050 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1200 @ 60 Hz (Reduced Blanking) 640 x 480p 60 Hz (4:3)
Maximum resolution	1920 x 1080 pixels
Design
Housing material	Metal
Rack mounting	Yes
Rack capacity	1U
Housing colour	Black
Display
Built-in display	No

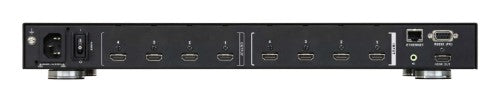

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
RS-232 ports	1
HDMI input ports quantity	4
HDMI output ports quantity	5
Audio (L/R) out	1
Power
Power consumption (max)	35.7 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Power consumption (typical)	34.9 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Heat dissipation	164 BTU/h
Heat dissipation (max)	167 BTU/h
Logistics data
Country of origin	Taiwan
Weight & dimensions
Width	14.9" (378.2 mm)
Depth	17" (432.4 mm)
Height	1.73" (44 mm)
Weight	11.3 lbs (5.12 kg)
Packaging content
Cables included	AC
Rack mount kit	Yes
Quick start guide	Yes
