EnGenius EPA5090HBT PoE adapter 2.5 Gigabit Ethernet 0.5 V
119.41 CAD
Skip to product information
Out of stock
EnGenius EPA5090HBT PoE adapter 2.5 Gigabit Ethernet 0.5 V
Part number
EPA5090HBT
119.41 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
7.53 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- IEEE 802.3bt Type 3 & 4 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE while future proofing network with up to 2.5Gb bandwidth
- Supports 10/100/1000 Mbps and 2.5 Gbps applications
- Output power up to 90W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE of up to 90W with full power capabilities
- Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation

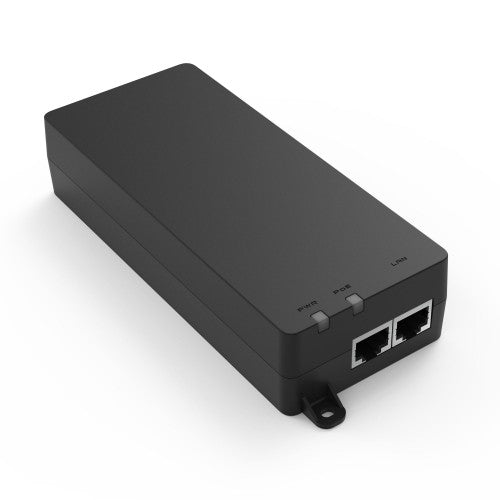

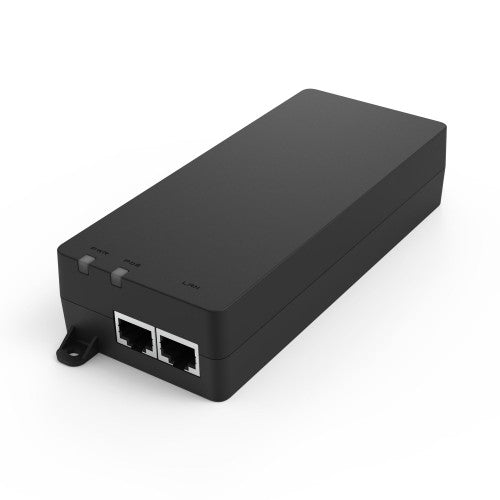

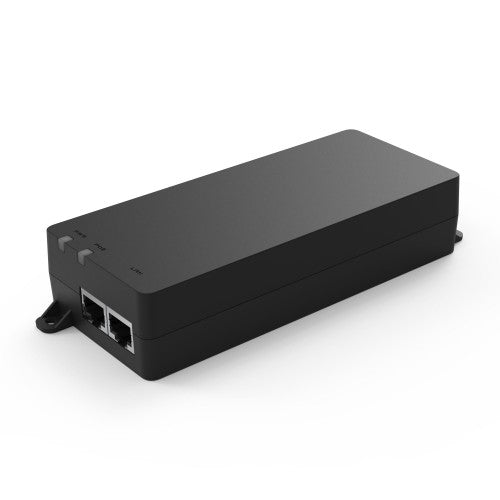

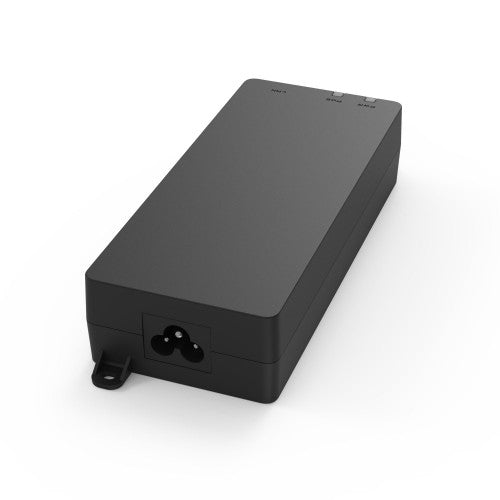

The EnGenius EPA5090HBT PoE Injector delivers 90-watts of power and 2.5Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Easy to install | Yes |
| Plug and Play | Yes |
| Surge protection | Yes |
| Product colour | Black |
| Pin assignment & polarity | Pin 4 (Vdc+), Pin 5 (Vdc+), Pin 7 (Vdc-), Pin 8 (Vdc-) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Power protection features | Over current, Over voltage, Short circuit |
| LED indicators | PoE, Power |
| Certification | IEC 62328-1: 2014, UL 62328-1, FCC Subpart 15 Class B, EN 55032: 2012 / AC: 2013, EN 55024: 2010 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output power | 90 W |
| Power over Ethernet (PoE) voltage | 0.5 V |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Surge protection voltage | 4 kV |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Weight & dimensions | |
| Package weight | 16.6 oz (470 g) |
| Weight | 12.5 oz (354 g) |
| Package width | 3.54" (90 mm) |
| Package length | 7.01" (17.8 cm) |
| Package height | 2.83" (72 mm) |
| Width | 2.56" (65 mm) |
| Depth | 5.91" (150 mm) |
| Height | 1.34" (34 mm) |
| Packaging data | |
| Package weight | 16.6 oz (470 g) |
| Package width | 3.54" (90 mm) |
| Package length | 7.01" (17.8 cm) |
| Package height | 2.83" (72 mm) |
| Packaging content | |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
