EnGenius EPA5060GBT PoE adapter Gigabit Ethernet 54 V
52.24 CAD
Skip to product information
Out of stock
EnGenius EPA5060GBT PoE adapter Gigabit Ethernet 54 V
Part number
EPA5060GBT
52.24 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.198 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Gigabit Ethernet In & Out Ports for High-Speed Devices
- Delivers both data and power to PoE-compatible devices
- Optimal port design for easy mounting/positioning
- Extends power to unwired areas up to 328-ft./100m
- Disconnect, short-circuit & surge protection assure secure, reliable connections
- Sends up to 60W of output power for connecting APs, IP cameras, VoIP phones & more
- Mounts to walls or ceilings with included hardware

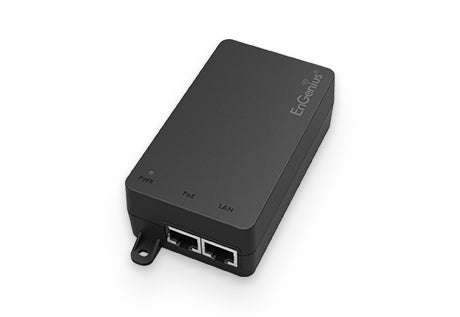

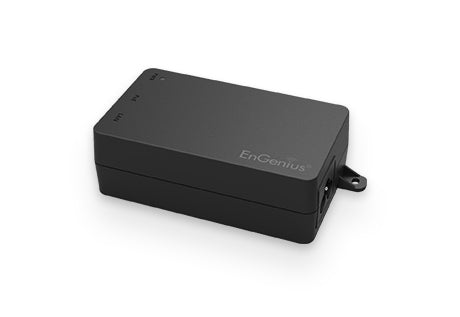

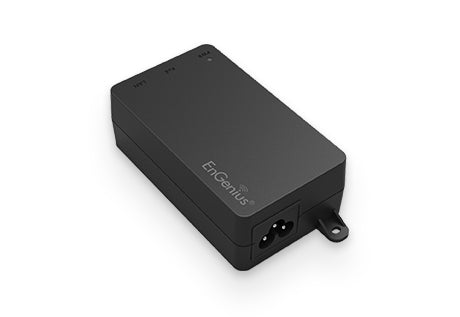

The EPA5060GBT IEEE 802.3bt standard Power-over-Ethernet adapter supports high-speed data and up to 60 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 100 meters away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Wall mountable | Yes |
| Product colour | Black |
| Pin assignment & polarity | Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) |
| Power protection features | Over current, Over voltage, Short circuit |
| LED indicators | Power |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Power | |
| Output power | 60 W |
| Power over Ethernet (PoE) voltage | 54 V |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 1.12A @ 120V AC, 0.75A @ 240V AC |
| Surge protection voltage | 4 kV |
| Certificates | |
| Compliance certificates | UL, Federal Communications Commission (FCC), CB, CE |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Weight | 6.98 oz (198 g) |
| Width | 3.94" (100 mm) |
| Depth | 2.3" (58.4 mm) |
| Height | 1.31" (33.4 mm) |
| Technical details | |
| Warranty period | 1 year(s) |
| Compliance certificates | UL, Federal Communications Commission (FCC), CB, CE |
| Logistics data | |
| Warranty period | 1 year(s) |
