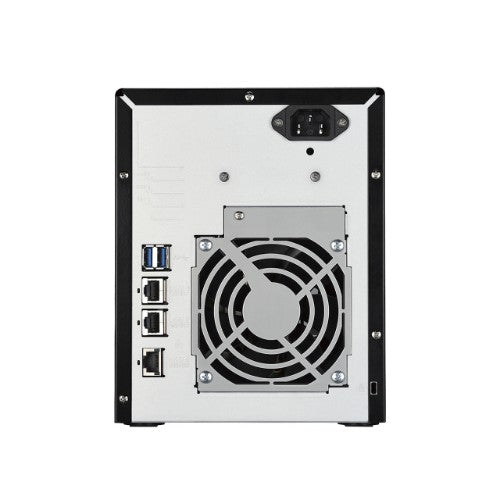

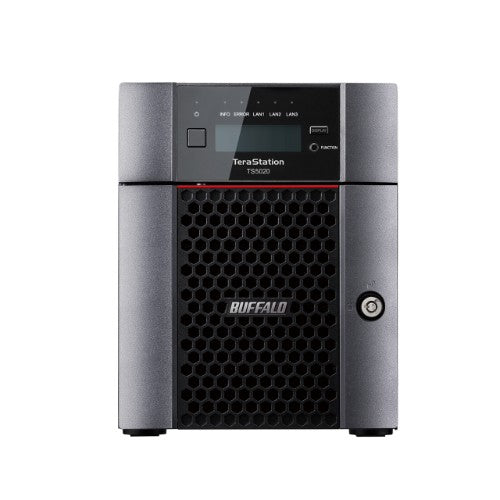

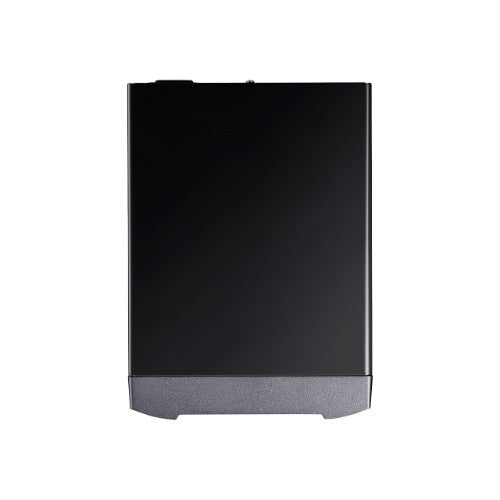

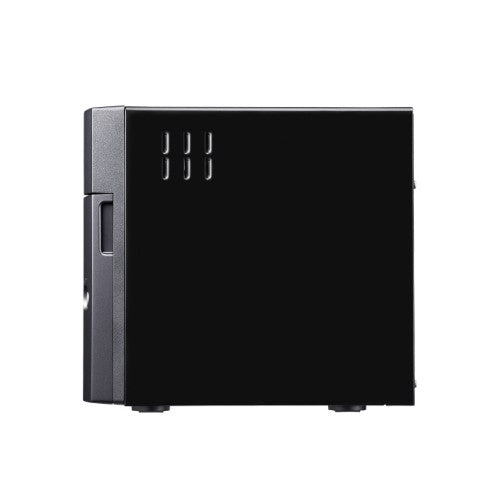

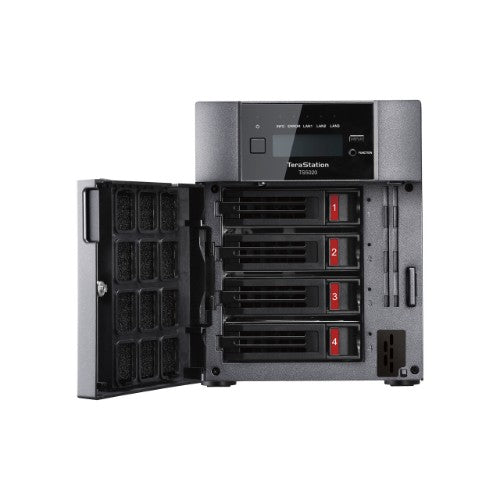

Buffalo TeraStation TS5420DN3204 NAS/storage server Desktop Ethernet LAN Black AL524
Part number
TS5420DN3204
$2,380.15 CAD
32TB (4X8TB) RAID 1/5/6 ISCSI 10GB
Description
High-Performance, High-Security Storage Solution - Hard Drives Included The TeraStation 5020 is Buffalo's business-class network attached storage (NAS) product purpose-built as a secure, high-performance storage solution optimized for high workloads. Available in high-capacity desktop form factors, the TS5020 is an evolution of Buffalo's acclaimed TeraStation 5010 and 6000 Series devices, offering advanced productivity and security features such as snapshot technology for near-instantaneous data backup and recovery, VMware and Hyper-V certifications for virtualization solutions, the cutting-edge Btrfs fiile system for smoother high-load data operations, and robust data backup and security options. The TS5020 is optimized for advanced data storage and file server operations so you can store your data with peace of mind.Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 32 TB |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 4 |
| Supported storage drive types | HDD |
| Number of storage drives supported | 4 |
| Storage drive capacity | 8000 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Processor | |
| Processor manufacturer | Annapurna Labs |
| Processor family | Annapurna Labs |
| Processor model | AL524 |
| Processor frequency | 2.04 GHz |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| iSCSI support | Yes |
| Supported network protocols | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Design | |
| Chassis type | Desktop |
| Product colour | Black |
| Performance | |
| Type | NAS |
| Hot spare | Yes |
| Backup function | Yes |
| Backup features | iSCSI LUN |
| Security algorithms | SNMP |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Snapshot | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Power | |
| Power consumption (max) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 6.69" (170 mm) |
| Depth | 9.06" (230 mm) |
| Height | 8.46" (215 mm) |
| Weight | 12.4 lbs (5.63 kg) |
| Package width | 12.2" (310 mm) |
| Package depth | 14.1" (358 mm) |
| Package height | 14.3" (362 mm) |
| Package weight | 16 lbs (7.26 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
