In stock
This 4-Port HDMI Video Switch enables four HDMI sources to connect to a single HDMI input on a display.
8K 60Hz Resolution
The HDMI Switcher supports resolutions of up to 8K 60Hz. In addition, it supports lower resolutions at higher refresh rates, such as 4K 144Hz, 4K 120Hz, and 1080p 240Hz.
This Video Switch is HDMI 2.1 complaint and supports features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Consumer Electronics Control (CEC). It is backwards compatible with HDMI 2.0 (and lower) devices.
Automatic or Manual Operation
The 8K Video Switch features three options for selecting the source device. Automatic mode detects and selects the most recently activated source device or it will revert to the last active source device. Manual mode selects the desired port, using the push buttons, or with the included remote control (batteries not included). The remote control can enable or disable the automatic switching mode and it can disable the IR functionality.
Flexible Installation Options
Use the included USB wall charger and 2.5ft (78cm) USB Micro-B cable to power the unit. If a wall outlet is unavailable, the 8K Switch can be powered through a 5V 1A USB port as well.

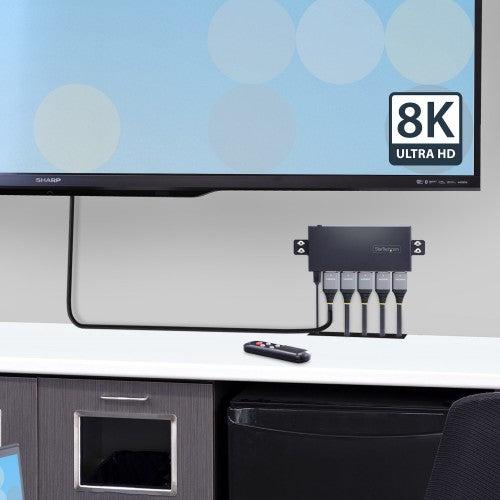

The included mounting kit and rubber feet enable versatile installation options. The metal housing enhances durability, making it suitable for installation and use in a variety of environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
The StarTech.com Advantage

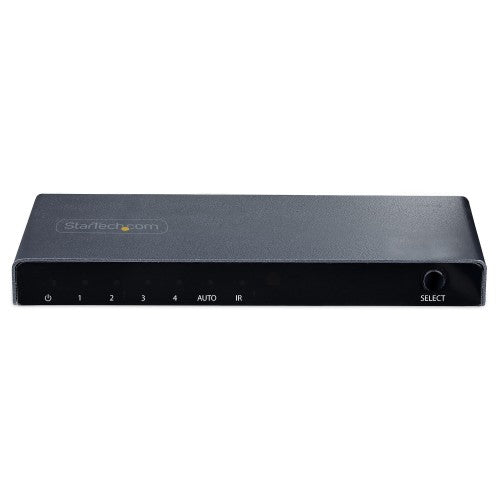

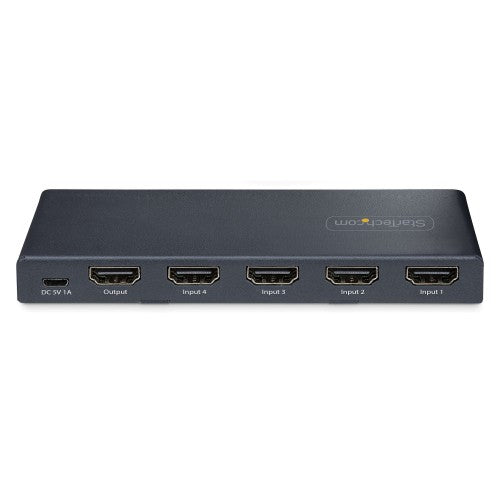

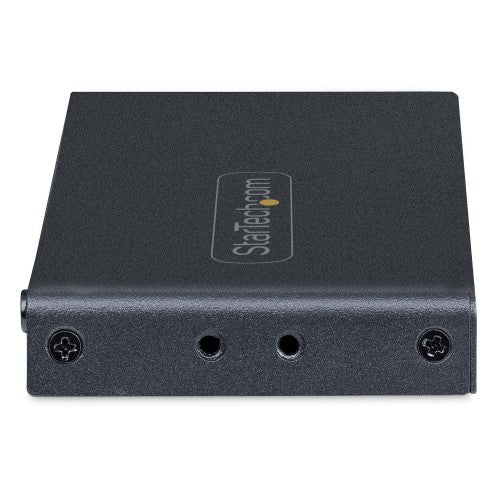

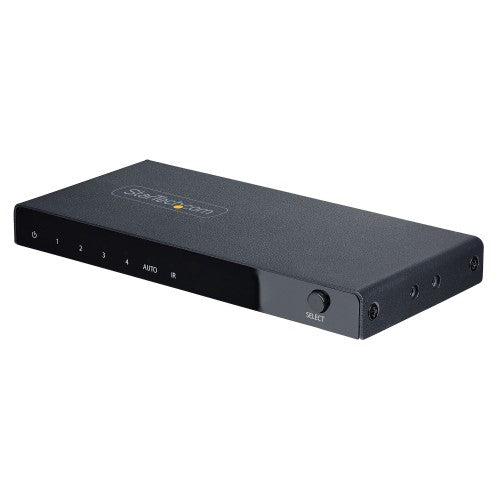

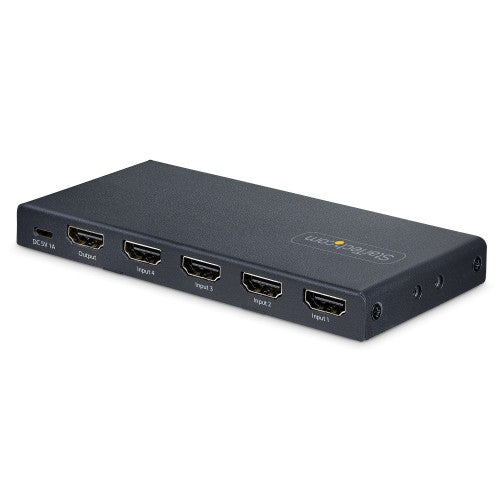

StarTech.com 4PORT-8K-HDMI-SWITCH video switch
Part number
4PORT-8K-HDMI-SWITCH
$103.57 CAD
StarTech.com 4-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K 120Hz HDR10+, 8K 60Hz UHD, HDMI Switch 4 In 1 Out, Auto/Manual Source Switching, Power Adapter and Remote Included
Description
Switch between four HDMI video sources on a single display, with support for up to 8K 60Hz resolutionsThis 4-Port HDMI Video Switch enables four HDMI sources to connect to a single HDMI input on a display.
8K 60Hz Resolution
The HDMI Switcher supports resolutions of up to 8K 60Hz. In addition, it supports lower resolutions at higher refresh rates, such as 4K 144Hz, 4K 120Hz, and 1080p 240Hz.
This Video Switch is HDMI 2.1 complaint and supports features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Consumer Electronics Control (CEC). It is backwards compatible with HDMI 2.0 (and lower) devices.
Automatic or Manual Operation
The 8K Video Switch features three options for selecting the source device. Automatic mode detects and selects the most recently activated source device or it will revert to the last active source device. Manual mode selects the desired port, using the push buttons, or with the included remote control (batteries not included). The remote control can enable or disable the automatic switching mode and it can disable the IR functionality.
Flexible Installation Options
Use the included USB wall charger and 2.5ft (78cm) USB Micro-B cable to power the unit. If a wall outlet is unavailable, the 8K Switch can be powered through a 5V 1A USB port as well.
The included mounting kit and rubber feet enable versatile installation options. The metal housing enhances durability, making it suitable for installation and use in a variety of environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 2.1 |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| USB port type | Micro-USB |
| Features | |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 4096 x 2160, 5120 x 1440, 7860 x 4320 |
| Plug and Play | Yes |
| Maximum operating distance | 196.9" (5 m) |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| External power adapter | Yes |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD |
| Bandwidth | 48 Gbit/s |
| Audio output channels | 7.1 channels |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Power | |
| AC adapter input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 2.4" (61 mm) |
| Weight | 5.29 oz (150 g) |
| Height | 0.551" (14 mm) |
| Depth | 5.35" (136 mm) |
| Packaging data | |
| Package width | 4.84" (123 mm) |
| Package weight | 14.8 oz (420 g) |
| Package height | 1.97" (50 mm) |
| Package depth | 7.05" (179 mm) |

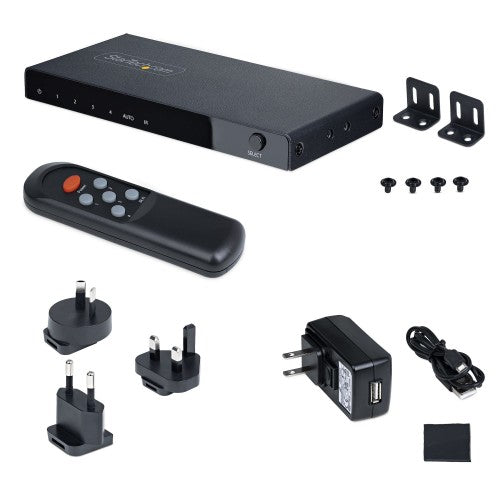

| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | USB Type-A to Micro-USB Type-B |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 15.7" (400 mm) |
| Master (outer) case length | 21.7" (550 mm) |
| Master (outer) case height | 11" (280 mm) |
