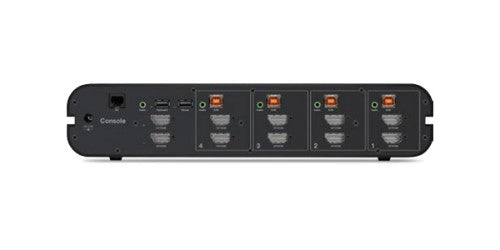

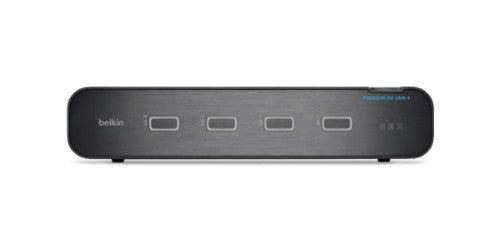

Belkin F1DN204KVM-UNN4 KVM switch Rack mounting Black
Part number
F1DN204KVM-UNN4
Regular price
$1,606.22 CAD
Sale price
$1,594.16 CAD
Universal Desktop SKVM, 4 port single head, USB, audio, DisplayPort, HDMI, 4K@60hz
Description
Created to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches are designed to meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin Secure KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen Secure KVM series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen Secure KVMs. US-manufactured and TAA-compliant, these secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions?including government, military, and healthcare applications."Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| USB connector type | USB Type-B |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| Audio connections | Yes |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| DC-in jack | Yes |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A |
| Performance | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Certification | FCC Class B UL CE RoHS ICES RCM |
| Housing material | Aluminum, Metal |
| Power | |
| Input current | 2.5 A |
| Power source | AC |
| External power adapter | Yes |
| Input voltage | 100 - 240, 12 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 12.5" (317.5 mm) |
| Depth | 6.4" (162.6 mm) |
| Height | 3.6" (91.4 mm) |
| Weight | 4.85 lbs (2.2 kg) |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | FCC Class B UL CE RoHS ICES RCM |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
