This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket

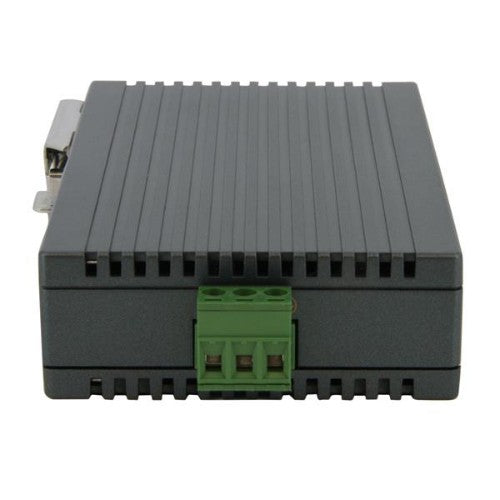

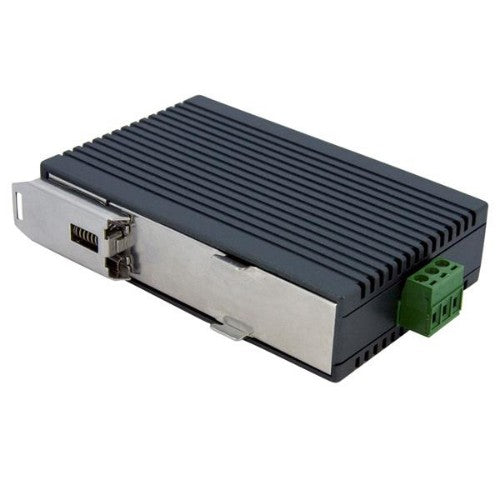

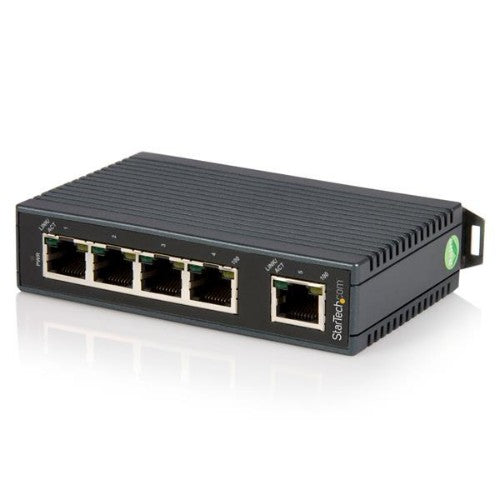

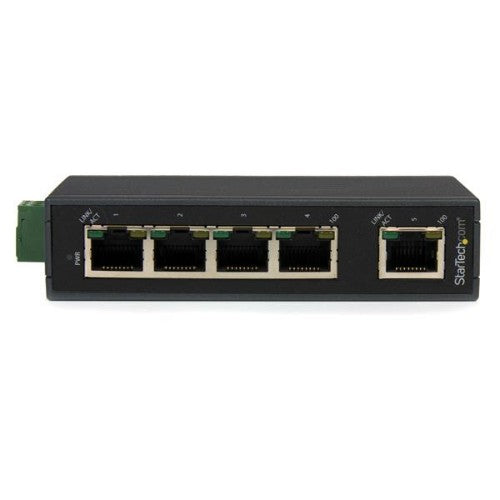

StarTech.com IES5102 network switch Unmanaged Fast Ethernet (10/100) Black
Part number
IES5102
$116.18 CAD
StarTech.com 5 Port Industrial Ethernet Switch - DIN Rail Mount - 10/100 Unmanaged Network Switch - IP30-rated - Energy-Efficient Ethernet
Description
Expand your network connectivity with this rugged unmanaged 10/100Mbps switchThis compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
Specifications
| Performance | |
|---|---|
| Auto-negotiation | Yes |
| Maximum cable length | 3937" (100 m) |
| Maximum data transfer rate | 200 Mbit/s |
| Buffer size | 56 KB |
| Mean time between failures (MTBF) | 1179133 h |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Store-and-forward | Yes |
| Jumbo frames support | No |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Housing material | Plastic |
| Certification | CE, FCC |
| Regulatory Approvals | EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea |
| Power | |
| Power consumption (max) | 2.12 W |
| Input voltage | 12 - 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 0.984" (25 mm) |
| Depth | 2.76" (70 mm) |
| Height | 4.33" (110 mm) |
| Weight | 5.22 oz (148 g) |
| Packaging data | |
| Terminal block included | Yes |
| Manual | Yes |
| Package width | 7.01" (178 mm) |
| Package depth | 7.8" (198 mm) |
| Package height | 3.11" (79 mm) |
| Package weight | 11 oz (312 g) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Input voltage | 12 - 48 V |
| Packaging content | |
| Terminal block included | Yes |
| Manual | Yes |
