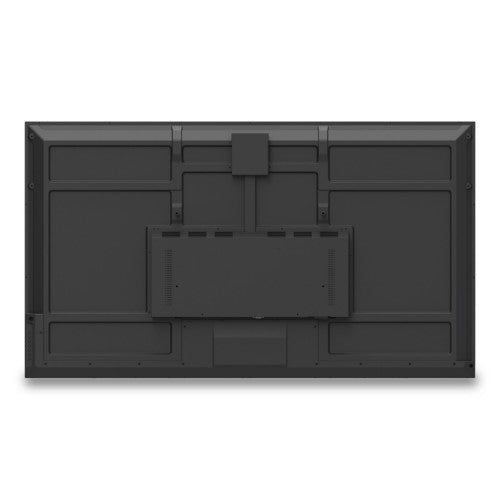

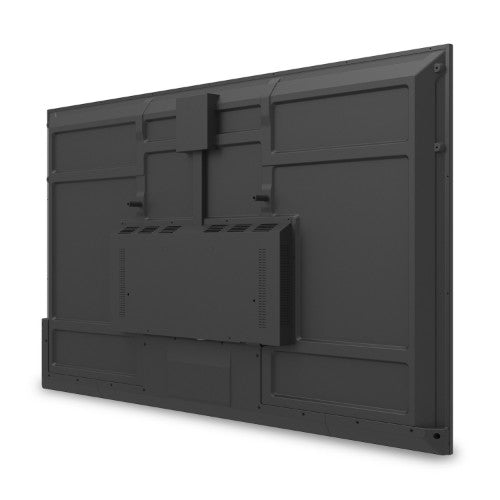

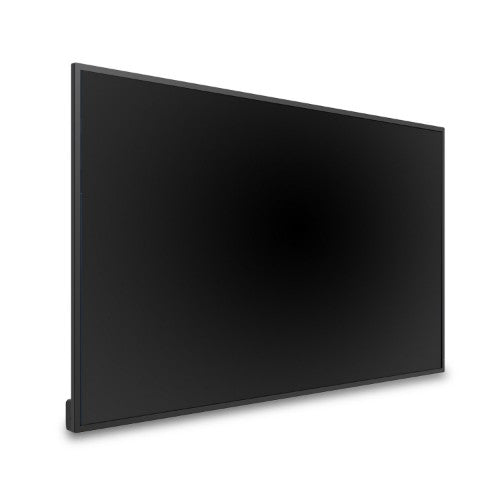

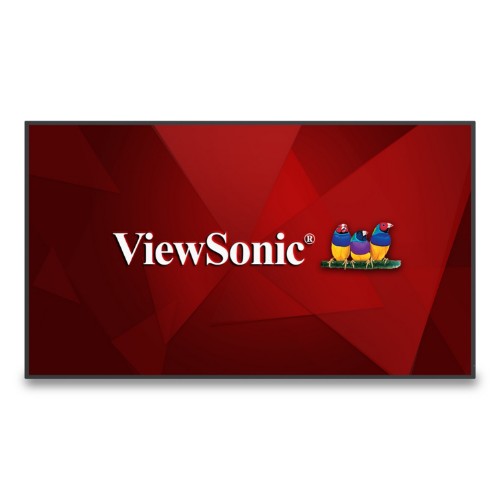

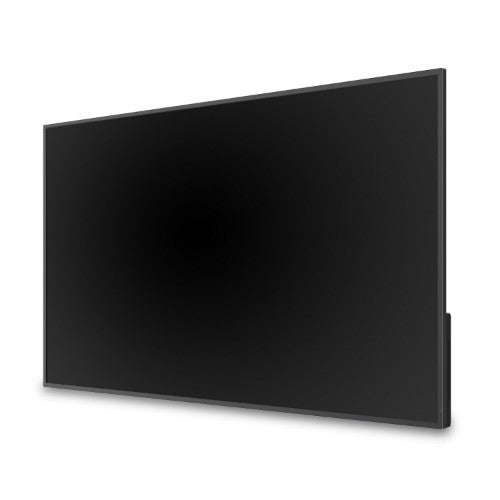

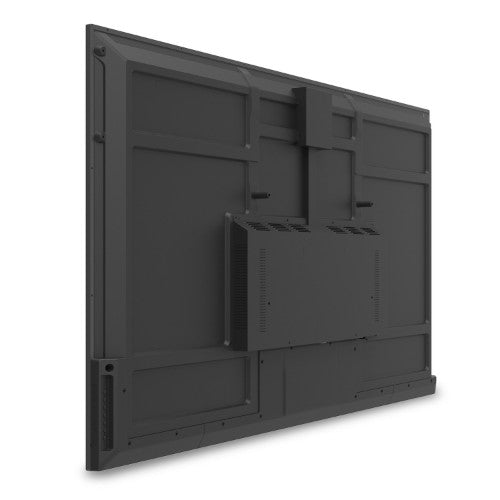

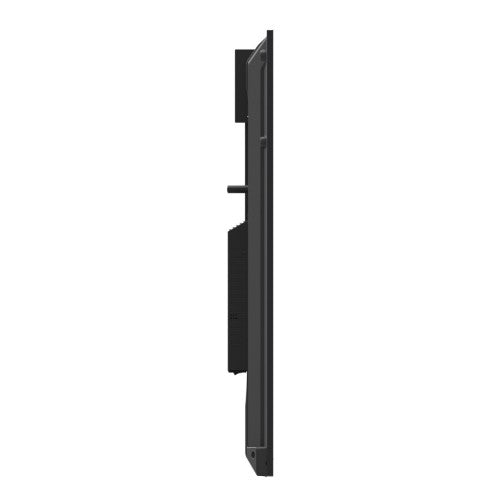

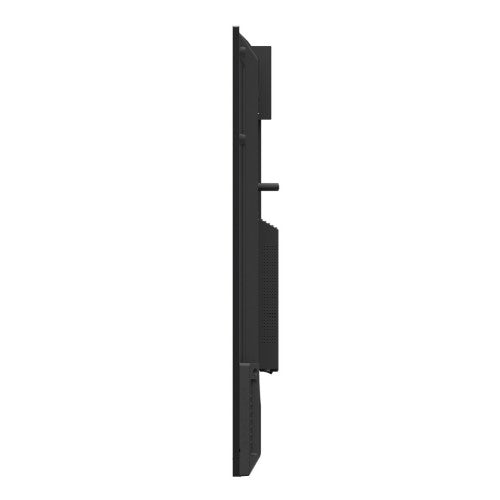

The ViewSonic® CDE5520 is a 55” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the display transforms meeting rooms into dynamic communications hubs. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. *Chrome, Android, Windows, Mac OS, and iOS compliant

Multiple Ways to Connect and Share

Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.

AV Control System Interoperability

These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.

Centralized Device Control Manager

For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.

Reliable 24/7 Operation Rating

Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.

Superb and Stunning Picture Quality

With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.

Powerful Secured Embedded Platform

This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.

Display
Display diagonal	55"
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	5000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	54.7" (139 cm)
Display number of colours	1.07 billion colors
Panel life	50000 h
Touchscreen	No
Panel type	ADS
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display technology	LCD
Anti-glare screen	Yes
Surface hardness	3H
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	3
Ethernet LAN data rates	10,100,1000 Mbit/s
HDMI version	2.1
DVI port	No
USB connector type	USB Type-A, USB Type-C
USB port	Yes
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	3
DisplayPorts quantity	0
OPS module slot	Yes
HDMI input ports quantity	2
HDMI output ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
VESA mounting	Yes
Panel mounting interface	400 x 200 mm
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	0.591" (1.5 cm)
Bezel width (side)	0.591" (1.5 cm)
Bezel width (bottom)	0.591" (1.5 cm)
Certification	cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy
Anti-glare screen	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Panel life	50000 h
Wi-Fi	No
Power
Power consumption (typical)	155 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	250 W
Computer system
Processor model	Amlogic T982
Processor frequency	1.9 GHz
Operating system installed	Android 11
Computer system	Yes
Computer system type	System on Chip (SoC)
Internal memory	4 GB
Processor cores	4
Internal storage capacity	32 GB
Built-in processor	Yes
On-board graphics card model	ARM Mali-G52
Weight & dimensions
Weight	29.5 lbs (13.4 kg)
Display width	48.5" (1233 mm)
Display depth	2.81" (71.5 mm)
Display height	27.7" (703.5 mm)
Display weight	29.5 lbs (13.4 kg)
Packaging data
Package width	52.4" (1332 mm)
Package depth	6.14" (156 mm)
Package height	32.2" (819 mm)
Package weight	43 lbs (19.5 kg)
Remote control included	Yes
Quick start guide	Yes
Mounting kit	Yes
Cables included	AC, HDMI, RS-232, USB Type-C
Batteries included	Yes
Packaging content
Remote control included	Yes
Quick start guide	Yes
Mounting kit	Yes
Cables included	AC, HDMI, RS-232, USB Type-C
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Certificates
Certification	cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Thin Client
Processor model	Amlogic T982
Processor frequency	1.9 GHz
Operating system installed	Android 11
Internal memory	4 GB
Internal storage capacity	32 GB
Logistics data
Products per master (outer) case	1 pc(s)
Pallet gross width	57.1" (145 cm)
Pallet gross length	44.9" (114 cm)
Pallet gross height	37.2" (94.5 cm)
Harmonized System (HS) code	8528521000
Features
Harmonized System (HS) code	8528521000
Technical details
USB connector type	USB Type-A, USB Type-C
Panel type	ADS
LED backlighting type	Direct-LED
OPS slot	1
Other features
USB connector type	USB Type-A, USB Type-C
Wi-Fi	No
Quick start guide	Yes
Power consumption (max)	250 W
Panel type	ADS
Display technology	LCD
Bezel width (top)	0.591" (1.5 cm)
Bezel width (side)	0.591" (1.5 cm)
Bezel width (bottom)	0.591" (1.5 cm)
OPS module slot	Yes
